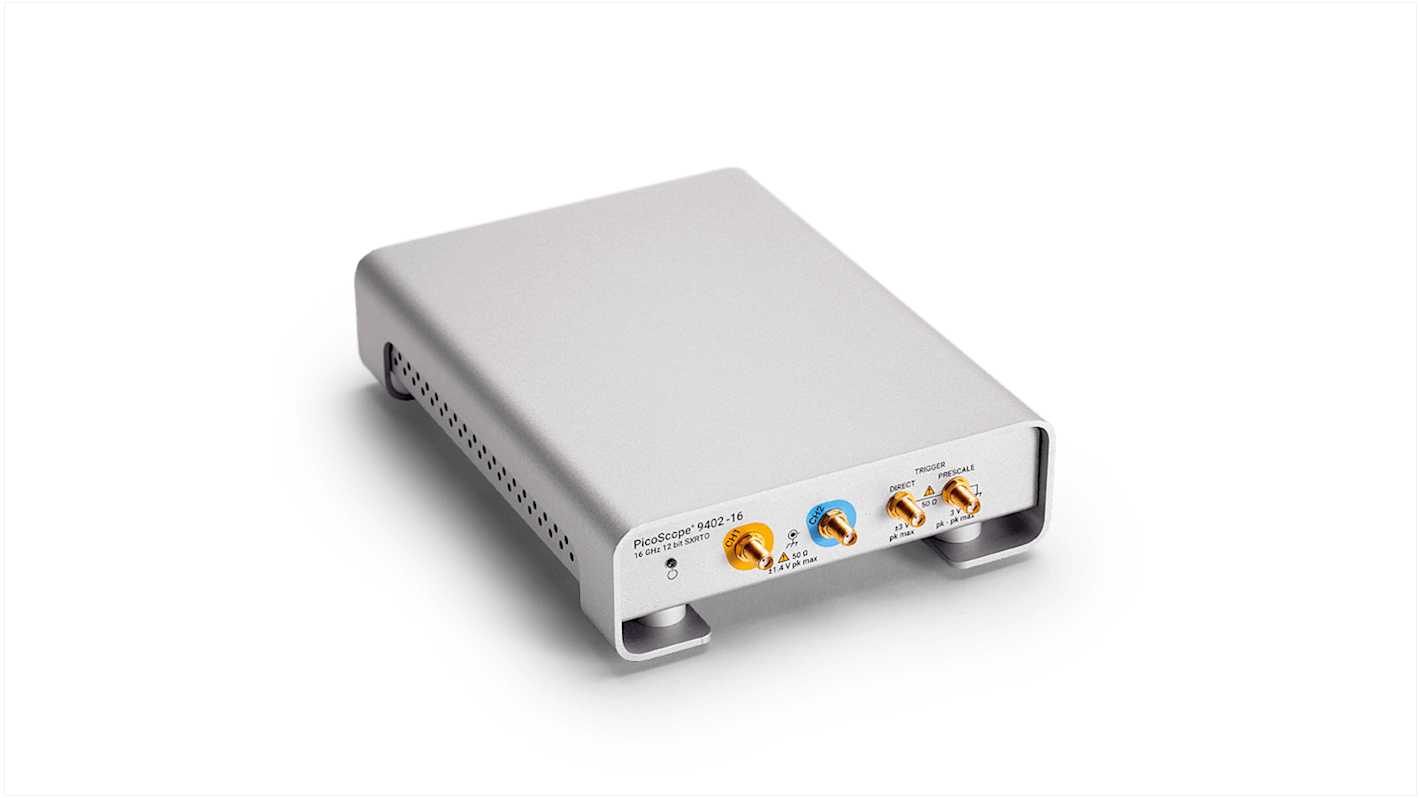

PicoScope 9000 Series, 16 GHz PC Based Oscilloscope 2-Channel

RS庫存編號:: 232-2202
製造零件編號:: PicoScope 9402-16
製造商:: Pico Technology

PicoScope 9000 Series, 16 GHz PC Based Oscilloscope 2-Channel

查看所有Oscilloscopes

小計（1 件）*

HK$188,525.70

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2027年2月04日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$188,525.70

* 參考價格

RS庫存編號:: 232-2202
製造零件編號:: PicoScope 9402-16
製造商:: Pico Technology

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	16GHz
	Number of Channels	2
	Model Number	PicoScope 9402-16
	Oscilloscope Type	PC Based
	Interface Type	USB
	Series	PicoScope 9000
	Standards/Approvals	No
	Height	55mm
	Width	160mm
	Maximum Vertical Sensitivity	250mV/div
	Power Source	AC Adapter
	Vertical Resolution	12 bit
	Rise Time	50ps
	Minimum Vertical Sensitivity	10mV/div
	Minimum Time Base	0.05ns/div
	Maximum Time Base	5s/div

	選取全部
	品牌 Pico Technology
	Product Type Oscilloscope
	Bandwidth 16GHz
	Number of Channels 2
	Model Number PicoScope 9402-16
	Oscilloscope Type PC Based
	Interface Type USB
	Series PicoScope 9000
	Standards/Approvals No
	Height 55mm
	Width 160mm
	Maximum Vertical Sensitivity 250mV/div
	Power Source AC Adapter
	Vertical Resolution 12 bit
	Rise Time 50ps
	Minimum Vertical Sensitivity 10mV/div
	Minimum Time Base 0.05ns/div
	Maximum Time Base 5s/div

COO (Country of Origin):: LT

PicoScope 9400 Series Oscilloscope, 16GHz Bandwidth, 12-bit Vertical Resolution - PicoScope 9402-16

This oscilloscope is a PC-based instrument designed for high-speed signal observation and analysis in laboratory and testbench settings. It connects via a universal Interface and is powered by an AC adaptor to operate alongside a host computer. The instrument conforms to recognised safety and EMC standards, making it suitable for integration into professional measurement environments.

Features and Benefits:

• 16GHz bandwidth enables capture of very fast signal components
• 50ps rise time allows precise transient edge characterisation
• 12-bit vertical resolution improves small-signal detail visibility
• Two-channel architecture supports differential and comparative measurements
• 20ps/div minimum time base provides fine temporal resolution

Applications

• Suitable for high-speed digital Interface debugging
• Ideal for analysing fast analogue transient responses
• Used with RF front-ends for time-domain verification
• Can be used for comparative timing measurements between channels
• Used for development of components requiring high temporal precision

What power arrangements does it require?

It operates from an AC adaptor and relies on the host PC for user Interface and data storage.

What are the instrument’s dimensional characteristics?

The unit’s enclosure measures 220 mm length, 160 mm width and 55 mm height.

What timing range can be selected for long-duration captures?

It provides a maximum time base setting of 1000 s/div for extended observation periods.

Which standards govern its safety and electromagnetic compatibility?

The device meets EN 61010-1:2010 for safety and EN 61326-1:2013 for EMC.

How is it interfaced to measurement systems?

It uses a universal Interface type to connect with a host PC for control and data transfer.
