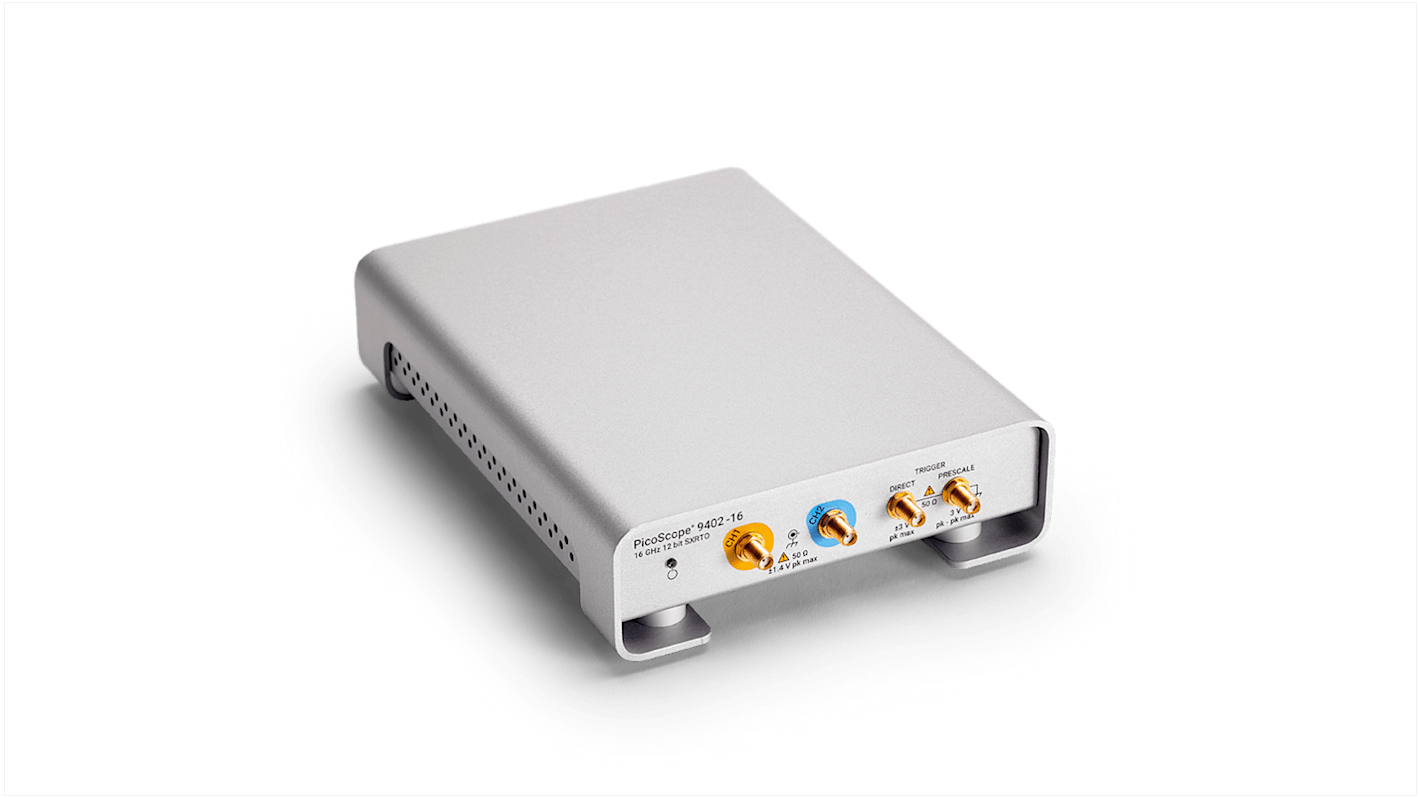

PicoScope 9000 Series, 16 GHz PC Based Oscilloscope 2-Channel

RS庫存編號:: 232-2203
製造零件編號:: PicoScope 9402-16 CDR
製造商:: Pico Technology

PicoScope 9000 Series, 16 GHz PC Based Oscilloscope 2-Channel

查看所有Oscilloscopes

小計（1 件）*

HK$200,115.90

訂單超過 HK$250.00 免費送貨

製造商存貨

準備從 2027年2月04日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$200,115.90

* 參考價格

RS庫存編號:: 232-2203
製造零件編號:: PicoScope 9402-16 CDR
製造商:: Pico Technology

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Pico Technology
	Product Type	Oscilloscope
	Bandwidth	16GHz
	Number of Channels	2
	Model Number	PicoScope 9402-16 CDR
	Oscilloscope Type	PC Based
	Interface Type	USB
	Series	PicoScope 9000
	Standards/Approvals	No
	Height	55mm
	Width	160mm
	Minimum Vertical Sensitivity	10mV/div
	Rise Time	50ps
	Maximum Vertical Sensitivity	250mV/div
	Minimum Time Base	0.05ns/div
	Maximum Time Base	5s/div
	Vertical Resolution	12 bit
	Power Source	AC Adapter

	選取全部
	品牌 Pico Technology
	Product Type Oscilloscope
	Bandwidth 16GHz
	Number of Channels 2
	Model Number PicoScope 9402-16 CDR
	Oscilloscope Type PC Based
	Interface Type USB
	Series PicoScope 9000
	Standards/Approvals No
	Height 55mm
	Width 160mm
	Minimum Vertical Sensitivity 10mV/div
	Rise Time 50ps
	Maximum Vertical Sensitivity 250mV/div
	Minimum Time Base 0.05ns/div
	Maximum Time Base 5s/div
	Vertical Resolution 12 bit
	Power Source AC Adapter

COO (Country of Origin):: LT

PicoScope 9400 Series Oscilloscope, 16GHz Bandwidth, 12-bit Vertical Resolution - PicoScope 9402-16 CDR

This oscilloscope is a Compact PC-based instrument designed for high-speed signal characterisation in laboratory and field environments. It connects via a universal Interface to a host computer and is mains powered through an AC adaptor. The unit conforms to recognised safety and EMC standards and is intended for tasks requiring fine temporal resolution and accurate vertical measurement.

Features and Benefits:

• 16GHz bandwidth delivers wide frequency capture for fast signals
• 50ps rise time enables measurement of Rapid edge transitions
• 12-bit vertical resolution increases amplitude measurement precision
• 10mV/div sensitivity allows observation of low-amplitude signals
• 20ps/div minimum timebase resolves very fine temporal detail

Applications

• Suitable for high-frequency circuit verification and debugging
• Ideal for analysing digital serial link timing characteristics
• Used with signal integrity tests on connector and cable designs
• Can be used for timing analysis in semiconductor testing
• Used for educational demonstrations of high-speed phenomena

What channel count does the instrument provide?

It offers two input channels for simultaneous dual-signal acquisition.

Which timebase range is available for sweep adjustments?

The timebase spans from 20ps/div up to 1000s/div for both fast and slow captures.

What resolution can I expect for amplitude measurements?

Vertical resolution is 12-bit, providing finer quantisation than typical 8-bit scopes.

How Compact is the instrument for bench integration?

The unit measures 220mm in length, 160mm in width and 55mm in height.

What standards does the device meet for safe operation?

It is compliant with EN 61010-1:2010 and meets EMC requirements of EN 61326-1:2013.
