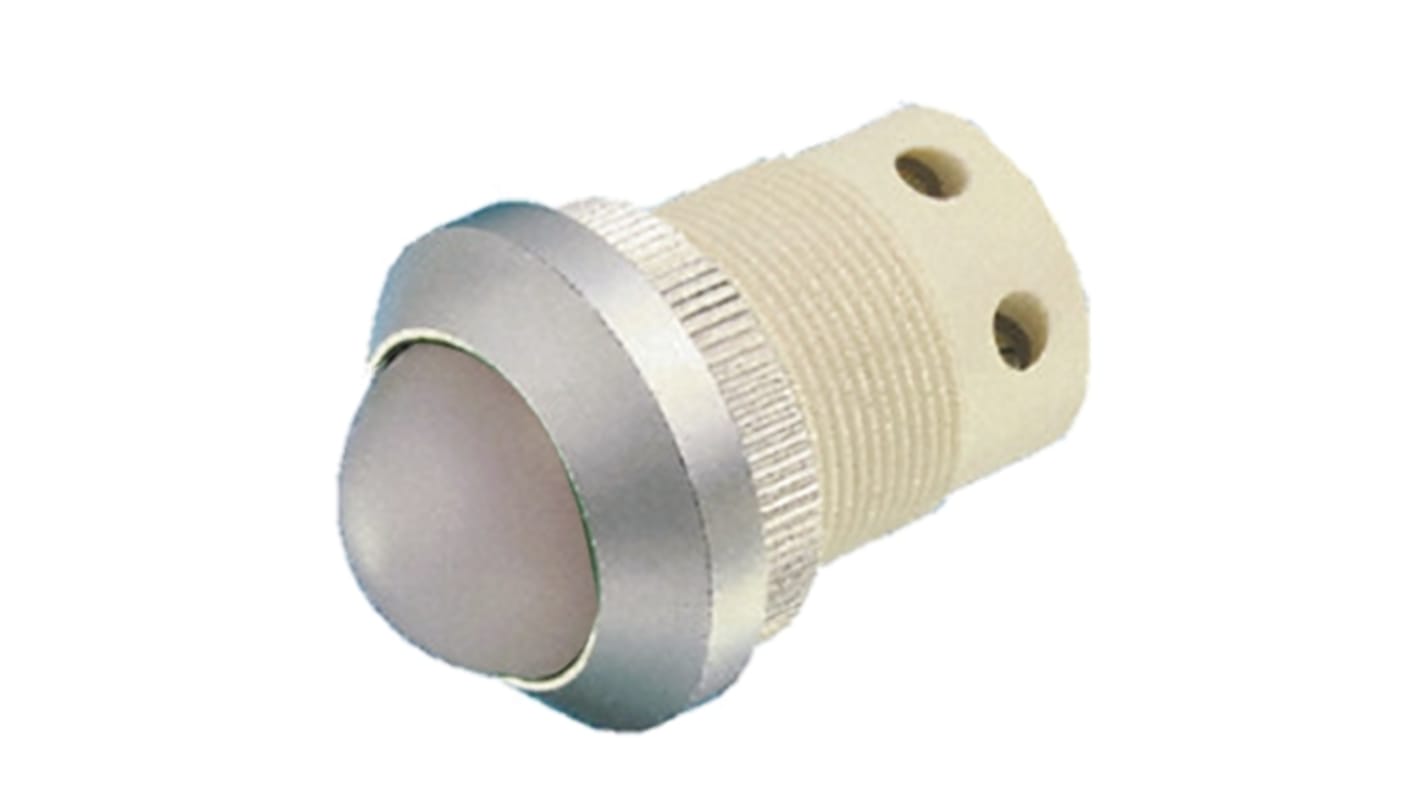

Signal Construct SMQD Series, White Panel Mount Indicator, Screw Termination 28V, 22 mm
- RS庫存編號:
- 369-3706
- 製造零件編號:
- SMQD22634
- 製造商:
- Signal Construct
可享批量折扣
小計（1 件）*
HK$345.30
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 - 14 | HK$345.30 |
| 15 - 49 | HK$335.00 |
| 50 - 99 | HK$324.60 |
| 100 - 199 | HK$317.70 |
| 200 + | HK$310.80 |
* 參考價格
- RS庫存編號:
- 369-3706
- 製造零件編號:
- SMQD22634
- 製造商:
- Signal Construct
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Signal Construct | |
| Product Type | Panel Mount Indicator | |
| Number of LEDs | 1 | |
| LED Colour | White | |
| Terminal Type | Screw | |
| Minimum Supply Voltage | 20V | |
| Mount Hole Size | 22 mm | |
| Maximum Supply Voltage | 28V | |
| Length | 43.8mm | |
| Standards/Approvals | RoHS | |
| Series | SMQD | |
| 選取全部 | ||
|---|---|---|
品牌 Signal Construct | ||
Product Type Panel Mount Indicator | ||
Number of LEDs 1 | ||
LED Colour White | ||
Terminal Type Screw | ||
Minimum Supply Voltage 20V | ||
Mount Hole Size 22 mm | ||
Maximum Supply Voltage 28V | ||
Length 43.8mm | ||
Standards/Approvals RoHS | ||
Series SMQD | ||
LED Indicators, 22mm Mounting, 24Vac/dc, 130Vac & 230Vac
All products are sealed to IP67 and have a 22 to 22.5mm dia. mounting hole size.
20mm, colour diffused prominent style lens
30mm dia. Bright satin, black or matt chrome plated brass housing
Polarity can be either connection for dc use
Screw connections for wires up to 1.5mm²
Circular fixing nut can be tightened by hand
Supplied with
O-ring, circular fixing nut, spring washer.
