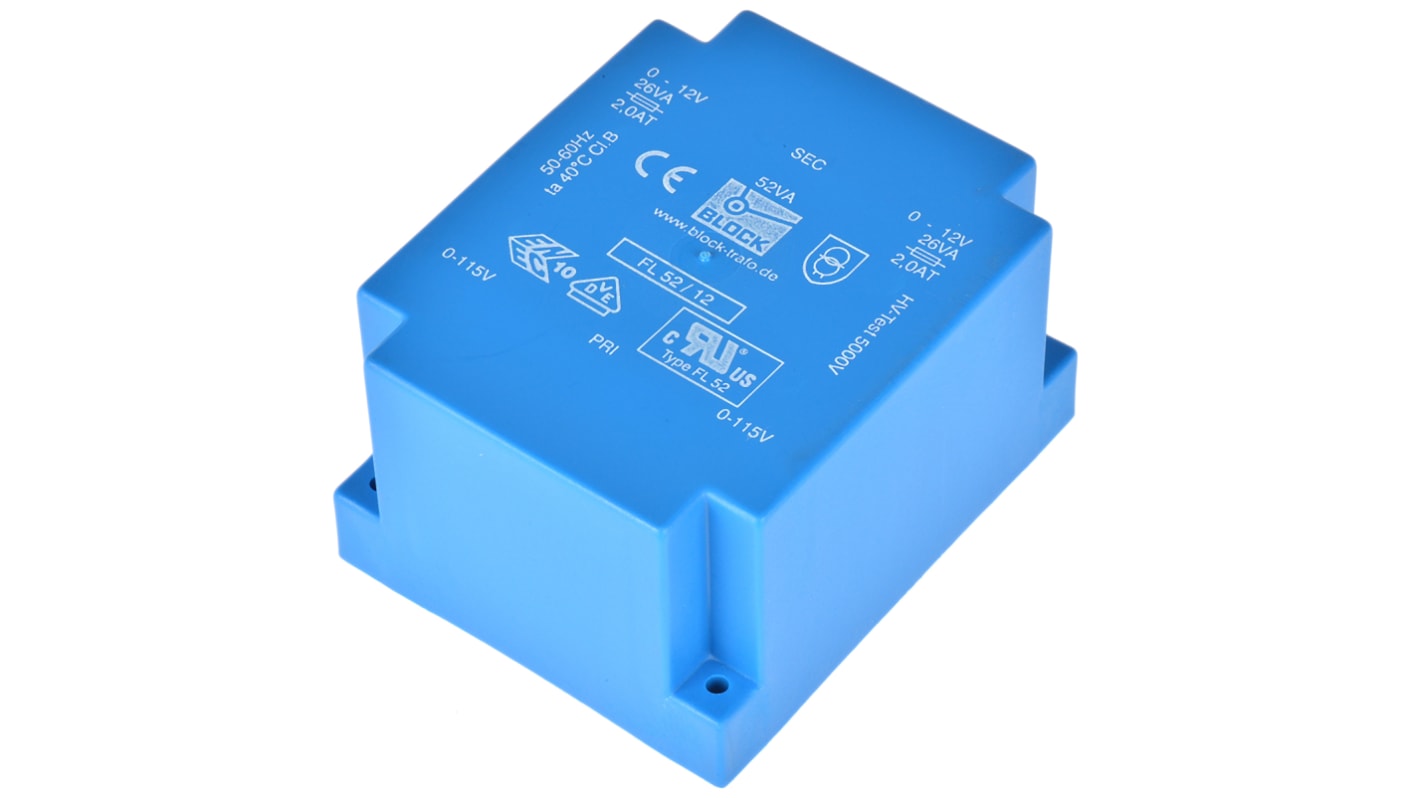

Block 12V ac 2 Output Through Hole PCB Transformer, 52VA
- RS Stock No.:
- 201-7561
- Mfr. Part No.:
- FL 52/12
- Brand:
- Block
Image representative of range
Bulk discount available
Subtotal (1 unit)*
HK$276.90
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 2 件從 2025年12月15日 起發貨
- 加上 6 件從 2025年12月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
Units | Per unit |
|---|---|
| 1 - 9 | HK$276.90 |
| 10 - 24 | HK$269.90 |
| 25 - 49 | HK$263.20 |
| 50 - 99 | HK$256.70 |
| 100 + | HK$250.30 |
*price indicative
- RS Stock No.:
- 201-7561
- Mfr. Part No.:
- FL 52/12
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 品牌 | Block | |
| Secondary Voltage Rating | 12V ac | |
| Power Rating | 52VA | |
| Primary Voltage Rating | 115V ac, 230V ac | |
| Number of Outputs | 2 | |
| Length | 86.5mm | |
| Width | 49mm | |
| Depth | 70mm | |
| Dimensions | 86.5 x 49 x 70mm | |
| Weight | 980g | |
| Mounting Type | Through Hole | |
| Maximum Temperature | +40°C | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Select all | ||
|---|---|---|
品牌 Block | ||
Secondary Voltage Rating 12V ac | ||
Power Rating 52VA | ||
Primary Voltage Rating 115V ac, 230V ac | ||
Number of Outputs 2 | ||
Length 86.5mm | ||
Width 49mm | ||
Depth 70mm | ||
Dimensions 86.5 x 49 x 70mm | ||
Weight 980g | ||
Mounting Type Through Hole | ||
Maximum Temperature +40°C | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
- COO (Country of Origin):
- DE
PCB Mounting Low Profile 115 / 230Vac Primary
Twin 115Va.c. 50 to 60Hz primary windings for series or parallel connection
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Twin secondary windings for series or parallel connection
Low profile compact design
Vacuum epoxy resin moulded to UL94-V0 rating
Double section glass fibre reinforced polyamide bobbins
100% electrical and flash tested
Low inter-winding capacitance
Low radiated noise
Extra fixing holes for secure board mounting
Standard: EN60742, VDE 0551, IEC 61558
Note
Transformer with 2 x 24V outputs are not VDE, SEV approved.
Standards
VD 61 558
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Approvals
VDE; UL
Standards
VD 61 558
