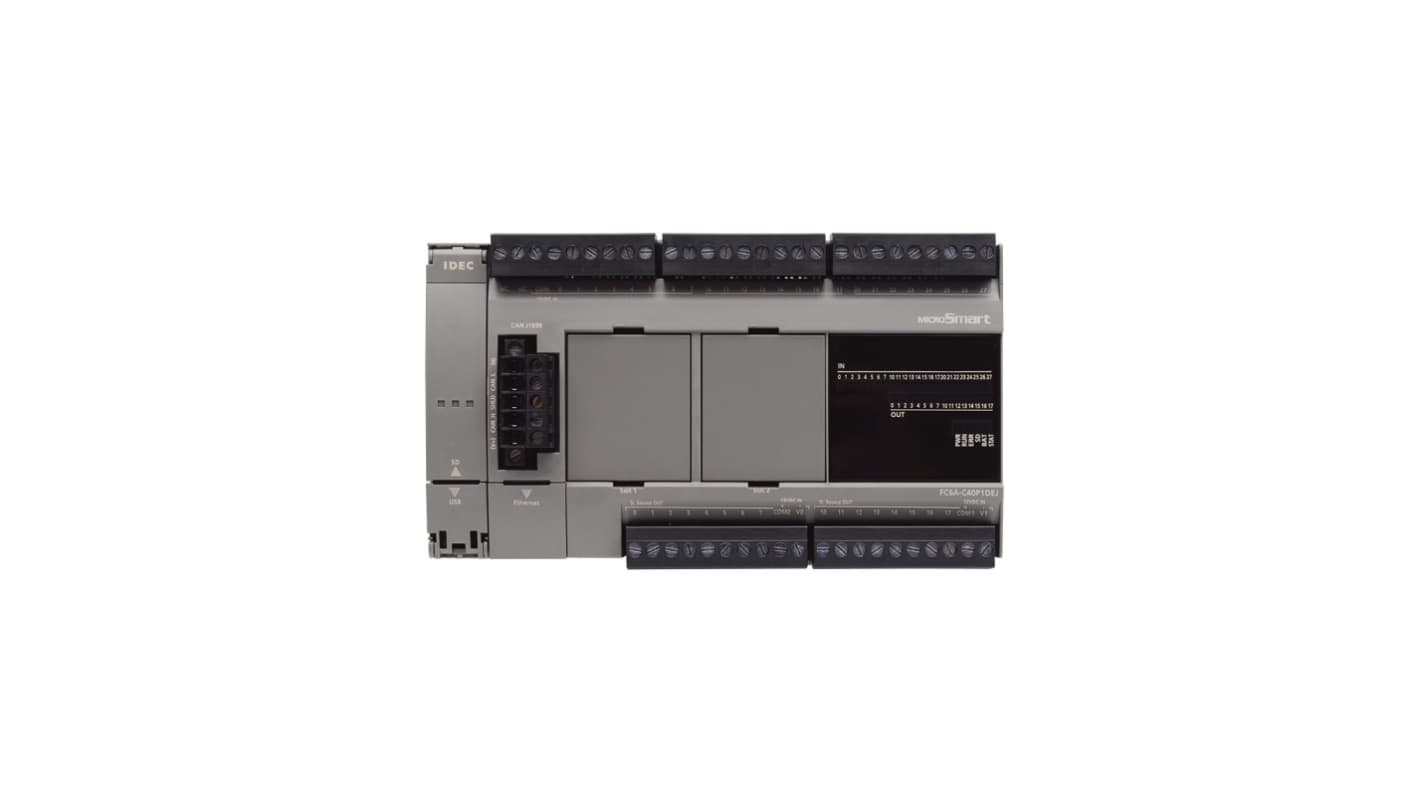

Idec FC6A-C40P1CE Series PLC CPU, Transistor (Source) Output, 24-Input, Analogue Input
- RS庫存編號:
- 479-520
- 製造零件編號:
- FC6A-C40P1CE
- 製造商:
- Idec
小計（1 件）*
HK$3,580.16
訂單超過 HK$250.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$3,580.16 |
* 參考價格
- RS庫存編號:
- 479-520
- 製造零件編號:
- FC6A-C40P1CE
- 製造商:
- Idec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Idec | |
| Product Type | PLC CPU | |
| Series | FC6A-C40P1CE | |
| Number of Inputs | 24 | |
| Output Type | Transistor (Source) | |
| Input Type | Analogue | |
| Number of Outputs | 16 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | UL, CE | |
| Supply Voltage | 24V dc | |
| Mount Type | Panel, DIN Rail | |
| Output Current | 250mA | |
| Programming Language Used | Script, Ladder Diagram (LD) | |
| 選取全部 | ||
|---|---|---|
品牌 Idec | ||
Product Type PLC CPU | ||
Series FC6A-C40P1CE | ||
Number of Inputs 24 | ||
Output Type Transistor (Source) | ||
Input Type Analogue | ||
Number of Outputs 16 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals UL, CE | ||
Supply Voltage 24V dc | ||
Mount Type Panel, DIN Rail | ||
Output Current 250mA | ||
Programming Language Used Script, Ladder Diagram (LD) | ||
- COO (Country of Origin):
- JP
The Idec FC6A MicroSmart PLC provides the power of a PAC in a low cost controller with a small form factor, making it an ideal fit for demanding applications. This FC6A MicroSmart PLC system offers robust data logging capabilities with web server functions, allowing for easy remote access and control. It features large programming and data memory, ensuring efficient handling of complex processes. Powered by an SAE J1939 CPU, it supports advanced communication protocols for industrial applications.
iOS and Android WindEDIT App
Bluetooth communication
Embedded Ethernet port
Embedded SD memory port
Modbus TCP and RTU
Embedded RS232C/RS485 user selectable
