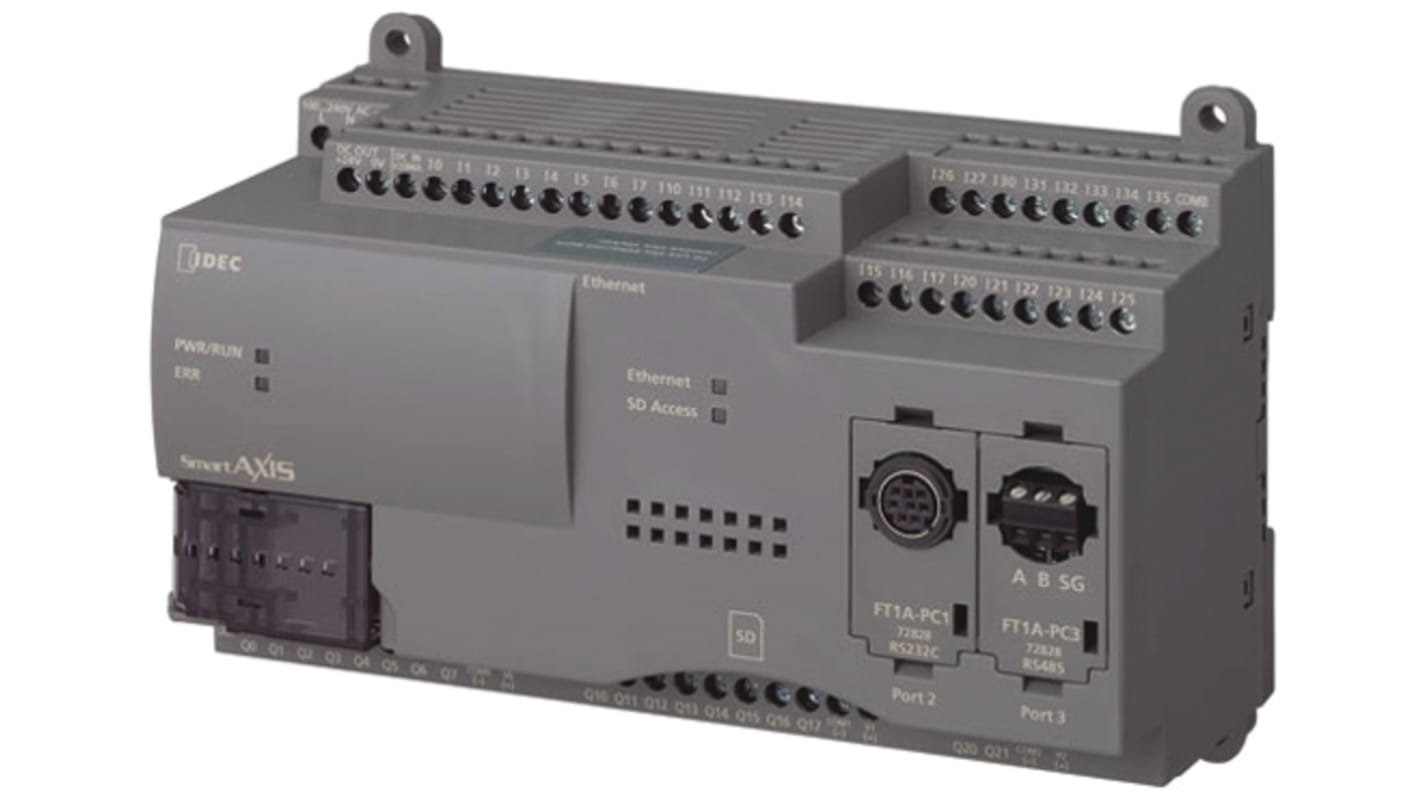

Idec FT1A Series PLC CPU, Transistor Output, 30-Input, Source Input

查看此類別
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
RS庫存編號:
812-9796
製造零件編號:
FT1A-B48KA
製造商:
Idec
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Idec

Manufacturer Series

FT1A

Number of Inputs

30

Output Type

Transistor

Input Type

Source

Number of Outputs

18

Voltage Category

24 V dc

Network Type

Ethernet

Battery Backup

Yes

Length

90mm

Minimum Operating Temperature

0°C

Dimensions

90 x 160 x 78 mm

Program Capacity

48 kB

Depth

78mm

Maximum Operating Temperature

+55°C

Width

160mm

Mounting Type

DIN Rail

Number of Communication Ports

1

COO (Country of Origin):
CN

SmartAXIS Lite 48 I/O CPU


SmartAXIS Lite PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions

Features of the SmartAXIS Lite CPU
Compatible with IDEC's WindLDR programming software
Supports Modbus TCP and RTU
Mini USB type B port for programming
Embedded Ethernet port
100kHz high-speed outputs
Backlit LCD option available
Embedded 8-pt analog inputs for 0-10V DC, 10-bit & DC power
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more
Equipped with 2 expansion communication ports for optional expansion
Optional RS232C/RS485 adaptor available
SD Card slot for data logging and program storage for ease of installation & data export


IDEC SmartAXIS Lite
