Idec FT1A Series PLC CPU, 24-Input, Sink Input, 16 Outputs, Relay, Transistor Output
- RS庫存編號:
- 812-9792
- 製造零件編號:
- FT1A-B40RSA
- 製造商:
- Idec
暫時無法供應
我們不知道此物品是否會到貨，因為製造商正在對其逐步停產。
- RS庫存編號:
- 812-9792
- 製造零件編號:
- FT1A-B40RSA
- 製造商:
- Idec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Idec | |
| Series | FT1A | |
| Product Type | PLC CPU | |
| Number of Inputs | 24 | |
| Output Type | Relay, Transistor | |
| Input Type | Sink | |
| Number of Outputs | 16 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Length | 90mm | |
| Depth | 60mm | |
| Width | 160mm | |
| Standards/Approvals | CE, Class I Div 2 Hazardous | |
| Display Included | Yes | |
| Program Capacity | 48kB | |
| Battery Backup | Yes | |
| Number of Communication Ports | 1 | |
| Mount Type | DIN Rail | |
| 選取全部 | ||
|---|---|---|
品牌 Idec | ||
Series FT1A | ||
Product Type PLC CPU | ||
Number of Inputs 24 | ||
Output Type Relay, Transistor | ||
Input Type Sink | ||
Number of Outputs 16 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Length 90mm | ||
Depth 60mm | ||
Width 160mm | ||
Standards/Approvals CE, Class I Div 2 Hazardous | ||
Display Included Yes | ||
Program Capacity 48kB | ||
Battery Backup Yes | ||
Number of Communication Ports 1 | ||
Mount Type DIN Rail | ||
- COO (Country of Origin):
- CN

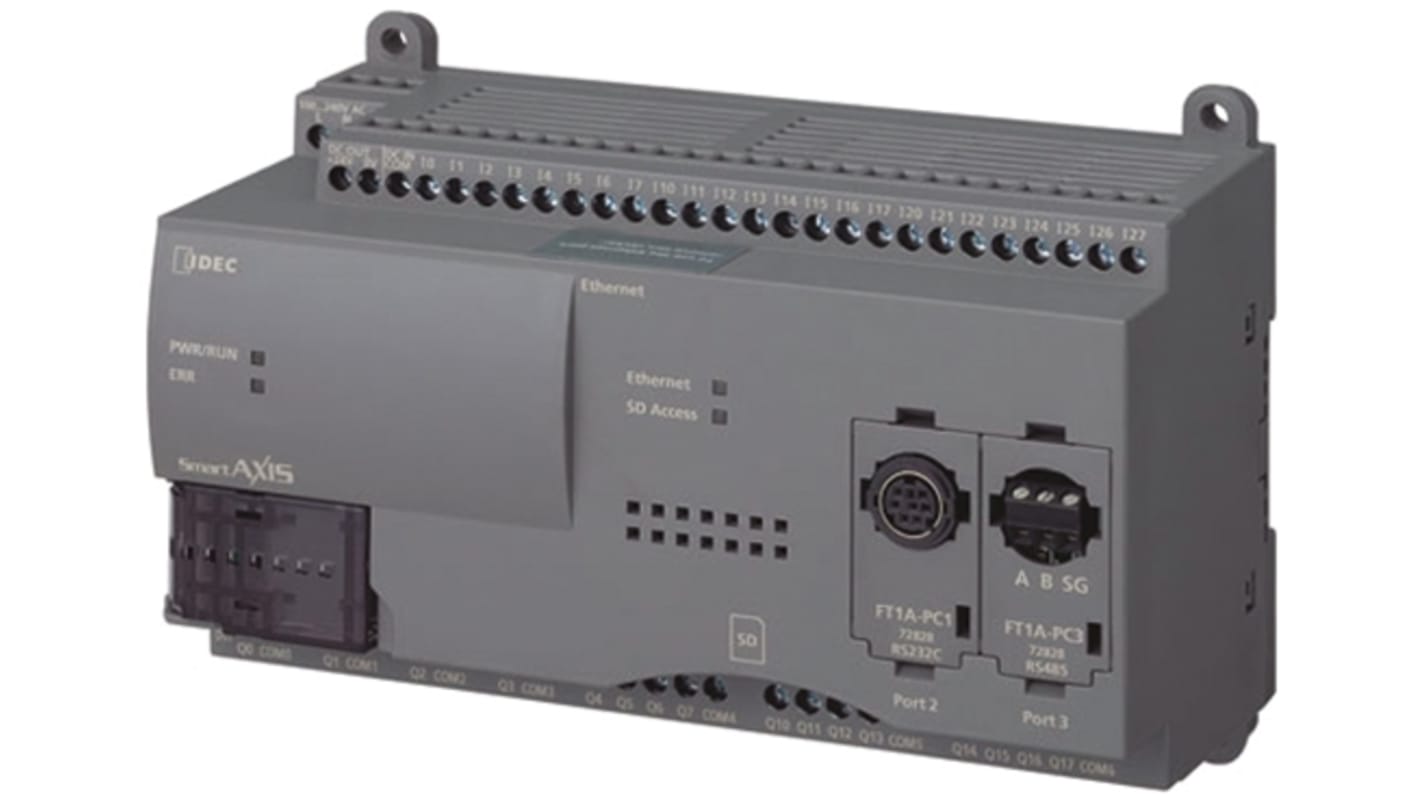

SmartAXIS Lite 40 I/O CPU
SmartAXIS Lite PLC CPU provides the user with a comprehensive variety of customisation options allowing for installation into a large range of applications. Supplied with an embedded battery backup which can offer up to 30 days power and self diagnostic functions
Features of the SmartAXIS Lite CPU
Compatible with IDEC's WindLDR programming software
10A SPST relay contact
Supports Modbus TCP and RTU
Mini USB type B port for programming
Embedded Ethernet port
100kHz high-speed outputs
Backlit LCD option available
Embedded 6-pt analog inputs for 0-10V DC, 10-bit & DC power
Integrated 4x 100kHz high-speed counters
Lithium backup battery which can supply for up to 30 days (typical) at 25°C once fully charged
Self-Diagnostic function provides the user with indications for "Keep Data", "Timer/Counter preset value change" & System/Memory Card transfer error" plus many more
Equipped with 2 expansion communication ports for optional expansion
Optional RS232C/RS485 adaptor available
SD Card slot for data logging and program storage for ease of installation & data export
IDEC SmartAXIS Lite
