Schneider Electric, 16A White Plug Socket Odace 2011, French 2P
- RS庫存編號:
- 358-405
- 製造零件編號:
- S520039
- 製造商:
- Schneider Electric
可享批量折扣
查看批量定價選項小計（1 件）*
HK$88.54
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2026年10月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$88.54 |
| 10 - 24 | HK$81.47 |
| 25 + | HK$73.48 |
* 參考價格
- RS庫存編號:
- 358-405
- 製造零件編號:
- S520039
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Plug Socket | |
| Colour | White | |
| Switched | No | |
| Socket Type | French 2P | |
| Pole Configuration | 2P+E | |
| Mount Type | Flush | |
| Current Rating | 16A | |
| Voltage | 250V | |
| Material | Polycarbonate, Acrylonitrile Styrene Acrylate | |
| Finish | White | |
| IP Rating | IP21D | |
| Screwed/Screwless | Screwed | |
| Overall Height | 71mm | |
| Overall Width | 71mm | |
| Overall Depth | 42.5mm | |
| Range | Odace | |
| Series | Odace 2011 | |
| Standards/Approvals | REACH, EU RoHS, CHINA RoHS | |
| Terminal Type | Screw | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Plug Socket | ||
Colour White | ||
Switched No | ||
Socket Type French 2P | ||
Pole Configuration 2P+E | ||
Mount Type Flush | ||
Current Rating 16A | ||
Voltage 250V | ||
Material Polycarbonate, Acrylonitrile Styrene Acrylate | ||
Finish White | ||
IP Rating IP21D | ||
Screwed/Screwless Screwed | ||
Overall Height 71mm | ||
Overall Width 71mm | ||
Overall Depth 42.5mm | ||
Range Odace | ||
Series Odace 2011 | ||
Standards/Approvals REACH, EU RoHS, CHINA RoHS | ||
Terminal Type Screw | ||
- COO (Country of Origin):
- ES

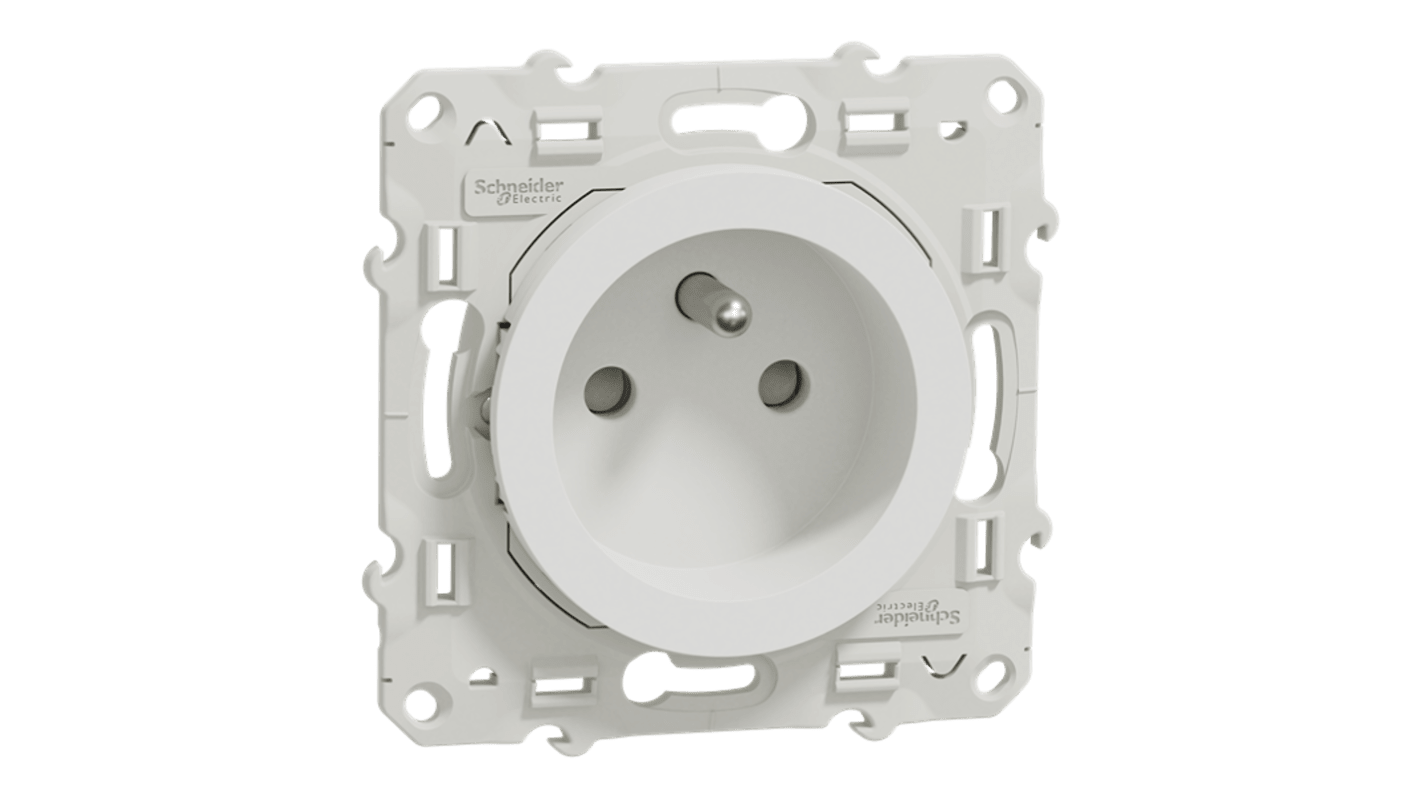

The Schneider Electric socket outlet is a mechanism with a fixing frame and features a single socket. It is packaged with a paint cover. The device has 2 terminals per pole and is designed for flush mounting. The outlet configuration is 2P + E, with a shuttered cover for safety. This socket outlet adheres to the French standard deviation.
Fixing mode by screws
5000 cycles service life
Electrical durability of 5000 cycles
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaner
