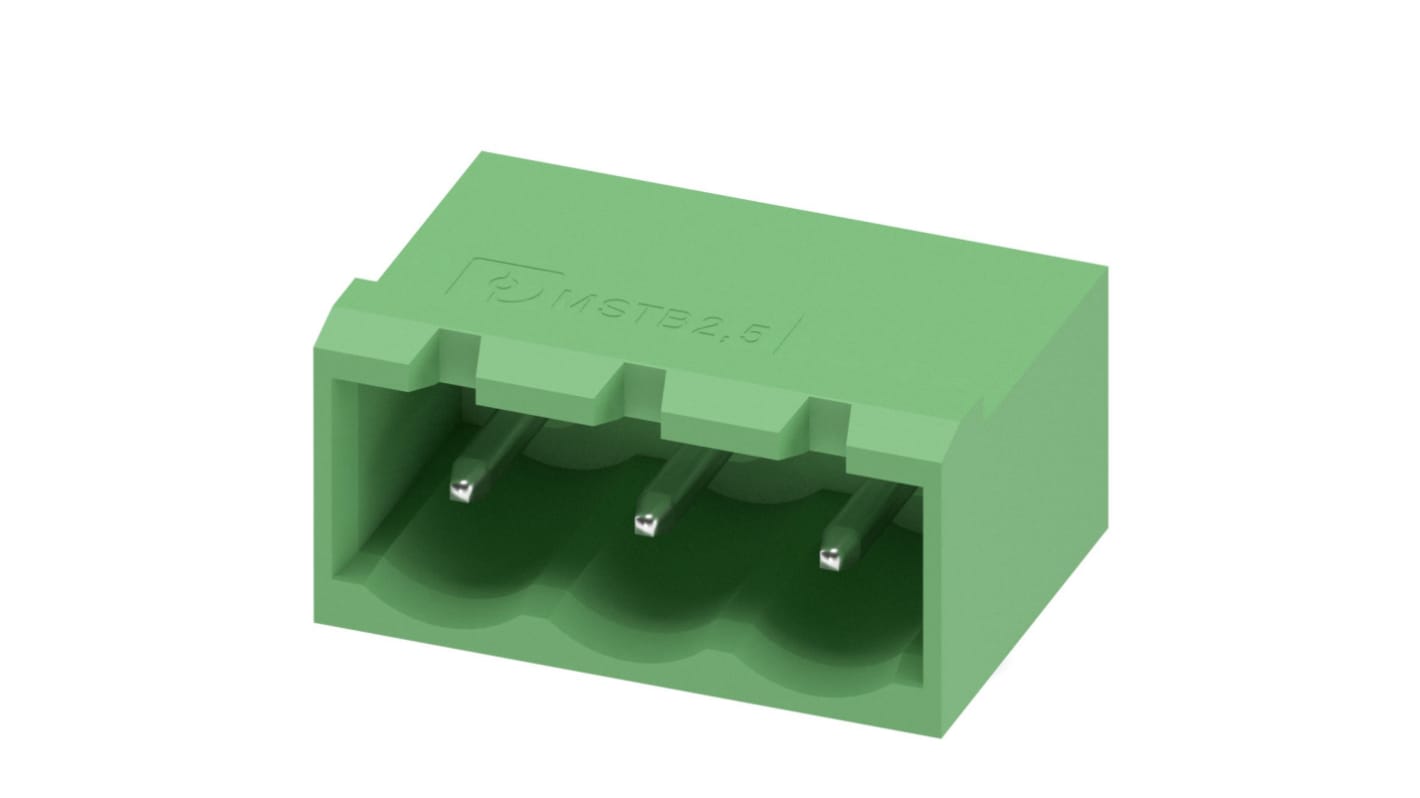

    Phoenix Contact 5.08mm Pitch 3 Way Right Angle Pluggable Terminal Block, Header, Solder Termination

    RS庫存編號:
    189-6111
    製造零件編號:
    1757255
    製造商:
    Phoenix Contact
    Phoenix Contact
    查看所有Pluggable Terminal Blocks
    495 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 /個 (每包:5個)

    原價 HK$11.506

    您付款

    HK$9.262

    單位Per unitPer Pack*
    5 - 70HK$9.262HK$46.31
    75 - 245HK$9.068HK$45.34
    250 - 495HK$8.79HK$43.95
    500 - 995HK$8.578HK$42.89
    1000 +HK$8.392HK$41.96
    * 參考價格
    RS庫存編號:
    189-6111
    製造零件編號:
    1757255
    製造商:
    Phoenix Contact
    COO (Country of Origin):
    DE

    法例與合規

    COO (Country of Origin):
    DE

    產品詳細資訊

    Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers


    The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.

    The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.

    Features and benefits:


    • Well known mounting principle allows for worldwide use

    • The MSTBA series can be used for all PCB connectors thanks to allowing multiple connection technologies

    • Built from a durable Polyamide material

    • Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)

    • Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors

    1757255 – 2 connection, 1 level


    The 1757255 is a right-angled version of the MSTBA connectors and will allow for great strain relief if the PCB is in an awkward spot. This version is also a 3-pin version and will be vertical once mounted on the PCB.

    Approvals

    UL; CSA

    規格

    AttributeValue
    Pluggable Terminal Block TypeHeader
    Number of Contacts3
    Pitch5.08mm
    SeriesMSTBA 2.5/ 3-G-5.08
    Number of Rows1
    Body OrientationRight Angle
    Termination MethodSolder
    Current Rating12.0A
    Voltage Rating400 V
