    Phoenix Contact 5.08mm Pitch 16 Way Right Angle Pluggable Terminal Block, Header, Through Hole, Solder Termination

    Phoenix Contact
    RS庫存編號:
    493-2658
    製造零件編號:
    1757381
    製造商:
    Phoenix Contact

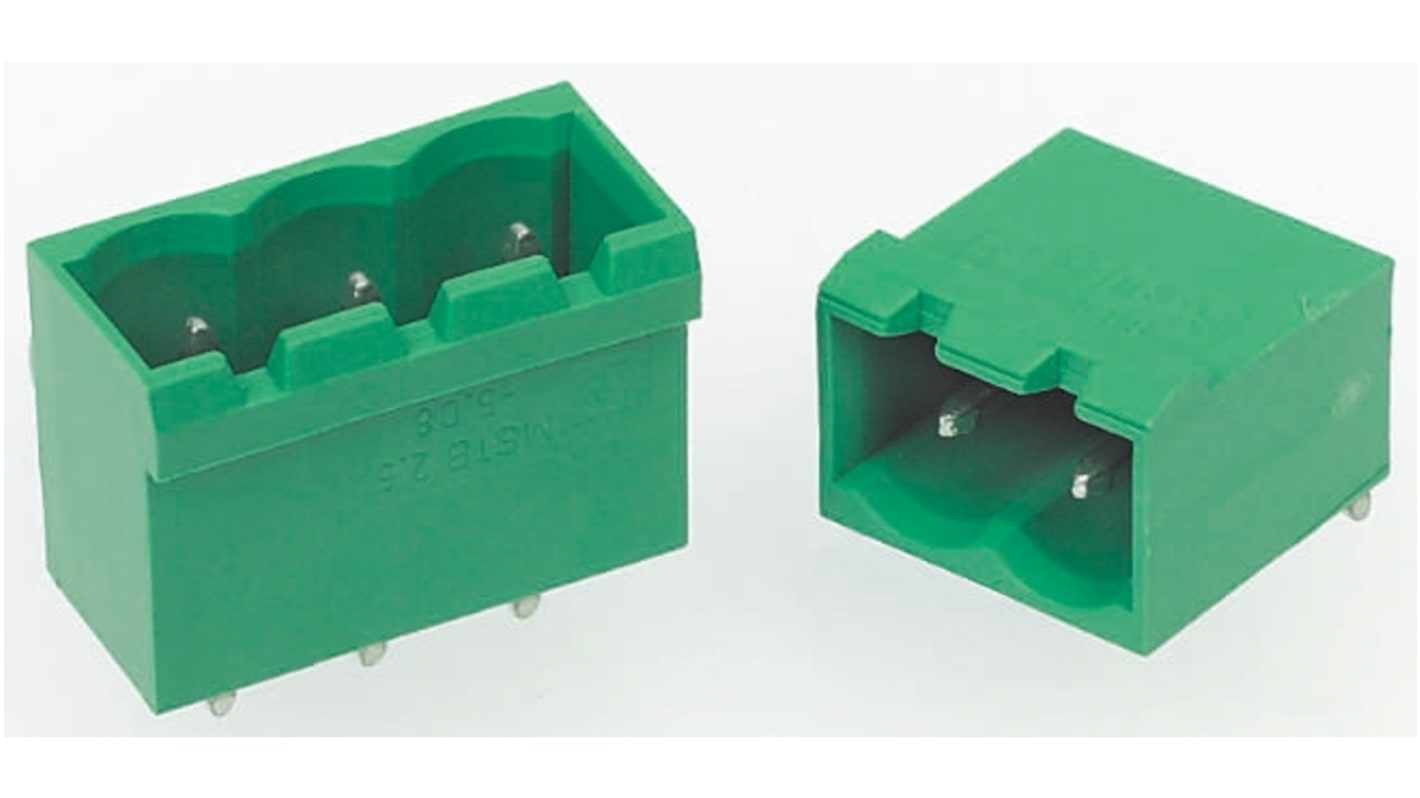

    此圖片僅供參考,請參閲產品詳細資訊及規格

    查看所有Pluggable Terminal Blocks
    50 將在 1 工作日發貨 (本地庫存)
    70 在3 工作日內發貨 (海外庫存)
    Add to Basket
    單位

    已增加

    單價 /個 (每包:5個)

    HK$58.098

    單位Per unitPer Pack*
    5 - 45HK$58.098HK$290.49
    50 - 95HK$55.776HK$278.88
    100 +HK$53.452HK$267.26
    * 參考價格
    RS庫存編號:
    493-2658
    製造零件編號:
    1757381
    製造商:
    Phoenix Contact

    法例與合規

    COO (Country of Origin):
    DE

    產品詳細資訊

    Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers


    The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.

    The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.

    Features and benefits:


    • Well known mounting principle allows for worldwide use

    • The MSTBA series can be used for all PCB connectors thanks to allowing multiple connection technologies

    • Built from a durable Polyamide material

    • Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)

    • Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors

    Approvals

    UL, CSA

    規格

    AttributeValue
    Pluggable Terminal Block TypeHeader
    Number of Contacts16
    Pitch5.08mm
    SeriesMSTBA 2.5/16-G-5.08
    Number of Rows1
    Body OrientationRight Angle
    Mounting TypeThrough Hole
    Termination MethodSolder
    Current Rating12.0A
    Voltage Rating250 V
