    Renesas Electronics Half-Bridge Driver

    RS庫存編號:
    121-5903
    製造零件編號:
    HIP2103-4DEMO2Z
    製造商:
    Renesas Electronics
    Renesas Electronics
    查看此類別
    11 現貨庫存,可於3工作日發貨。
    Add to Basket
    單位

    已增加

    單價 個

    HK$511.03

    單位Per unit
    1 - 4HK$511.03
    5 +HK$459.93
    RS庫存編號:
    121-5903
    製造零件編號:
    HIP2103-4DEMO2Z
    製造商:
    Renesas Electronics
    COO (Country of Origin):
    US

    法例與合規

    COO (Country of Origin):
    US

    產品詳細資訊

    HIP2103/HIP2104, 3-Phase, Half Bridge Motor Drivers, Intersil


    The HIP2103-4DEMO1Z Demonstration Board, is a general purpose motor drive module with a microprocessor controller on-board. It uses a PIC microcontroller to control the HIP2103 and the HIP2104 half bridge drivers with six MOSFETs.

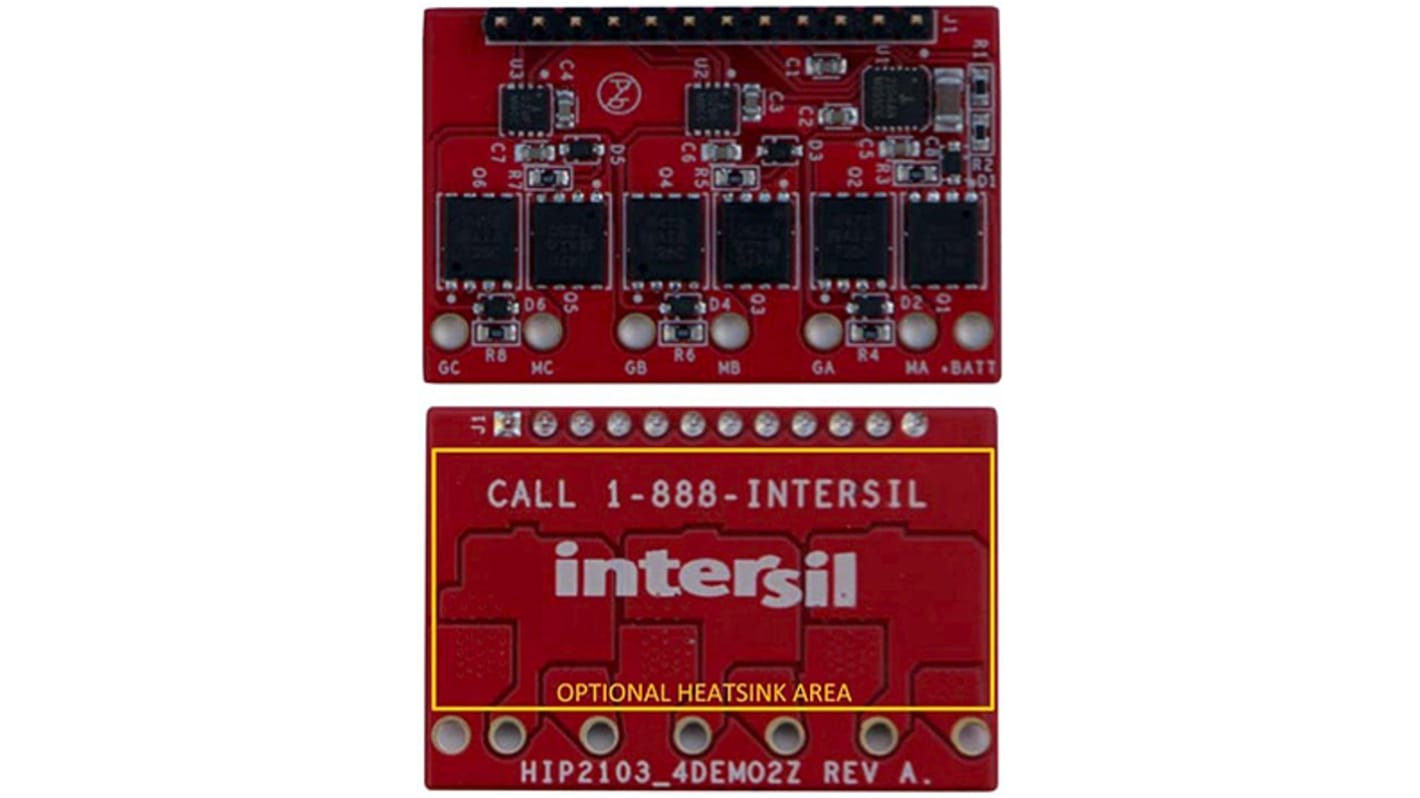

    The HIP2103-4DEMO2Z Demonstration Board integrates the HIP2103 and the HIP2104 half bridge drivers which control six on-board MOSFETs configured as a 3-phase bridge. Two inputs per a phase are provided to control independently the high side driver and the low side driver.
    The boards are designed for Full, or Half Bridge brushed DC motors and 3-phase brushless DC (BLDC) motor applications. It can be used in any application that requires any combination of three independent half bridges.

    HIP2103-4DEMO1Z


    MOSFET bridge supply voltage up to 60 V
    3.3 V and 12 V LDO voltage regulators with dedicated enable pins (HIP2104)
    Sleep mode quiescent current: 5 μA
    Under Voltage-Lockout (UVLO): 4 V
    3.3 V or 5 V CMOS compatible inputs with hysteresis
    High current MOSFETs with integrated bootstrap diode

    HIP2103-4DEMO2Z


    MOSFET bridge supply voltage from 5 V to 40 V dc
    High current MOSFETs on-board with integrated bootstrap diode
    Large diameter holes for wire connections to motor and power source
    12-pin through-hole header for signal connections to an external controller
    Optional heatsink can be accommodated on the PCB back-side

    For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.


    Motor Controllers & Drivers, Intersil

    規格

    AttributeValue
    Power Management FunctionHalf-Bridge Driver
    Kit ClassificationDevelopment Board
