	品牌	ADAFRUIT INDUSTRIES
	Power Management Function	Motor Controller
	Product Type	Evaluation Board
	For Use With	Haptic Motor
	Kit Classification	Development Board
	Featured Device	DRV2605L
	Kit Name	Controller Board
	Standards/Approvals	No
	Distrelec Product Id	30091178

	選取全部
	品牌 ADAFRUIT INDUSTRIES
	Power Management Function Motor Controller
	Product Type Evaluation Board
	For Use With Haptic Motor
	Kit Classification Development Board
	Featured Device DRV2605L
	Kit Name Controller Board
	Standards/Approvals No
	Distrelec Product Id 30091178

Adafruit DRV2605 Haptic Controller Breakout User Guide

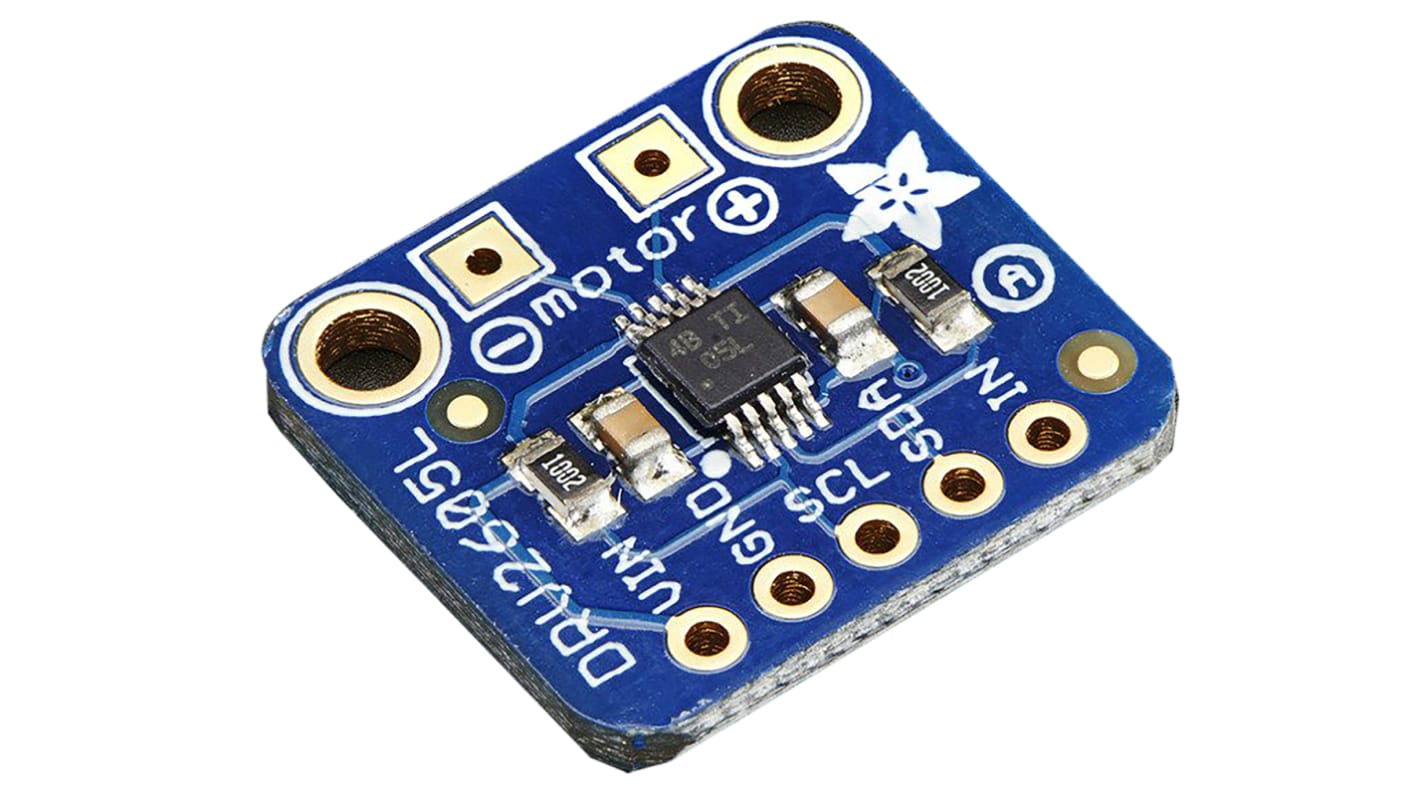

Adafruit DRV2605L Haptic Motor Controller Board

This tiny little board is designed for controlling haptic motors. Rather than just turning the motor on and off, this controller has a range of vibration effects stored in the chips memory. For example, the vibration level going up and down, 'click' effects, different buzzer levels or the vibration pattern following a musical/audio input.

The controller chip is the TI DRV2605 (RS 914-2942) and can be used with both Linear Resonance Actuator (LRA) and Eccentric Rotating Mass (ERM) type motors. The chip is controlled over I2C and compatible with both 3 V and 5 V power/logic.

Arduino code is available from Adafruit.com and porting it to other I2C-capable processor is relatively straight forward.

Board dimensions: 25.8 x 17.8 x 4.6 mm

1.0 g

ADAFRUIT INDUSTRIES Controller Board Motor Controller for DRV2605L for Haptic Motor
