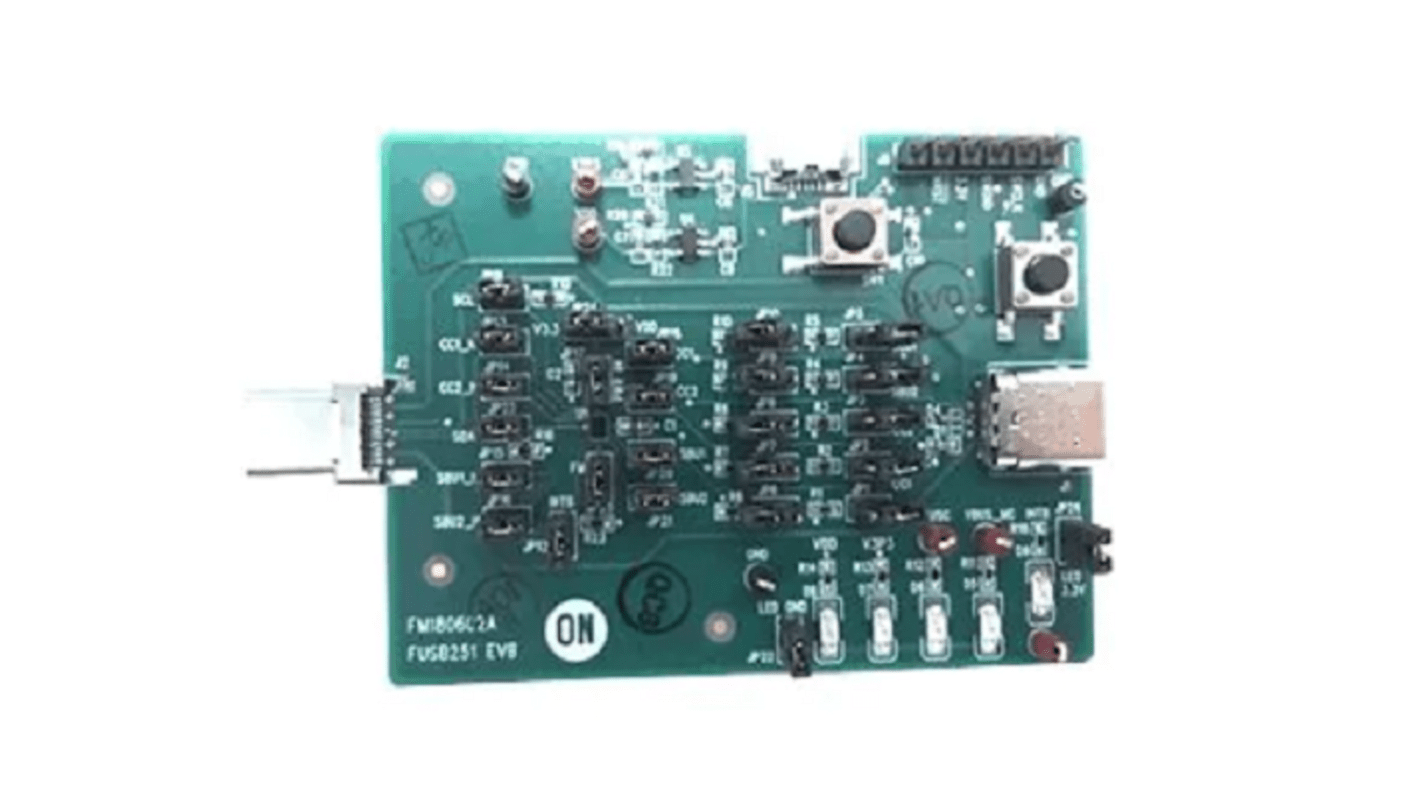

The On Semiconductor, designed to be inserted between a board that contains a Type-C controller and a source of voltage for OVP testing, test points and header switches are ready to test OVP and moisture detection functions on CC and SBU, LED indicators will show power status and Interrupt, if there is not access to a Type-C voltage source, test points (GND and VDD) are available on the board for direct power supply connections, the Type-C receptacle can accept a Type-C device such as Type-C charger or memory stick to demonstrate normal USB functionality.
Dead battery mode provides default Rd presenting on CC1/2 24volt DC tolerant on CC and SBU 35V surge protection on CC and SBU Over voltage protection on CC and SBU I2C interface with Interrupt for event notification Moisture detection on CC and SBU pins On-chip IEC ESD protection with external capacitor on CAP pin CC Ron 0.3 ohm Typical SBU Ron 3 ohm Typical 50Mhz Bandwidth on SBU switch
