Infineon EVAL-M1-IM241 for EVAL-M1-IM241 for Motor Drive Applications

查看此類別
可享批量折扣

小計（1 件）*

HK$1,162.90

Add to Basket
選擇或輸入數量
有限的庫存
  • 加上 3 件從 2025年12月15日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 1HK$1,162.90
2 - 2HK$1,139.70
3 +HK$1,116.80

* 參考價格

RS庫存編號:
260-1003
製造零件編號:
EVALM1IM241TOBO1
製造商:
Infineon
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Infineon

Product Type

Evaluation Board

For Use With

Motor Drive Applications

Kit Classification

Evaluation Board

Featured Device

EVAL-M1-IM241

Kit Name

EVAL-M1-IM241

Standards/Approvals

No

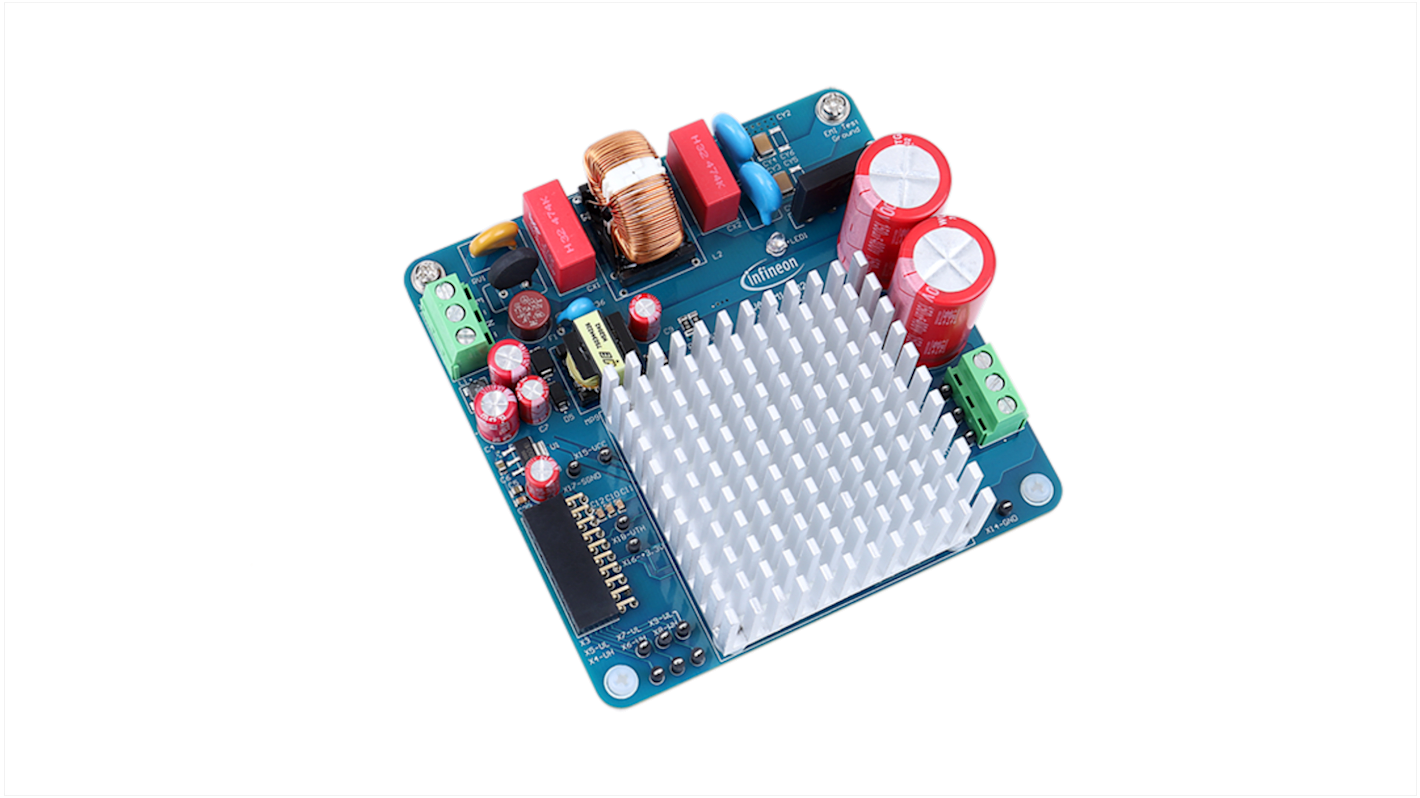

Evaluation board for CIPOS™ Micro IPM, features 600 V IM241-L6T2B IPM


The evaluation board EVAL-M1-IM241 was developed to support customers during their first steps of applications with the IM241 series CIPOS™ Micro IPM. In combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-101T, the kit offers a complete system to demonstrate our CIPOS™ Micro IPM technology in motor drives.

The IM241-L6T2B CIPOS™ Micro IPM has 600 V of voltage and 6 A of current rating. It is optimized for small home appliances like pumps, fans and other low power motor drive applications.

Summary of Features


  • Input voltage 110∼230 VAC

  • Maximum 2.5 A input current at 110 VAC

  • Maximum 250 W motor power output at 220 VAC

  • On board EMI filter and pass EMI standards EN55032

  • Auxiliary power supply with 15 V, 3.3 V

  • Overcurrent hardware protection & over temperature protection

  • Sensing of DC-link voltage

  • Thermistor output

  • PCB is 100 mm x 100 mm, two layers with 2 oz. copper

  • RoHS compliant

    • Benefits


  • Evaluate IM241-L6T2B

  • Get your motor running within an hour with EVAL-M1-101T

  • Start to learn more about motor control with Infineon parts

    • Applications


  • Hood fan

  • Motor control and drives

  • Refrigeration and freezing

  • Residential air conditioning: Smart and efficient cooling

  • Washing and drying

    • Note

    Classification 'Motor Driver Board'

    Kit Name ’EVAL-M1-IM241’

    Processor Family Name ’Motor Control Ics’

    Technology ’Motor Driver’
