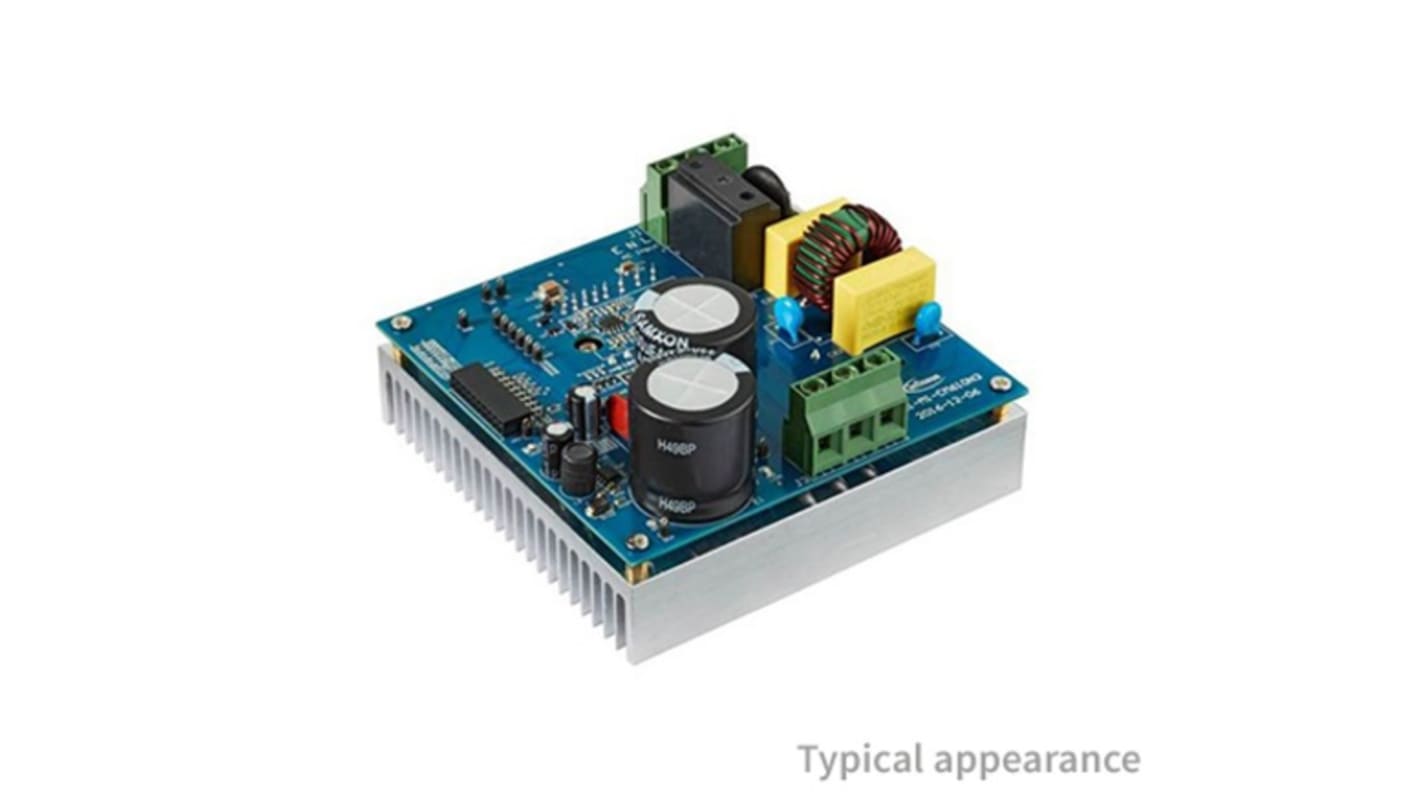

Infineon Eval-M1-CM610N3 3-Phase Motor Drive for CIPOS Mini IKCM10H60GA for EVAL-M1-101T

查看此類別
暫時無法供應
抱歉，我們不知道何時會到貨。
RS庫存編號:
248-9733
製造零件編號:
EVALM1CM610N3TOBO2
製造商:
Infineon
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Infineon

Power Management Function

3-Phase Motor Drive

Product Type

Evaluation Board

For Use With

EVAL-M1-101T

Kit Classification

Evaluation Board

Featured Device

CIPOS Mini IKCM10H60GA

Kit Name

Eval-M1-CM610N3

Standards/Approvals

RoHS

The Infineon evaluation board includes a 3-phase CIPOS™ Mini Intelligent Power Module (IPM) for motor drive application in combination with control-boards equipped with the M1 20pin interface connector, like EVAL-M1-1302 or EVAL-M1-099M, it features and demonstrates Infineon’s CIPOS™ Mini IPM technology for motor drive. The evaluation board Eval-M1-CM610N3 was developed to support customers during their first steps designing applications with CIPOS™ Mini IPM.

Power stage to drive 3-phase motor

600 V blocking voltage

10 A installed chip current

750 W output power with passive cooling

Test pads with hooks to attach standard oscilloscope probes

Standard MADK M1 interface connector
