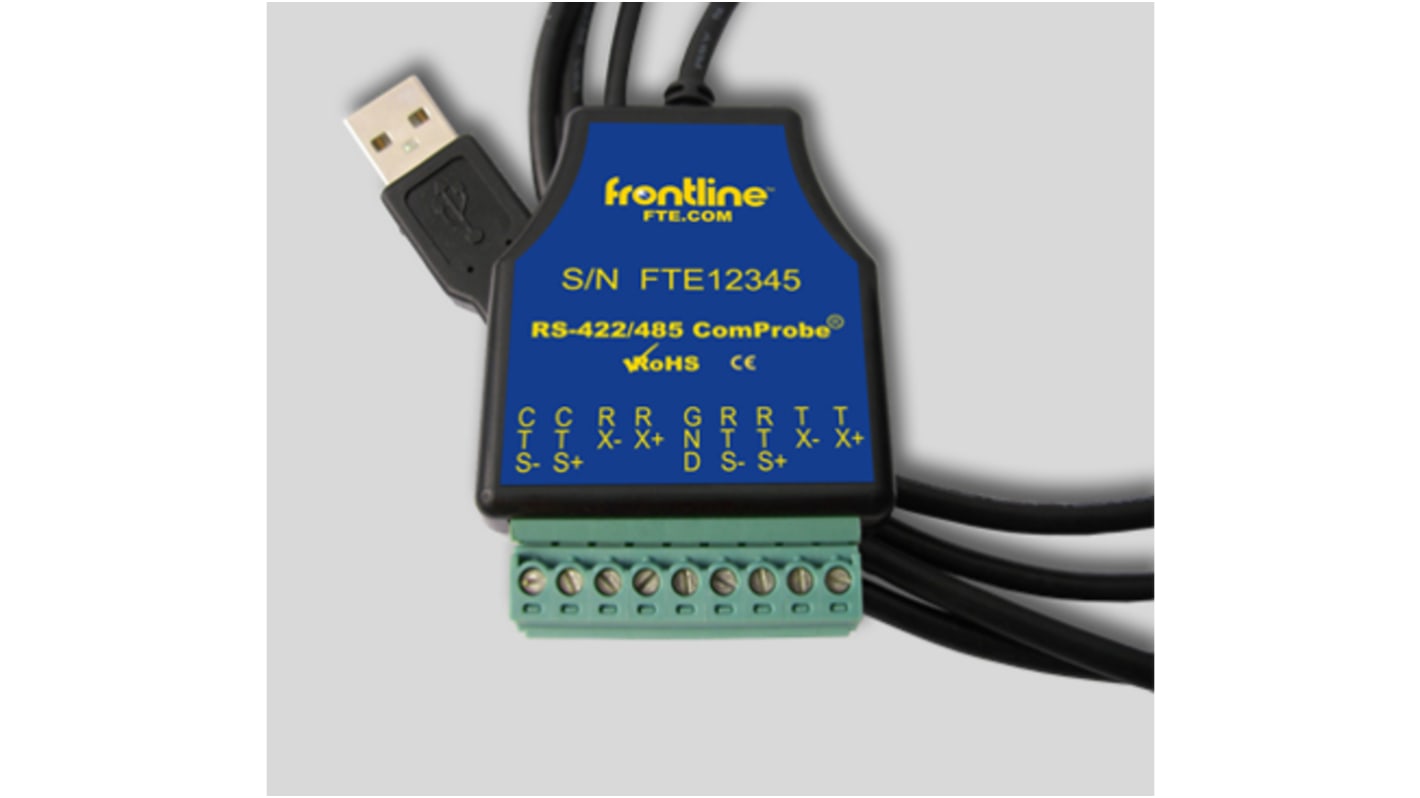

Teledyne LeCroy ND-422/485 Protocol Analyser RS422, RS485

查看所有Protocol Analysers

小計（1 件）*

HK$39,917.60

Add to Basket
選擇或輸入數量
库存信息目前无法访问 - 请稍候查看
單位
每單位
1 +HK$39,917.60

* 參考價格

RS庫存編號:
223-0893
Distrelec 貨號:
300-86-201
製造零件編號:
ND-422/485
製造商:
Teledyne LeCroy
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Teledyne LeCroy

Product Type

Protocol Analyser

Connectors

USB 2.0

Memory Size

2000MB

Standard Trigger Events

Packet Identifier

Model Number

ND-422/485

Supported Protocols

RS422, RS485

Standards/Approvals

No

The Teledyne LeCroy NetDecoder™ is a passive and easy-to-use network monitor that helps less-skilled trouble-shooters understand what is happening on their communications networks. The dashboard view, Network view network view, Statistics display and Frame display are intuitive, easy to read, and quickly provide a wealth of information about the network. Although NetDecoder is simple to work with, it does provide a level of sophisticated and detailed information demanded by today’s network specialist.

Captures, decodes, timestamps, filters and displays data, and detects protocol errors (indicated in red) simultaneously, all live and in real-time

Data is also displayed in binary, octal, hex, and ASCII

Familiar tree (Explorer style) protocol decode display with single-click protocol filtering

Session notes and annotated bookmarks allow for quick identification of questionable messages

USB interface – no external power needed

Log data to single or multiple files

Passive on the bus – does not interfere with regular traffic even when powered off
