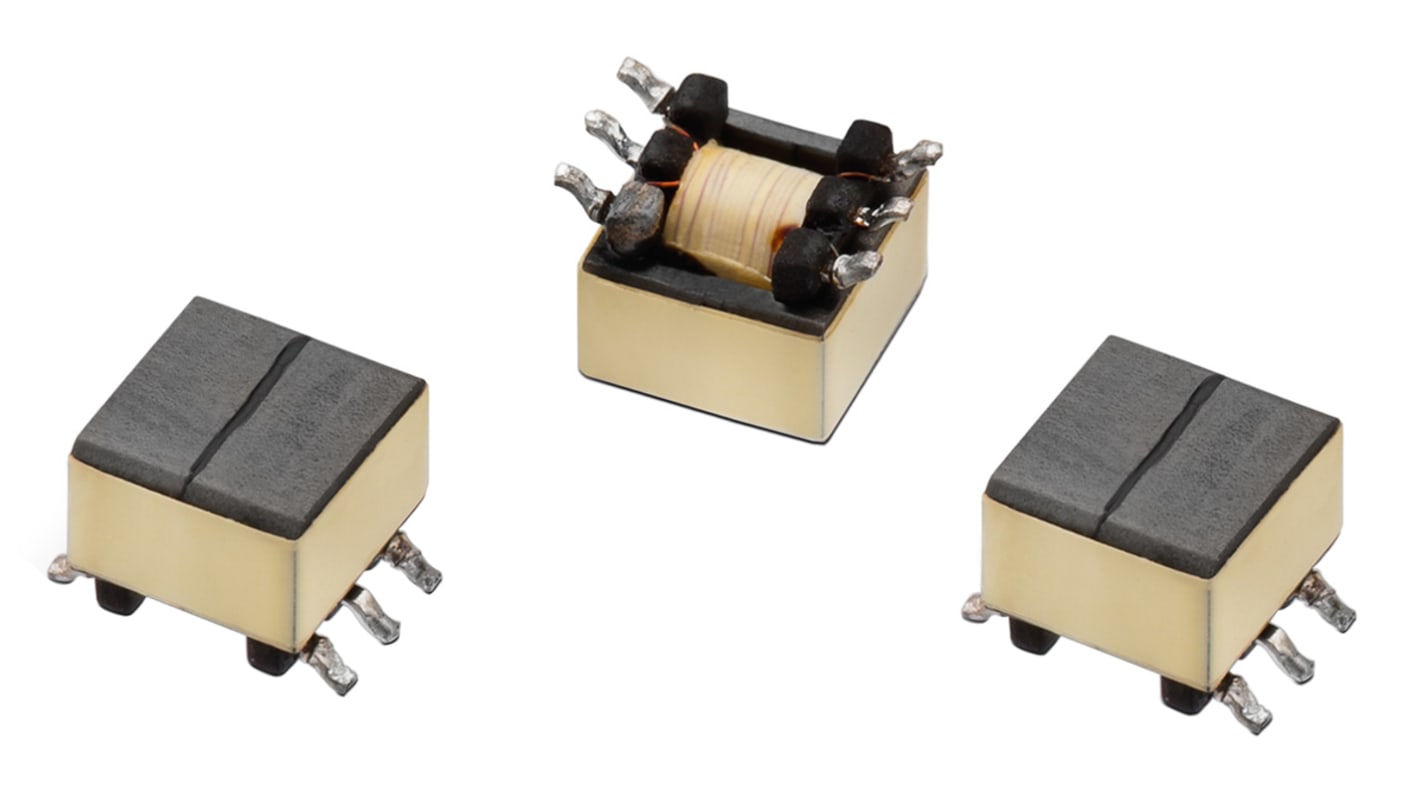

Wurth Elektronik Surface Mount Pulse Transformer 2.5:1 Turns Ratio, 730mΩ Prim. Resistance
- RS庫存編號:
- 151-1273
- 製造零件編號:
- 760301108
- 製造商:
- Wurth Elektronik
可享批量折扣
小計（1 卷，共 800 件）*
HK$44,004.00
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年6月03日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每卷* |
|---|---|---|
| 800 - 800 | HK$55.005 | HK$44,004.00 |
| 1600 - 2400 | HK$53.63 | HK$42,904.00 |
| 3200 + | HK$52.805 | HK$42,244.00 |
* 參考價格
- RS庫存編號:
- 151-1273
- 製造零件編號:
- 760301108
- 製造商:
- Wurth Elektronik
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Wurth Elektronik | |
| Primary DC Resistance | 730mΩ | |
| Secondary DC Resistance | 150mΩ | |
| Turns Ratio | 2.5:1 | |
| Mounting Type | Surface Mount | |
| Leakage Inductance | 2.3µH | |
| Dimensions | 7 x 7 x 6mm | |
| Depth | 6mm | |
| Length | 7mm | |
| Width | 7mm | |
| Maximum Operating Frequency | 100kHz | |
| Minimum Operating Frequency | 10kHz | |
| Minimum Temperature | -40°C | |
| Termination Type | Solder | |
| Isolation Voltage | 1500 (Test)V | |
| Maximum Temperature | +125°C | |
| Construction | Enclosed | |
| Standards Met | IPC/JEDEC J-STD-020D | |
| Primary Voltage Rating | 80V dc | |
| 選取全部 | ||
|---|---|---|
品牌 Wurth Elektronik | ||
Primary DC Resistance 730mΩ | ||
Secondary DC Resistance 150mΩ | ||
Turns Ratio 2.5:1 | ||
Mounting Type Surface Mount | ||
Leakage Inductance 2.3µH | ||
Dimensions 7 x 7 x 6mm | ||
Depth 6mm | ||
Length 7mm | ||
Width 7mm | ||
Maximum Operating Frequency 100kHz | ||
Minimum Operating Frequency 10kHz | ||
Minimum Temperature -40°C | ||
Termination Type Solder | ||
Isolation Voltage 1500 (Test)V | ||
Maximum Temperature +125°C | ||
Construction Enclosed | ||
Standards Met IPC/JEDEC J-STD-020D | ||
Primary Voltage Rating 80V dc | ||
Excellent performances in small package (EP5)
1 or 2 secondary windings
4 different turnsratios
1500VDC insulation test voltage
Suitable for signal and power application
Designed for gate drive application high efficient SMPS
Synchronous Flyback
1 or 2 secondary windings
4 different turnsratios
1500VDC insulation test voltage
Suitable for signal and power application
Designed for gate drive application high efficient SMPS
Synchronous Flyback
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
