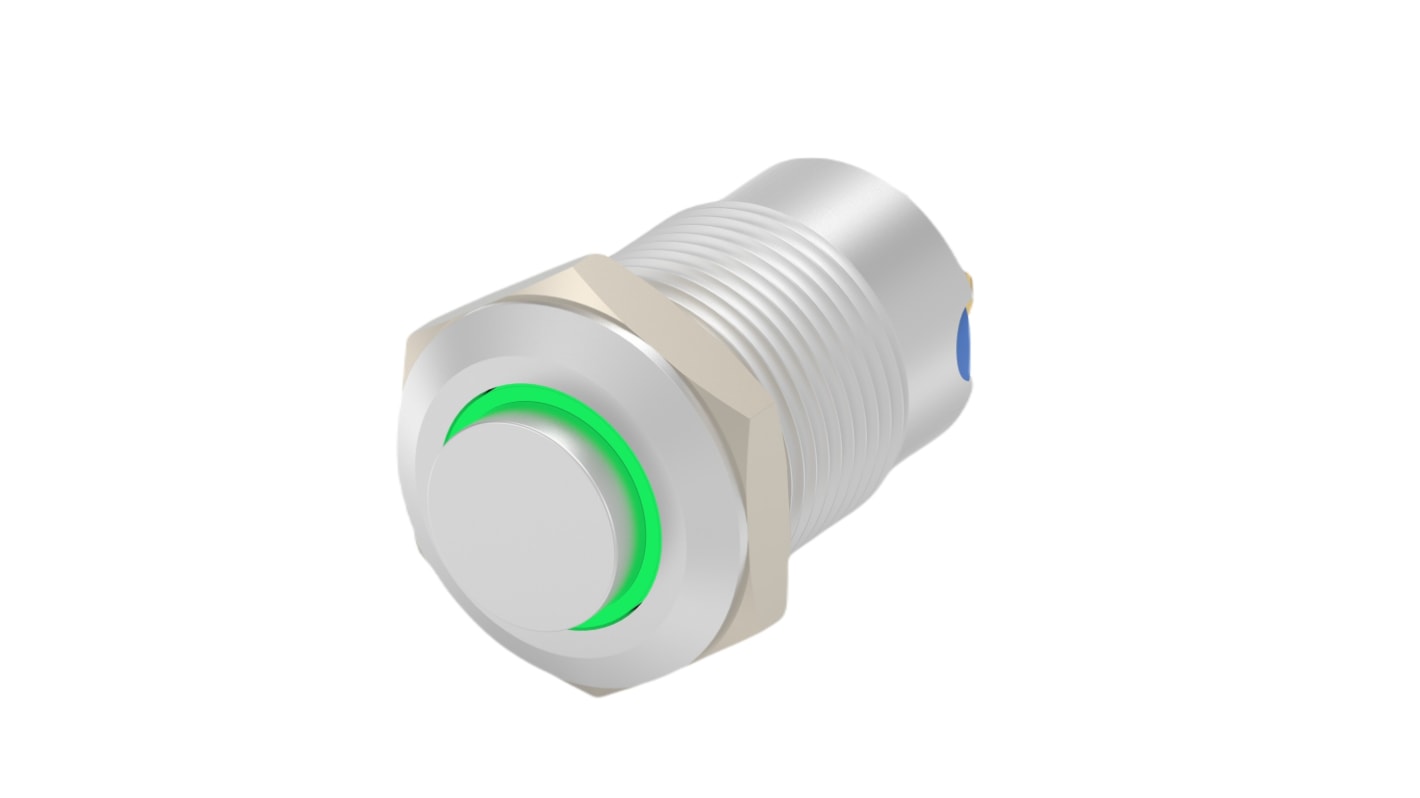

TE Connectivity AV12 Series Illuminated Push Button Switch, Momentary, Threaded, 9mm Cutout, SPST, Green LED, 12V, IP67
- RS庫存編號:
- 170-688
- 製造零件編號:
- AV1210E612R04
- 製造商:
- TE Connectivity
小計（1 件）*
HK$127.48
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年4月28日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$127.48 |
* 參考價格
- RS庫存編號:
- 170-688
- 製造零件編號:
- AV1210E612R04
- 製造商:
- TE Connectivity
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | AV12 | |
| Panel Cut Out Diameter | 9mm | |
| Mounting Type | Threaded | |
| Push Button Colour | White | |
| Contact Configuration | SPST | |
| Voltage Rating | 12V | |
| Push Button Style | Illuminated | |
| LED Colour | Green | |
| IP Rating | IP67 | |
| Push Button Diameter | 9mm | |
| Push Button Material | Stainless Steel | |
| Contact Current Rating | 1A | |
| Contact Material | Brass | |
| Contact DC Voltage Rating | 24V | |
| Manufacturer Part No. | AV1210E612R04 | |
| Case Colour | Natural | |
| Terminal Type | Threaded Connector | |
| Panel Cut Out Width | 14mm | |
| Operating Temperature Range | 55 → -20°C | |
| Maximum DC Voltage | 24V | |
| Panel Cut Out Height | 23mm | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | +55°C | |
| 選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series AV12 | ||
Panel Cut Out Diameter 9mm | ||
Mounting Type Threaded | ||
Push Button Colour White | ||
Contact Configuration SPST | ||
Voltage Rating 12V | ||
Push Button Style Illuminated | ||
LED Colour Green | ||
IP Rating IP67 | ||
Push Button Diameter 9mm | ||
Push Button Material Stainless Steel | ||
Contact Current Rating 1A | ||
Contact Material Brass | ||
Contact DC Voltage Rating 24V | ||
Manufacturer Part No. AV1210E612R04 | ||
Case Colour Natural | ||
Terminal Type Threaded Connector | ||
Panel Cut Out Width 14mm | ||
Operating Temperature Range 55 → -20°C | ||
Maximum DC Voltage 24V | ||
Panel Cut Out Height 23mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +55°C | ||
The TE Connectivity Anti Vandal Switch is designed for security and reliability in a variety of panel mount industrial and building applications. The large pushbutton and available LED indicators illuminate the switch and allow for an easy user interface. They are sealed to IP67.
Allows for an easy user interface with a large pushbutton
Enable flexibility with various pushbutton symbol including spot and power logo
Ease of installation with available flying lead terminations
Achieves a vandal proof solution with a jam nut accessible for rear of panel
Enable flexibility with various pushbutton symbol including spot and power logo
Ease of installation with available flying lead terminations
Achieves a vandal proof solution with a jam nut accessible for rear of panel
