Otto Push Button Switch, Momentary, Panel Mount, SPDT, 28 V dc, 115V ac, IP68S
- RS Stock No.:
- 914-4433
- Mfr. Part No.:
- P1-90266
- Brand:
- Otto
Bulk discount available
Subtotal (1 unit)*
HK$1,114.85
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年2月17日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
Units | Per unit |
|---|---|
| 1 - 4 | HK$1,114.85 |
| 5 - 19 | HK$1,081.41 |
| 20 + | HK$1,047.96 |
*price indicative
- RS Stock No.:
- 914-4433
- Mfr. Part No.:
- P1-90266
- Brand:
- Otto
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| 品牌 | Otto | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Red | |
| Contact Configuration | SPDT | |
| Voltage Rating | 28 V dc, 115V ac | |
| Push Button Style | Mushroom | |
| IP Rating | IP68S | |
| Contact Current Rating | 10 A @ 115 V ac, 10 A @ 28 V dc | |
| Contact Material | Brass | |
| Case Colour | Black | |
| Manufacturer Part No. | P1-90266 | |
| Contact DC Voltage Rating | 28V | |
| Contact AC Voltage Rating | 115V | |
| Terminal Type | Solder | |
| Select all | ||
|---|---|---|
品牌 Otto | ||
Switch Operation Momentary | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
Push Button Colour Red | ||
Contact Configuration SPDT | ||
Voltage Rating 28 V dc, 115V ac | ||
Push Button Style Mushroom | ||
IP Rating IP68S | ||
Contact Current Rating 10 A @ 115 V ac, 10 A @ 28 V dc | ||
Contact Material Brass | ||
Case Colour Black | ||
Manufacturer Part No. P1-90266 | ||
Contact DC Voltage Rating 28V | ||
Contact AC Voltage Rating 115V | ||
Terminal Type Solder | ||

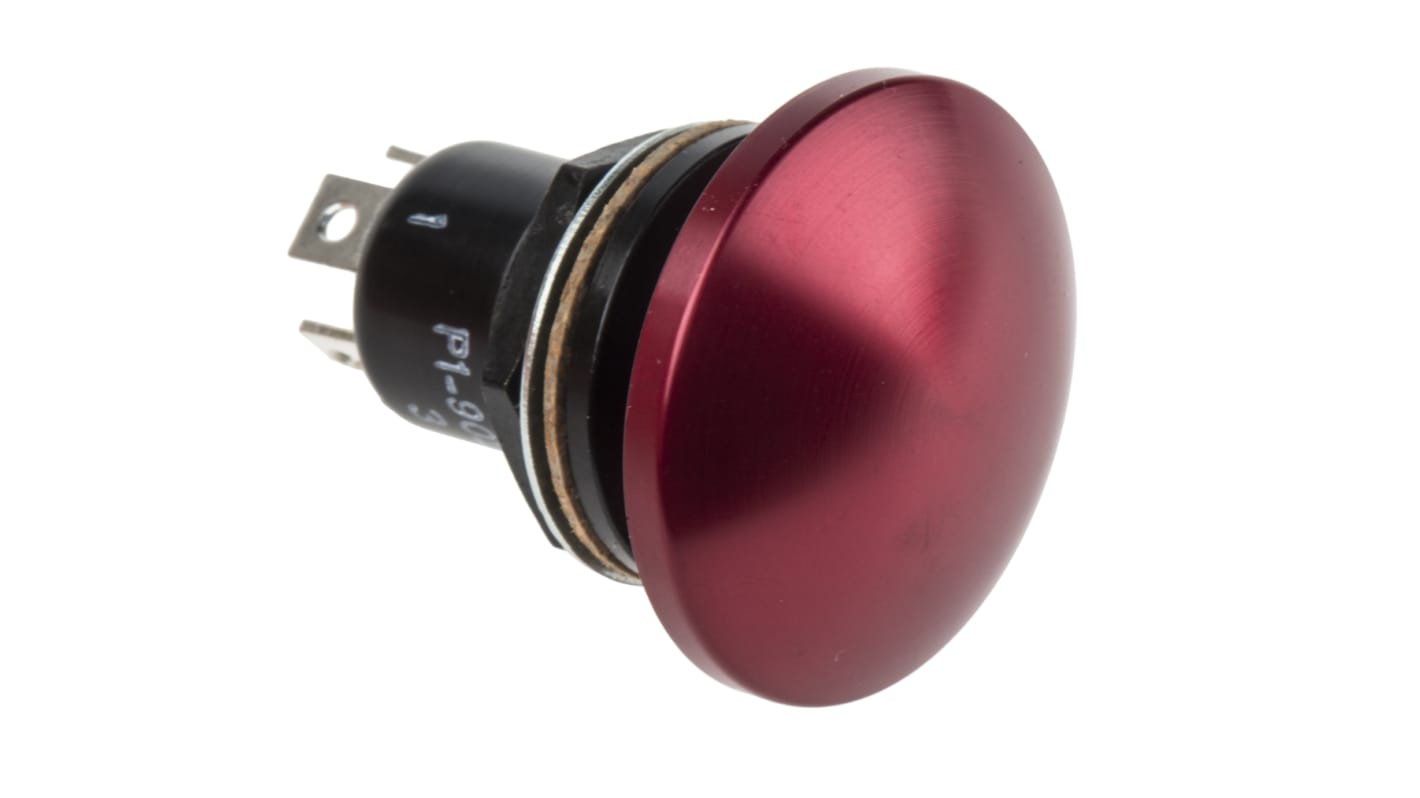

Otto P1 Anodized Aluminium Alloy Mushroom Pushbutton
The P1-90266 pushbutton from Otto has a red mushroom shaped actuator and is manufactured using anodized aluminium alloy. This makes the unit robust and suitable for use in harsh environments and the IP68S rating provides a high degree of ingress protection from dust and liquids.
Features and Benefits
Includes hex nut, lock washer and panel seal gasket
Electrical life: 25,000 cycles at full load
Mechanical life: 250,000 cycles
Operating temperature range: -55 °C to +85 °C
Electrical life: 25,000 cycles at full load
Mechanical life: 250,000 cycles
Operating temperature range: -55 °C to +85 °C
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
