Otto P8 Series Push Button Switch, Momentary, Momentary, Panel, Panel Mount, SPDT, Grey LED, IP64, IP68S, IP69K, 28 V
- RS庫存編號:
- 914-4430
- 製造零件編號:
- P8-V000017
- 製造商:
- Otto
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 914-4430
- 製造零件編號:
- P8-V000017
- 製造商:
- Otto
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Otto | |
| Switch Operation | Momentary, Momentary | |
| Actuator Colour | Silver | |
| Product Type | Push Button Switch | |
| Illuminated | No | |
| Series | P8 | |
| Mount Type | Panel, Panel Mount | |
| Contact Configuration | SPDT | |
| Terminal Type | Solder | |
| LED Colour | Grey | |
| IP Rating | IP64, IP68S, IP69K | |
| Minimum Operating Temperature | -55°C | |
| Contact DC Voltage | 28V | |
| Actuator Style | Push Button | |
| Contact AC Voltage | 115V | |
| Maximum Operating Temperature | 85°C | |
| Switch Configuration | On-On | |
| Switch Contact Current | 10A | |
| Standards/Approvals | CSA, CSA Certified, REACH, Reach Compliant, UL, UL1500, UL1500, UL Recognized, WEEE, WEEE Compliant | |
| Legend | Start, START STOP, Stop | |
| 選取全部 | ||
|---|---|---|
品牌 Otto | ||
Switch Operation Momentary, Momentary | ||
Actuator Colour Silver | ||
Product Type Push Button Switch | ||
Illuminated No | ||
Series P8 | ||
Mount Type Panel, Panel Mount | ||
Contact Configuration SPDT | ||
Terminal Type Solder | ||
LED Colour Grey | ||
IP Rating IP64, IP68S, IP69K | ||
Minimum Operating Temperature -55°C | ||
Contact DC Voltage 28V | ||
Actuator Style Push Button | ||
Contact AC Voltage 115V | ||
Maximum Operating Temperature 85°C | ||
Switch Configuration On-On | ||
Switch Contact Current 10A | ||
Standards/Approvals CSA, CSA Certified, REACH, Reach Compliant, UL, UL1500, UL1500, UL Recognized, WEEE, WEEE Compliant | ||
Legend Start, START STOP, Stop | ||

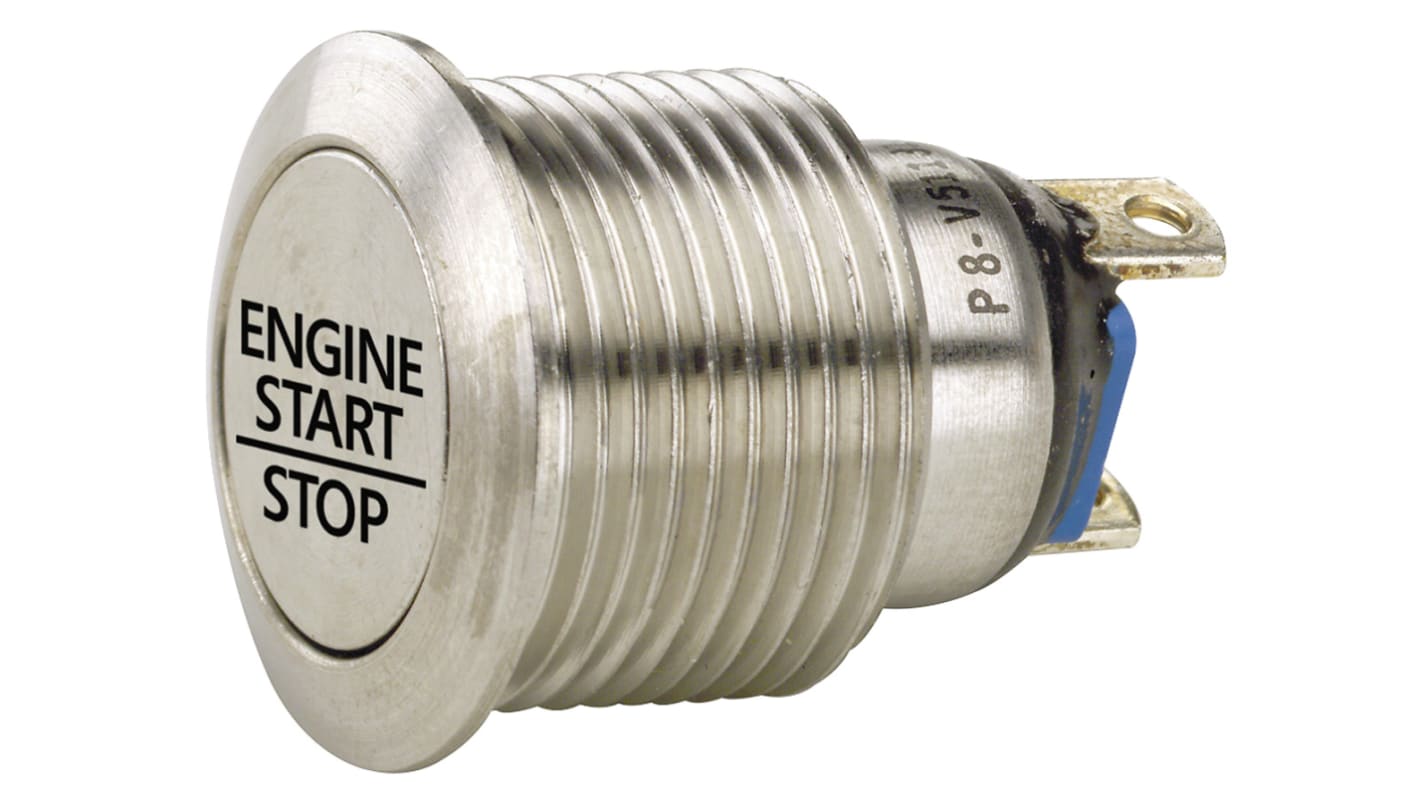

Otto P8-V Vandal Resistant Pushbuttons
The P8-V series gives the same quality and precision tactile feedback as the P8 series but comes in a stainless steel vandal resistant case and button. They are sealed to IP68S and IP69K standards and have a mechanical life expectancy of 1,000,000 cycles. The terminals are also sealed giving protection from solder flux and rear of panel harsh environment protection.
Potential Applications
The vandal resistant and sealed nature of these switches makes them ideally suited for door access security systems, public transport systems, emergency phones and traffic signals. They are also ideal for process control environments and anywhere that durability, ruggedness and security are crucial.
Features
Stainless steel vandal resistant case
Watertight to IP68S and IP69K
Positive tactile feedback
Less than 25mΩ contact resistance
Mechanical life 1 million cycles
UL1500 ignition protected
Standards
UL recognized & CSA certified
