Otto Push Button Switch, Latching, Panel Mount, SPST, 28 V dc, 115V ac, IP64, IP68S, IP69K
- RS庫存編號:
- 914-4446
- 製造零件編號:
- P5-V31125
- 製造商:
- Otto
可享批量折扣
小計（1 件）*
HK$295.10
訂單超過 HK$250.00 免費送貨
有庫存
- 8 件準備從其他地點送貨
- 加上 50 件從 2025年12月22日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$295.10 |
| 5 - 19 | HK$289.20 |
| 20 - 49 | HK$283.40 |
| 50 - 249 | HK$277.70 |
| 250 + | HK$272.10 |
* 參考價格
- RS庫存編號:
- 914-4446
- 製造零件編號:
- P5-V31125
- 製造商:
- Otto
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Otto | |
| Switch Operation | Latching | |
| Illuminated | No | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Silver | |
| Contact Configuration | SPST | |
| Voltage Rating | 28 V dc, 115V ac | |
| Push Button Style | Round | |
| IP Rating | IP64, IP68S, IP69K | |
| Contact Current Rating | 10 A @ 115 V ac, 10 A @ 28 V dc | |
| Contact Material | Silver | |
| Contact DC Voltage Rating | 28V | |
| Manufacturer Part No. | P5-V31125 | |
| Case Colour | Silver | |
| Contact AC Voltage Rating | 115V | |
| Terminal Type | Solder | |
| 選取全部 | ||
|---|---|---|
品牌 Otto | ||
Switch Operation Latching | ||
Illuminated No | ||
Mounting Type Panel Mount | ||
Push Button Colour Silver | ||
Contact Configuration SPST | ||
Voltage Rating 28 V dc, 115V ac | ||
Push Button Style Round | ||
IP Rating IP64, IP68S, IP69K | ||
Contact Current Rating 10 A @ 115 V ac, 10 A @ 28 V dc | ||
Contact Material Silver | ||
Contact DC Voltage Rating 28V | ||
Manufacturer Part No. P5-V31125 | ||
Case Colour Silver | ||
Contact AC Voltage Rating 115V | ||
Terminal Type Solder | ||

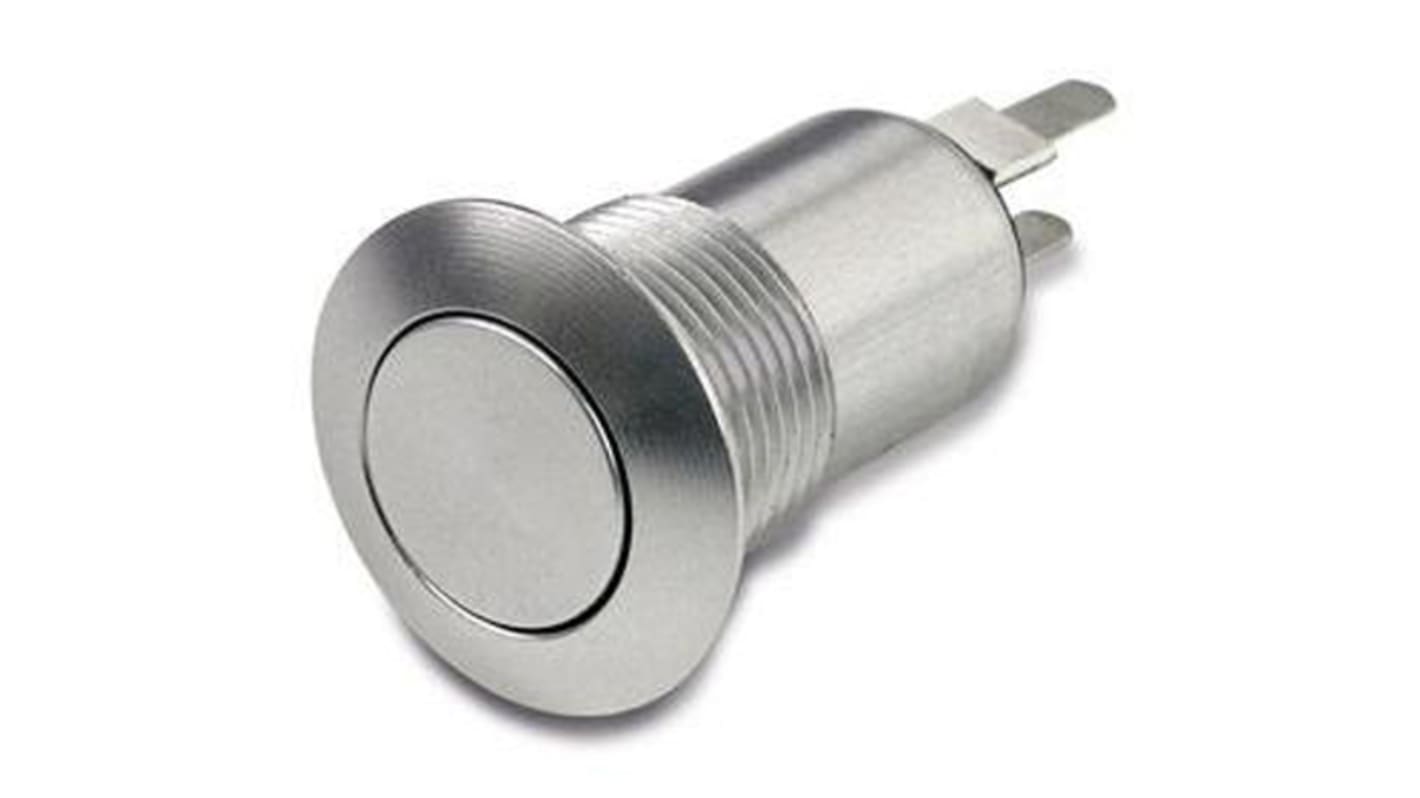

Otto P5-V Vandal Resistant Pushbuttons
The P5-V series from Otto offers all the functionality of the P5 Alternate action switches but with the added advantage of a stainless steel, vandal resistant case and button. They offer a very simply action of push to turn on, push to turn off. The button returns to the original position after each actuation and gives a positive tactile feedback so you know the switch has been actuated.
The switches are tough and rugged and suitable for harsh environments. They are sealed to IP68S and IP69K. The terminals have been epoxy sealed to give protection against flux during wiring and offers behind panel protection from dust and moisture.
The switches are tough and rugged and suitable for harsh environments. They are sealed to IP68S and IP69K. The terminals have been epoxy sealed to give protection against flux during wiring and offers behind panel protection from dust and moisture.
Features
Vandal resistant (stainless steel) case & button
Button sealed with patented "rolling sleeve" design
Contact area sealed at case & terminals
Watertight to IP68S and IP69K
Less than 25mΩ contact resistance
Handles low level up to 10 amps
1 million mechanical cycle life
Button sealed with patented "rolling sleeve" design
Contact area sealed at case & terminals
Watertight to IP68S and IP69K
Less than 25mΩ contact resistance
Handles low level up to 10 amps
1 million mechanical cycle life
