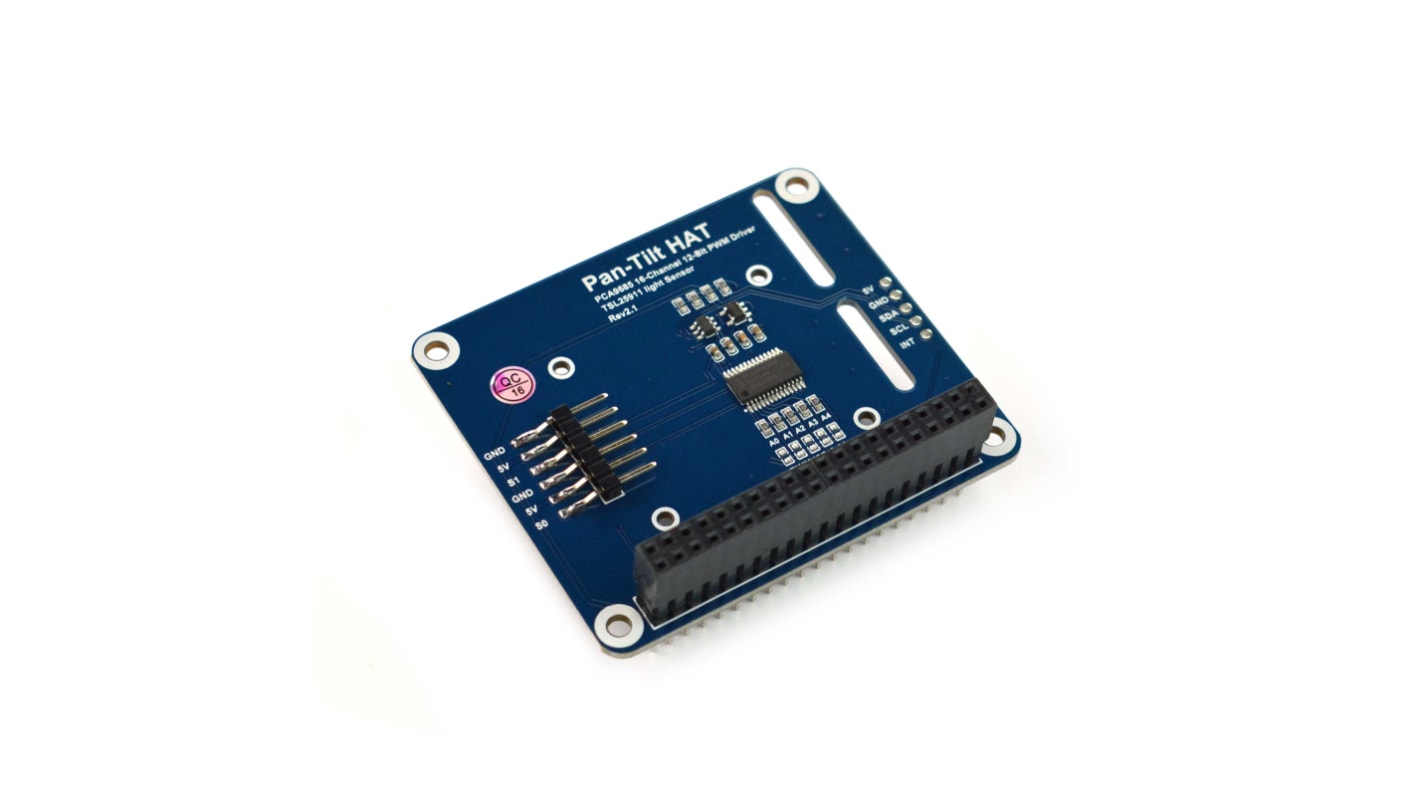

The DFRobot 2-DOF Pan-Tilt HAT based on Raspberry Pi 40PIN GPIO. It can directly be used once plugged into Pi board’s GPIO. Meanwhile, the board makes the Raspberry Pi GPIO pins led out for your convenient use. With I2C interface adopted, the module allows your Pi to control the camera movement and light intensity detection only using 2 signal lines. The on-board PCA9685 chip can output 12-bit resolution PWM to control the rotation of the pan-tilt. In addition, it comes with on-board TSL25911FN and built-in ADC that could make responses to light similar to human eyes, which is helpful for enhancing module performance
The on-board voltage level translators make it compatible with 3.3V/5V operating level. There is a specific acrylic board for fixing the Raspberry Pi camera on this product.
Operating voltage 3.3V/5V Control chip PCA9685 PWM resolution 12-bit Ambient light sensor TSL25911FN Ambient light resolution 12-bit Logic voltage 3.3V Communication I2C
