RF Solutions ZETAPLUS20-8S RF Module FM 868 MHz 3.6 V
- RS庫存編號:
- 264-7835
- 製造零件編號:
- ZETAPLUS20-8S
- 製造商:
- RF Solutions
可享批量折扣
小計（1 件）*
HK$121.90
添加 3 件 件可免費送貨
有庫存
- 加上 23 件從 2026年2月23日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$121.90 |
| 10 - 24 | HK$115.90 |
| 25 - 49 | HK$110.10 |
| 50 - 99 | HK$108.40 |
| 100 + | HK$106.30 |
* 參考價格
- RS庫存編號:
- 264-7835
- 製造零件編號:
- ZETAPLUS20-8S
- 製造商:
- RF Solutions
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RF Solutions | |
| Sub Type | Wireless & RF Module | |
| Product Type | RF Module | |
| Component Type | Transceiver | |
| Modulation Technique | FM | |
| Maximum RF Data Rate | 500kbps | |
| Frequency | 868MHz | |
| Maximum Output Power | 20dBm | |
| Mount Type | Surface | |
| Receiver Sensitivity | -132dBm | |
| Interface Type | UART, SPI | |
| Minimum Supply Voltage | 3.8V | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Length | 16.5mm | |
| Height | 11.75mm | |
| Width | 19.25 mm | |
| Standards/Approvals | RoHS 2011/65/EU | |
| 選取全部 | ||
|---|---|---|
品牌 RF Solutions | ||
Sub Type Wireless & RF Module | ||
Product Type RF Module | ||
Component Type Transceiver | ||
Modulation Technique FM | ||
Maximum RF Data Rate 500kbps | ||
Frequency 868MHz | ||
Maximum Output Power 20dBm | ||
Mount Type Surface | ||
Receiver Sensitivity -132dBm | ||
Interface Type UART, SPI | ||
Minimum Supply Voltage 3.8V | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Length 16.5mm | ||
Height 11.75mm | ||
Width 19.25 mm | ||
Standards/Approvals RoHS 2011/65/EU | ||
- COO (Country of Origin):
- GB

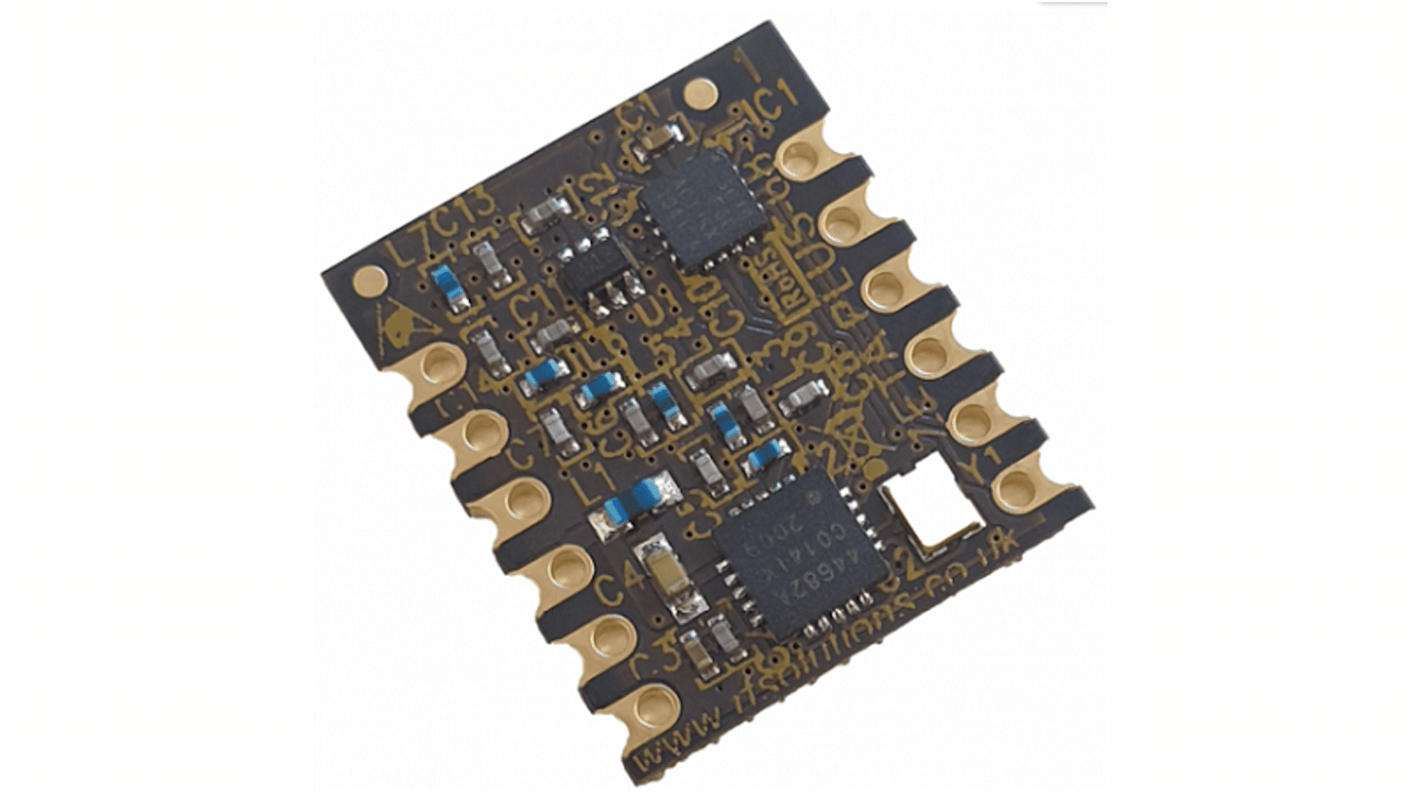

The RF Solutions ZETAPLUS20 Smart transceiver module makes a radio data link easy. With connection to power, comms and antenna, the user can start sending and receiving data immediately and no other external components are required. It is based on silicon labs Si4468 chipset. This transceivers are used for home automation, telemetry, keyless entry, health monitors, RF data comms, etc.
Up to 4 km range
User selectable data payload
Low power consumption
