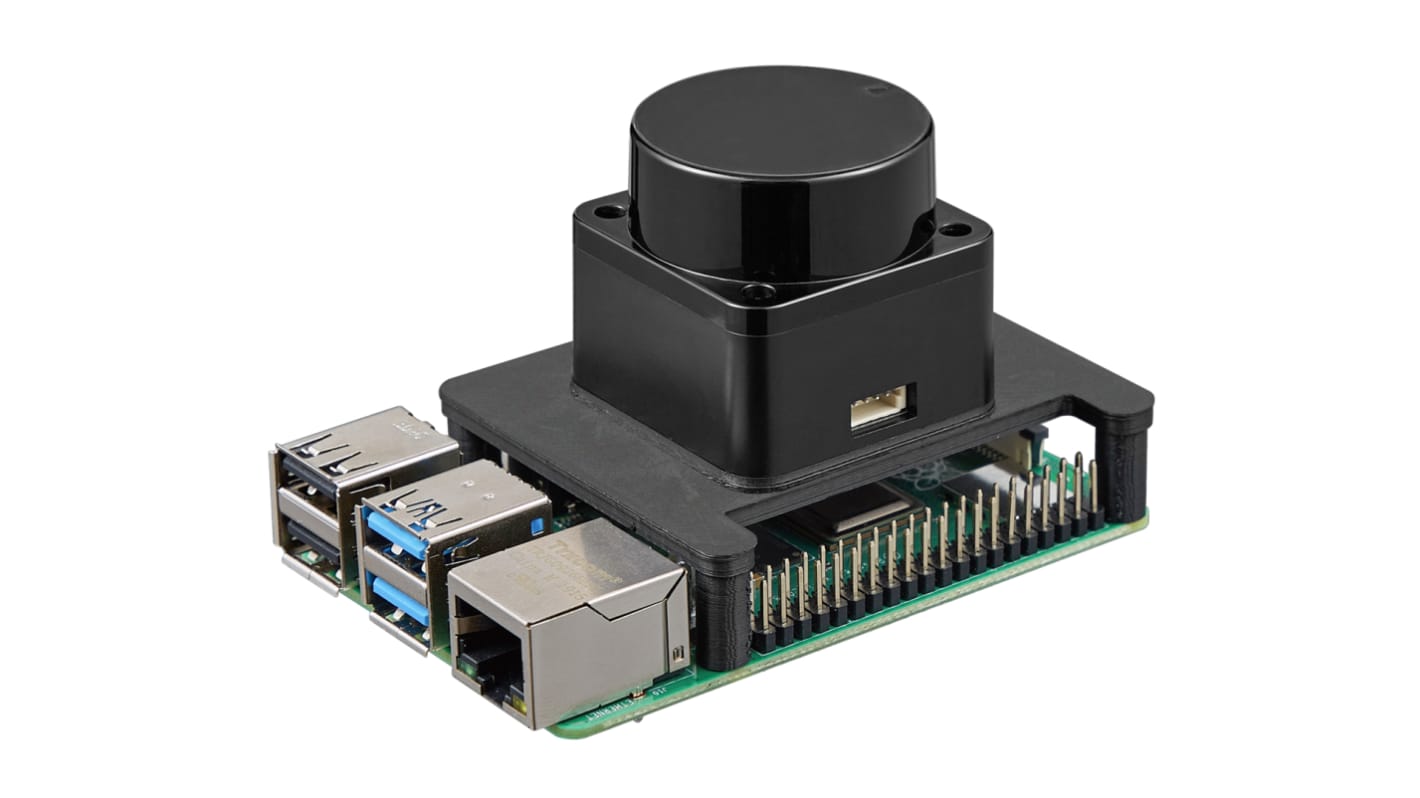

Okdo Lidar Module with Bracket Development Kit for LiDAR_LD06 Raspberry Pi SBC

查看所有Sensor Development Tools

小計（1 件）*

HK$453.30

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 198 個，準備發貨
單位
每單位
1 +HK$453.30

* 參考價格

RS庫存編號:
203-7609
製造零件編號:
54.010012
製造商:
Okdo
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Okdo

Featured Device

LiDAR_LD06

For Use With

Raspberry Pi SBC

Kit Classification

Development Kit

Kit Name

Lidar Module with Bracket

COO (Country of Origin):
CN
The LiDAR LD06 has adopted TOF (time of flight) ranging technology and can measure distance according to the laser pulse time of flight within a detection distance of 12 metres.
The LD06 uses first class algorithm logic to achieve 360 degrees environmental detection, autonomous map building and obstacle detection.
With high-speed wireless data transmission and brushless motors, the LD06 can last for up to 10000 hours.
The LD06 can achieve high-frequency and high-precision distance measurement and accurate map building indoors and outdoors.
The LD06 is fully compatible with Raspberry Pi3 A+/B+, Raspberry Pi3 B and Raspberry Pi 4B

Specifications:
Distance measuring range: 0.02mm – 12m
Scanning Frequency: 5-13 Hz
Ranging accuracy: 30mm
Ranging frequency: 4500Hz
Scanning Angle: 360 degrees
Size: 38 x 38 x 33 mm
