MikroElektronika Light Sensor Add On Board MikroBus
- RS庫存編號:
- 923-5993
- Distrelec 貨號:
- 301-54-909
- 製造零件編號:
- MIKROE-1424
- 製造商:
- MikroElektronika
可享批量折扣
小計（1 件）*
HK$178.70
訂單超過 HK$250.00 免費送貨
有庫存
- 22 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$178.70 |
| 5 - 9 | HK$175.20 |
| 10 + | HK$169.90 |
* 參考價格
- RS庫存編號:
- 923-5993
- Distrelec 貨號:
- 301-54-909
- 製造零件編號:
- MIKROE-1424
- 製造商:
- MikroElektronika
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | MikroElektronika | |
| Product Type | Sensor Development Tool | |
| Sensor Technology | Light Sensor | |
| For Use With | MikroBus | |
| Kit Classification | Add On Board | |
| Standards/Approvals | RoHS | |
| Distrelec Product Id | 301-54-909 | |
| 選取全部 | ||
|---|---|---|
品牌 MikroElektronika | ||
Product Type Sensor Development Tool | ||
Sensor Technology Light Sensor | ||
For Use With MikroBus | ||
Kit Classification Add On Board | ||
Standards/Approvals RoHS | ||
Distrelec Product Id 301-54-909 | ||
- COO (Country of Origin):
- RS

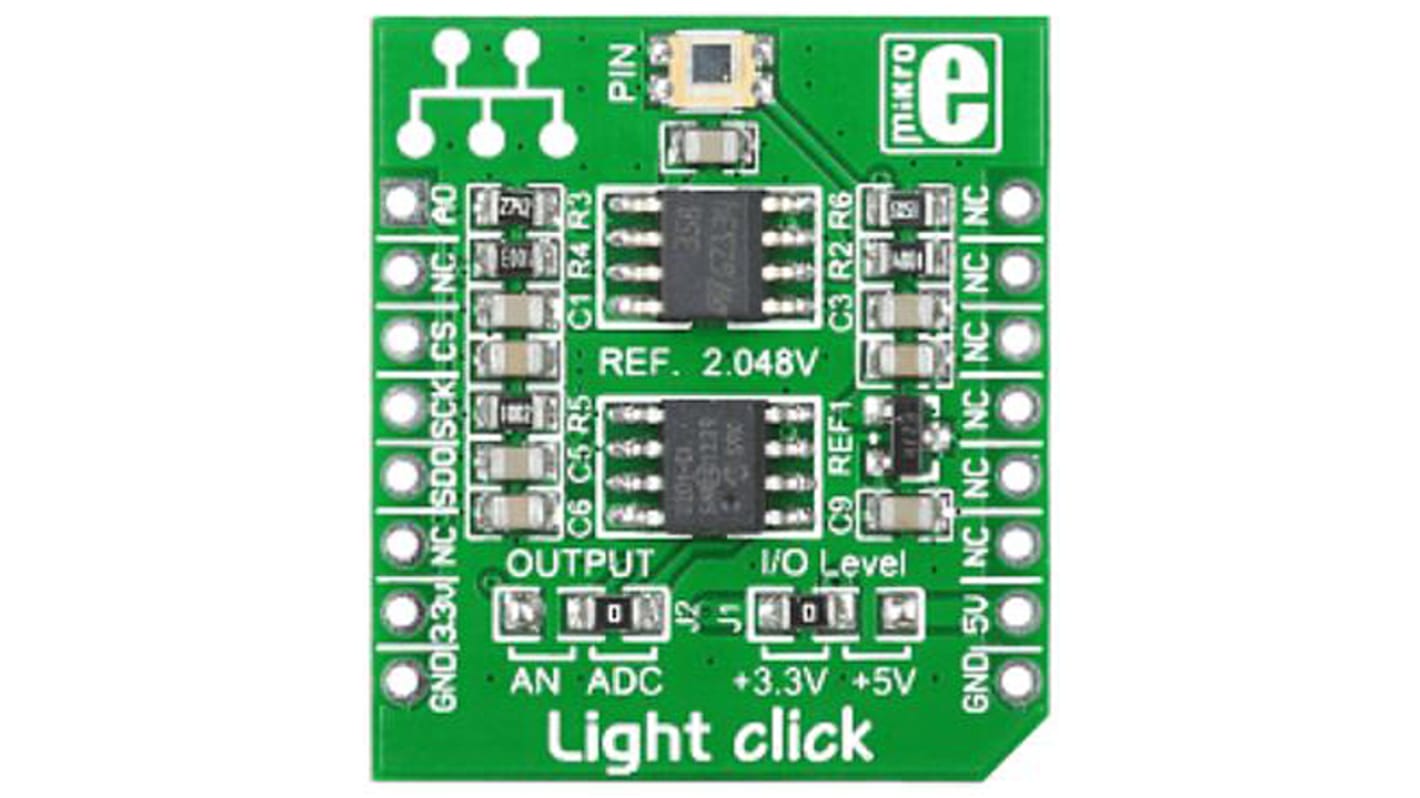

Light click mikroBUS™
The Click accessory modules plug into the mikroBUS™ sockets in MikroElektronika microcontroller development boards. The Light Click™ accessory board has an on board PIN photodiode that allows you to measure ambient light intensity. The board features an analogue to digital controller with SPI interface along with a voltage reference. The Light click board can have either a 3.3 V or 5 V power supply via the SMD jumper. Applications include high-speed photo detection, game machines and copiers.
Communication is through the mikroBUS™ SPI (MISO, SCK, CS) and AN lines
PIN photodiode: PD15-22CTR8 PIN photodiode (high photosensitive light sensor with fast response time)
Voltage reference: MAX6106 and ADC: MCP3201 (offers SPI communication)
Supported in MikroElektronika compilers
mikroBUS™ is a specially designed pinout standard with SPI, I2C, Analogue, UART, Interrupt, PWM, Reset and power supply pins
Click mikroBUS™ Sensor Boards
MikroElektronika has designed a range of boards to add new functions and enhance the development of your applications using the mikroBUS™ pinout standard socket. All in one click!
Click™ boards can add a range of sensing, Bluetooth, Wi-Fi, extra memory, UART communications, audio and much more functionality to your designs. Some boards also act as extensions for development platforms such as the Beaglebone, Arduino Uno and Raspberry Pi.
Note
Click board comes with the header strips soldered.
