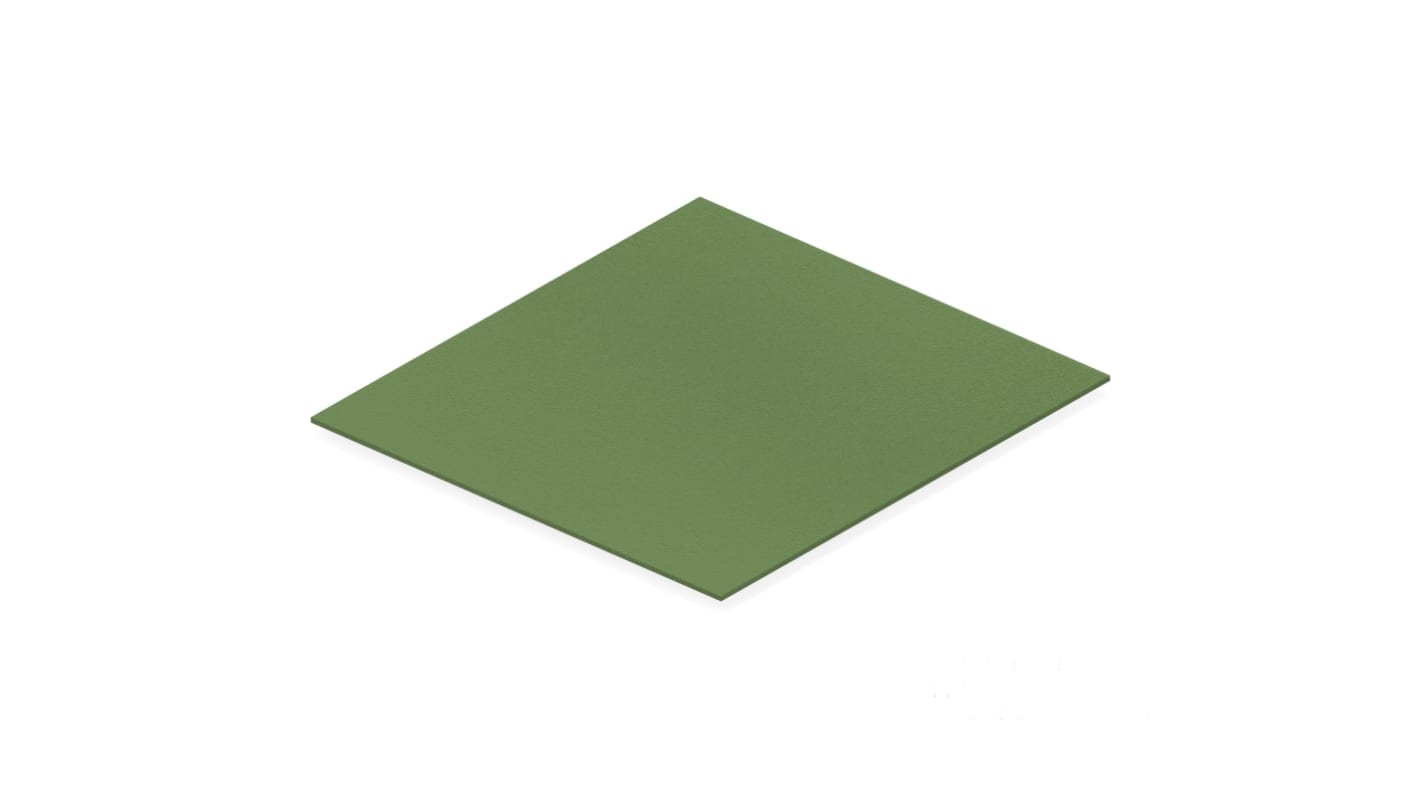

TE Connectivity Fluorosilicone Shielding Sheet, 150mm x 150mm x 1.2mm
- RS庫存編號:
- 255-7229
- 製造零件編號:
- 1210-FNG-0012
- 製造商:
- TE Connectivity
可享批量折扣
小計（1 件）*
HK$1,040.30
訂單超過 HK$250.00 免費送貨
最後的 RS 庫存
- 最終 8 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$1,040.30 |
| 5 + | HK$1,019.50 |
* 參考價格
- RS庫存編號:
- 255-7229
- 製造零件編號:
- 1210-FNG-0012
- 製造商:
- TE Connectivity
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | TE Connectivity | |
| Material | Fluorosilicone | |
| Fixing Method | Surface Mount | |
| Series | Kemtron 1210 | |
| Thickness | 1.2mm | |
| Length | 150mm | |
| Width | 150mm | |
| 選取全部 | ||
|---|---|---|
品牌 TE Connectivity | ||
Material Fluorosilicone | ||
Fixing Method Surface Mount | ||
Series Kemtron 1210 | ||
Thickness 1.2mm | ||
Length 150mm | ||
Width 150mm | ||
- COO (Country of Origin):
- GB
The TE Connectivity shielding sheet is used to reduce electromagnetic interference.It is a practice of reducing the electromagnetic field in a space with the help of barriers made up of conductive or magnetic materials.The conductive elastomers are fully cured silicones or fluorosilicone loaded with a variety of highly conductive particles providing superior EMI/RFI shielding performance combined with excellent environmental sealing. Sheet size-150mm sq x 1.2mm thick.
Conductive sheet
The sheet consist of a fluorosilicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 15 N/cm²
The sheet consist of a fluorosilicone as a binding material and nickel plated graphite as a filler material
Operating temperature ranges between -55 to 160 °C
Maximum volume resistivity is 0.05 Ω.cm
Closing Force is 15 N/cm²
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
