UVOX Silicone Shielding Sheet 900 mm x 100mm x 1.5 mm
- RS庫存編號:
- 772-0293
- 製造零件編號:
- WIS-1-1-015-100-NA
- 製造商:
- UVOX
可享批量折扣
查看批量定價選項小計（1 件）*
HK$691.40
訂單超過 HK$250.00 免費送貨
有庫存
- 1 件準備發貨
- 加上 146 件準備從其他倉庫發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$691.40 |
| 25 - 49 | HK$678.50 |
| 50 - 99 | HK$659.70 |
| 100 + | HK$640.00 |
* 參考價格
- RS庫存編號:
- 772-0293
- 製造零件編號:
- WIS-1-1-015-100-NA
- 製造商:
- UVOX
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | UVOX | |
| Product Type | Shielding Sheet | |
| Material | Silicone | |
| Fixing Method | Surface Mount | |
| Thickness | 1.5mm | |
| Length | 900mm | |
| Width | 100mm | |
| Minimum Operating Temperature | -65°C | |
| Shielding Effectiveness | 70dB | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | No | |
| Maximum Shielded Frequency | 1GHz | |
| Minimum Shielded Frequency | 200kHz | |
| 選取全部 | ||
|---|---|---|
品牌 UVOX | ||
Product Type Shielding Sheet | ||
Material Silicone | ||
Fixing Method Surface Mount | ||
Thickness 1.5mm | ||
Length 900mm | ||
Width 100mm | ||
Minimum Operating Temperature -65°C | ||
Shielding Effectiveness 70dB | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals No | ||
Maximum Shielded Frequency 1GHz | ||
Minimum Shielded Frequency 200kHz | ||

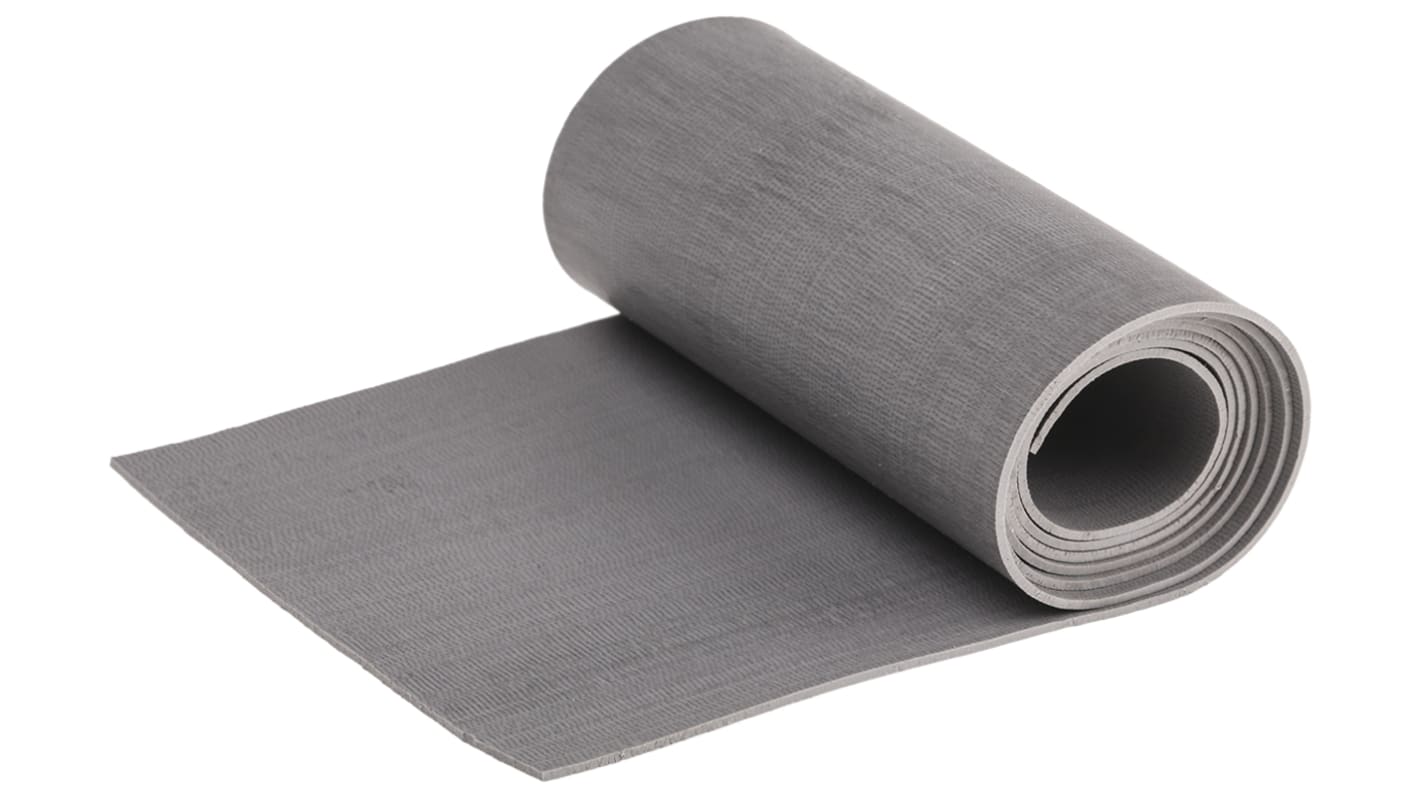

Wires Embedded in Silicone
A flat gasket material manufactured from Monel wires chemically bonded in a silicone elastomer perpendicular to its surface at a density of 140 point contacts per cm2.
This combination provides excellent electromagnetic attenuation through the low resistance, point to point wire contacts
Custom gaskets can easily be made by cutting with a blade
Environmental sealing up to IP65
Service temperature range -65°C to +200°C
Note
Gasket material suitable for use in applications requiring conformance with the Electromagnetic Compatibility Directive (EC Directive 89/336/EC)
