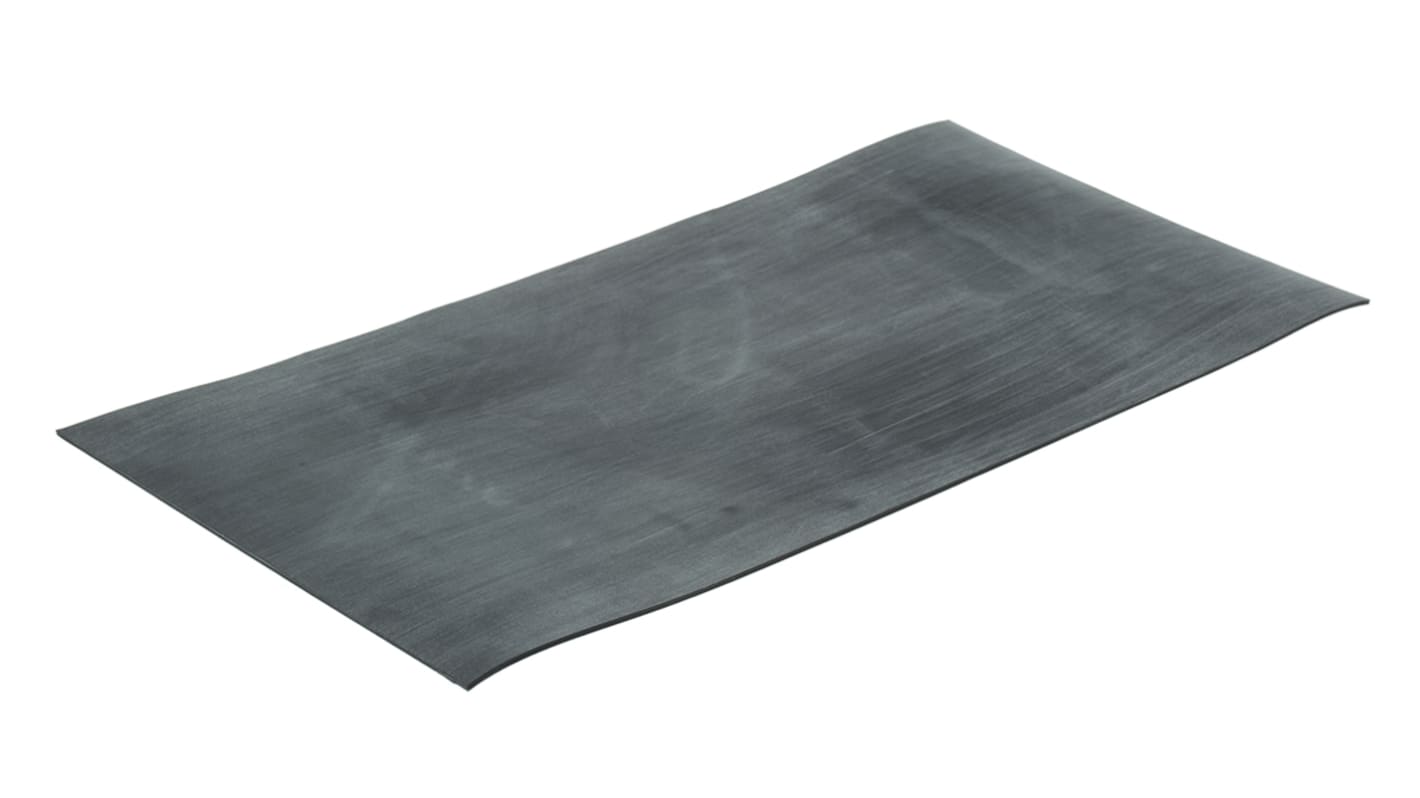

UVOX Carbon Silicone Shielding Sheet, 300mm x 150mm x 1.5mm
- RS庫存編號:
- 772-0316
- 製造零件編號:
- CLS-015-15X30
- 製造商:
- UVOX
查看所有Shielding Sheets
174 現貨庫存，可於3工作日發貨。
單價 個
原價 HK$118.06
您付款
HK$106.25
| 單位 | Per unit |
| 1 - 24 | HK$106.25 |
| 25 - 49 | HK$101.99 |
| 50 - 99 | HK$97.74 |
| 100 + | HK$95.62 |
- RS庫存編號:
- 772-0316
- 製造零件編號:
- CLS-015-15X30
- 製造商:
- UVOX
- COO (Country of Origin):
- GB
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Carbon-loaded Silicone
A carbon filled electrically conductive silicone elastomer which provides basic broadband electromagnetic shielding and grounding for electrostatic and corona charge grounding.
Silicone compound conforms to UL94HB
Volume resistivity 5-10 ohms/cm
Environmental sealing up to IP65
Service temperature range -55°C to +200°C
Supplied in 150 x 300 mm sheets, 1.5mm thick
Silicone compound conforms to UL94HB
Volume resistivity 5-10 ohms/cm
Environmental sealing up to IP65
Service temperature range -55°C to +200°C
Supplied in 150 x 300 mm sheets, 1.5mm thick
Note
Gasket material suitable for use in applications requiring conformance with the Electromagnetic Compatibility Directive (EC Directive 89/336/EC)
規格
| Attribute | Value |
| Material | Carbon Silicone |
| Fixing Method | Surface Mount |
| Thickness | 1.5mm |
| Length | 300mm |
| Width | 150mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +200°C |
| Operating Temperature Range | -40 → +200 °C |
| Peak Frequency | 10GHz |
| Minimum Shielded Frequency | 0.2MHz |
