Hongfa Europe GMBH PCB Signal Relay, 5V dc Coil, 2A, DPDT
- RS庫存編號:
- 176-2710
- 製造零件編號:
- HFD3/5-L2
- 製造商:
- Hongfa Europe GMBH

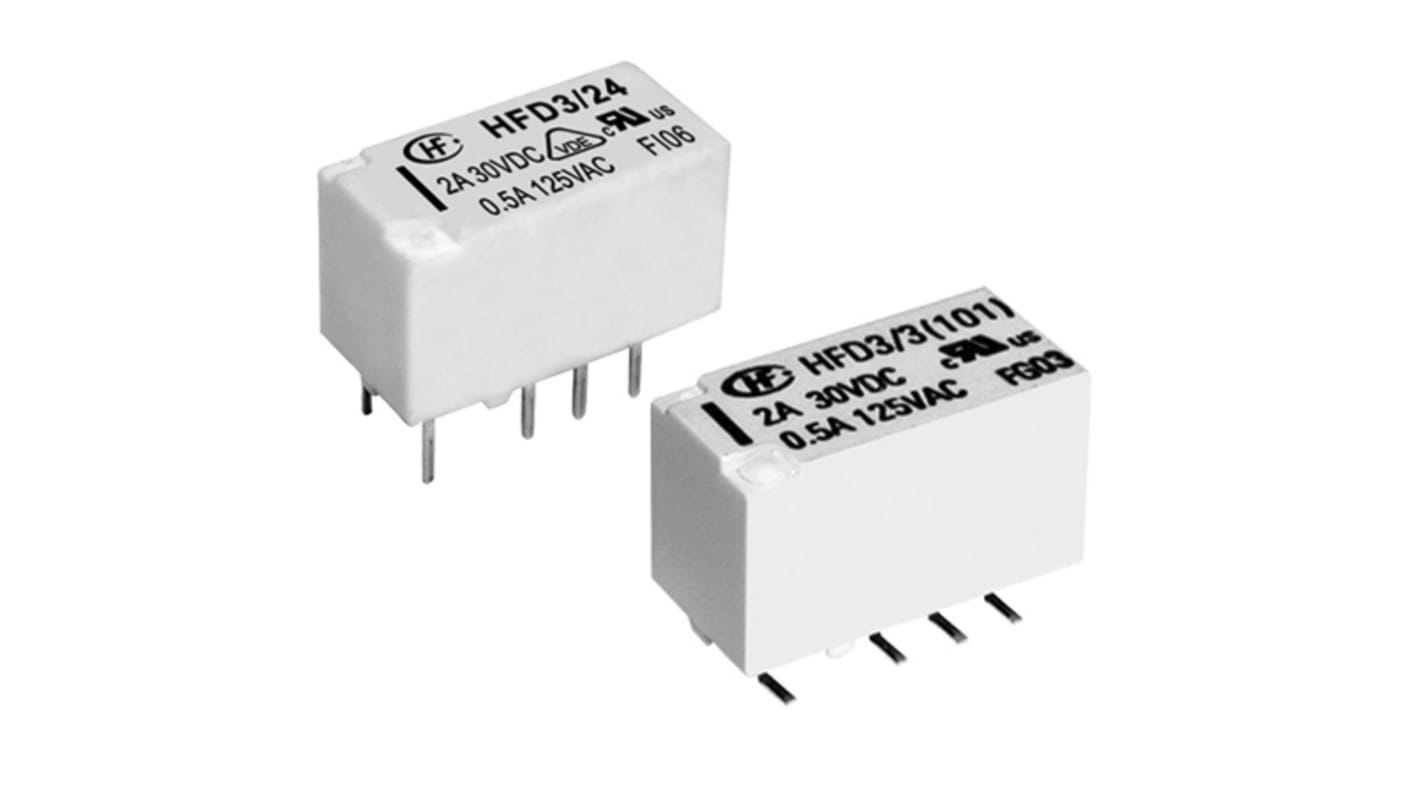

此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 管，共 40 件）*
HK$820.20
訂單超過 HK$250.00 免費送貨
有庫存
- 40 件準備從其他地點送貨
- 加上 2,720 件從 2026年6月25日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 | 每管* |
|---|---|---|
| 40 - 40 | HK$20.505 | HK$820.20 |
| 80 - 120 | HK$19.993 | HK$799.72 |
| 160 + | HK$19.685 | HK$787.40 |
* 參考價格
- RS庫存編號:
- 176-2710
- 製造零件編號:
- HFD3/5-L2
- 製造商:
- Hongfa Europe GMBH
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Hongfa Europe GMBH | |
| Product Type | Signal Relay | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mount Type | PCB | |
| Switching Current | 2A | |
| Switching AC Voltage | 277V ac | |
| Switching DC Voltage | 220V dc | |
| Series | HFD3 | |
| Switching Power | 90W | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 7.5mm | |
| Standards/Approvals | RoHS | |
| Length | 15mm | |
| Terminal Type | PCB Terminal | |
| Height | 9mm | |
| Contact Material | Silver Alloy | |
| Contact Resistance | 100mΩ | |
| Coil Resistance | 101Ω | |
| Coil Power | 200mW | |
| 選取全部 | ||
|---|---|---|
品牌 Hongfa Europe GMBH | ||
Product Type Signal Relay | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mount Type PCB | ||
Switching Current 2A | ||
Switching AC Voltage 277V ac | ||
Switching DC Voltage 220V dc | ||
Series HFD3 | ||
Switching Power 90W | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 7.5mm | ||
Standards/Approvals RoHS | ||
Length 15mm | ||
Terminal Type PCB Terminal | ||
Height 9mm | ||
Contact Material Silver Alloy | ||
Contact Resistance 100mΩ | ||
Coil Resistance 101Ω | ||
Coil Power 200mW | ||
- COO (Country of Origin):
- CN
Surge withstand voltage up to 2500VAC,
SMT and DIP types available
Bifurcated contacts
Single side stable and latching type available
Environmental friendly product
Outline Dimensions: (15.0 x 7.5 x 9.0) mm
