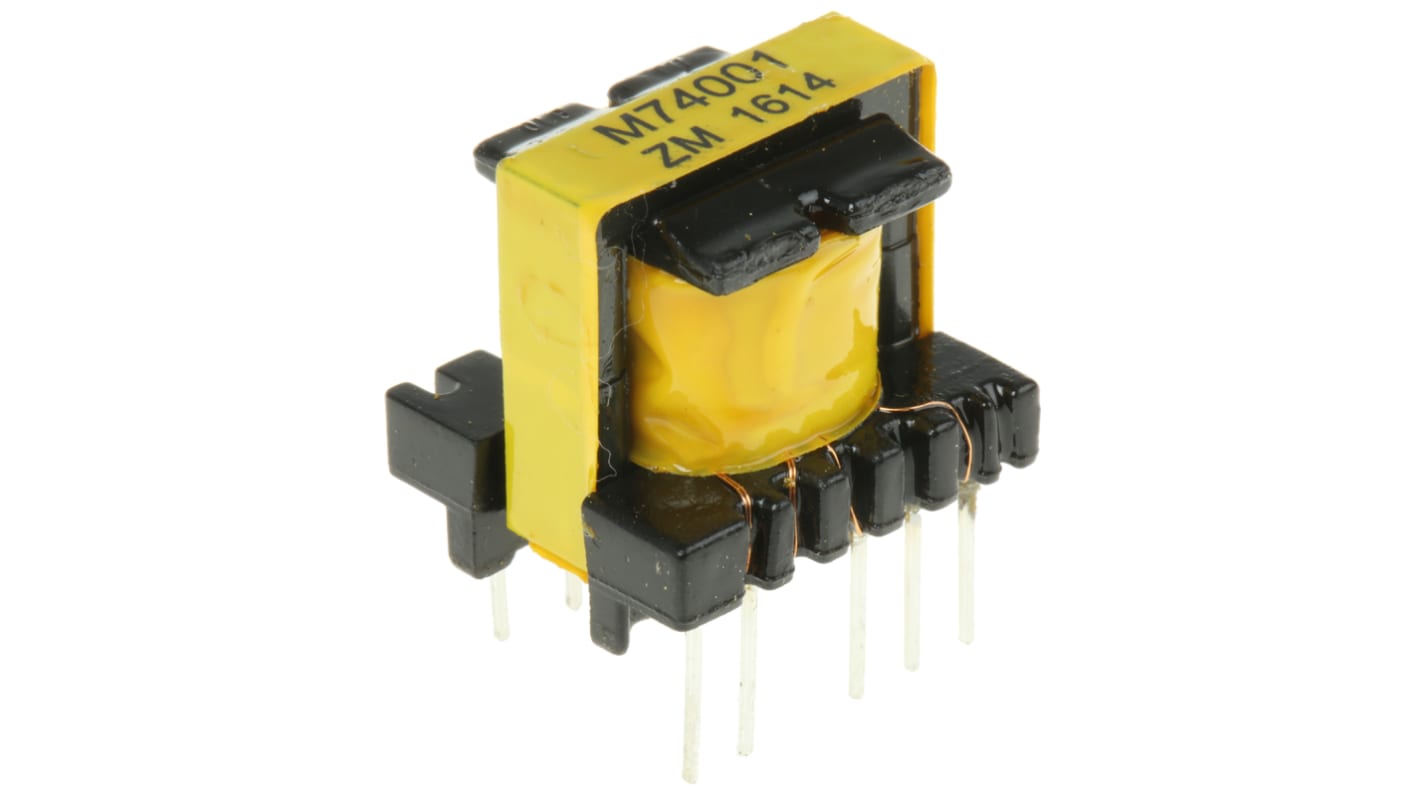

Myrra SMPS Transformer 10 W Output, 2 to 18 V dc, 3900 μH
- RS庫存編號:
- 418-5486
- 製造零件編號:
- 74001
- 製造商:
- Myrra
可享批量折扣
小計（1 件）*
HK$54.60
訂單超過 HK$250.00 免費送貨
有庫存
- 加上 39 件從 2026年5月04日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 24 | HK$54.60 |
| 25 - 49 | HK$53.20 |
| 50 - 99 | HK$51.80 |
| 100 - 249 | HK$50.50 |
| 250 + | HK$49.30 |
* 參考價格
- RS庫存編號:
- 418-5486
- 製造零件編號:
- 74001
- 製造商:
- Myrra
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Myrra | |
| Secondary Voltage | 2 to 18 V dc | |
| Product Type | SMPS Transformer | |
| Power | 10W | |
| Inductance | 3900μH | |
| Secondary Current | 2A | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CEI61558, CEI950, CEI335 | |
| Series | EE16 | |
| Isolation Voltage | 3750V ac | |
| Minimum Operating Frequency | 40kHz | |
| Maximum Operating Frequency | 100kHz | |
| 選取全部 | ||
|---|---|---|
品牌 Myrra | ||
Secondary Voltage 2 to 18 V dc | ||
Product Type SMPS Transformer | ||
Power 10W | ||
Inductance 3900μH | ||
Secondary Current 2A | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CEI61558, CEI950, CEI335 | ||
Series EE16 | ||
Isolation Voltage 3750V ac | ||
Minimum Operating Frequency 40kHz | ||
Maximum Operating Frequency 100kHz | ||
Switch mode power transformers format E16 & EL19, 1 W → 16 W
Transformers forming the core of a switch mode power supply, in association with a specialist circuit (VIPer, TOPSwitch, CoolSet, or control circuit + Mosfet).
The secondaries can be connected in series.
Materials comply with UL94-V0.
Open Frame - Laminated
PCB mounting mains transformers with a single 230Va.c. or twin 115Va.c. 50/60Hz primary winding. Independent secondary windings may be connected in series or parallel to give a wide range of output voltage and current options.
Double section metric bobbin construction
Full varnish impregnation
Standards
IEC 950, IEC 61558 for reinforced insulation
