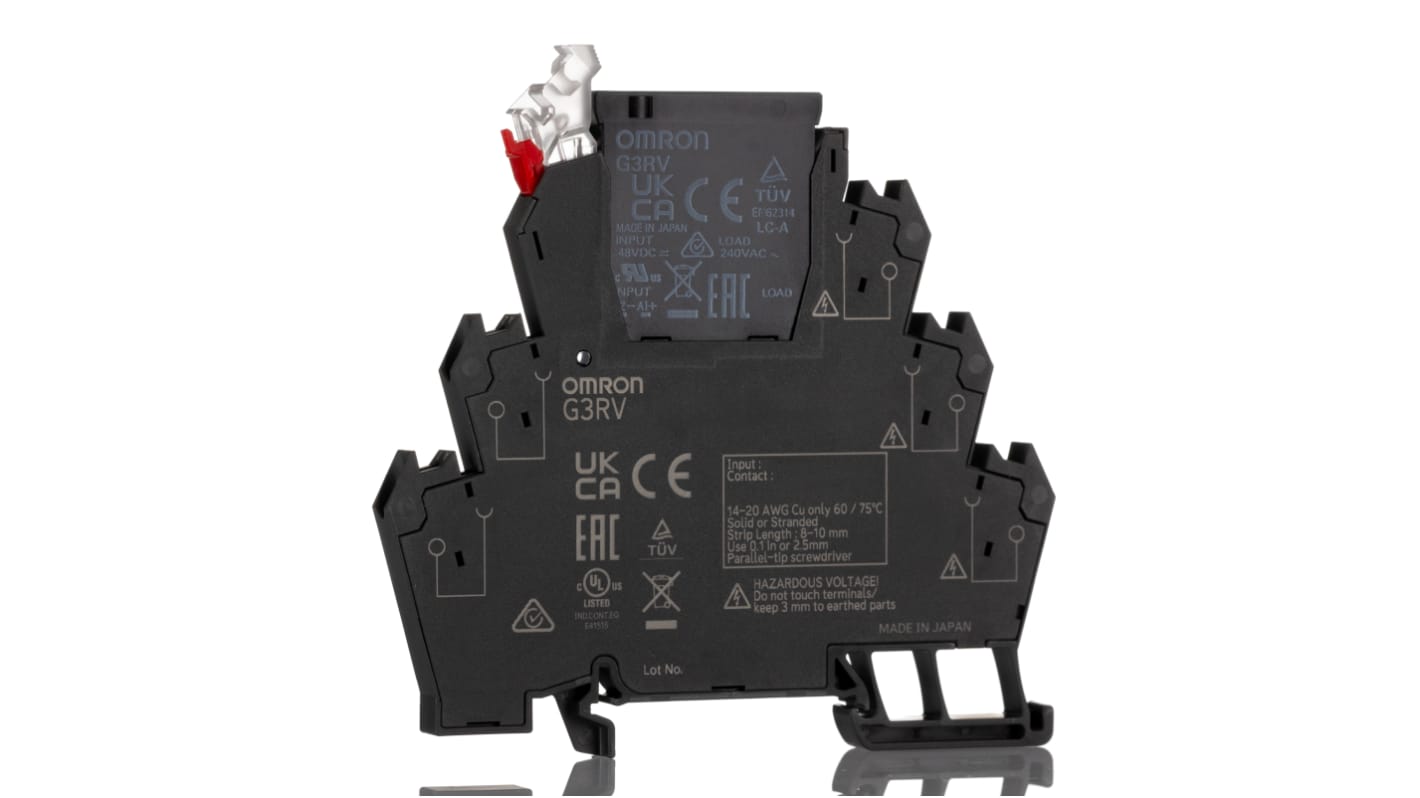

Omron G3RV-ST Series Solid State Interface Relay, 110 V ac Control, 3 A Load, DIN Rail Mount
- RS庫存編號:
- 271-1876
- 製造零件編號:
- G3RV-ST500-D AC110
- 製造商:
- Omron
Price 个**
HK$451.60
5 現貨庫存，可於3工作日發貨。*
* 交貨日期可能會根據您選擇的數量和交貨地址而變更。
訂單金額滿 HK$850.00 即可享受 免費 送貨服務
單位 | 每單位 |
|---|---|
| 1 + | HK$451.60 |
** 參考價格
- RS庫存編號:
- 271-1876
- 製造零件編號:
- G3RV-ST500-D AC110
- 製造商:
- Omron
- COO (Country of Origin):
- JP
Omron G3RV-ST Series Solid State Interface Relay, 2500V Isolation Voltage, SPDT - G3RV-ST500-D AC110
This solid state interface relay is designed to facilitate reliable switching of low-power signals in industrial control systems. With maximum 110V AC control voltage and a load current of 3A, it offers a dependable solution for interfacing between PLCs (Programmable Logic Controllers) or other control devices and external loads.
Features & Benefits
• Solid state relay technology for silent operation and long lifespan
• DIN rail mountable for convenient installation
• 2500V isolation voltage for added safety
• Optically isolated for enhanced noise immunity and reliability
• DIN rail mountable for convenient installation
• 2500V isolation voltage for added safety
• Optically isolated for enhanced noise immunity and reliability
Applications
• Used in industrial automation for switching signals between PLCs and peripheral devices
• Ideal for controlling small motors, solenoids, and other actuators
• Deployed in HVAC systems for switching signals in control panels
• Suitable for use in process control and manufacturing equipment
• Ideal for controlling small motors, solenoids, and other actuators
• Deployed in HVAC systems for switching signals in control panels
• Suitable for use in process control and manufacturing equipment
What is the input current?
This solid state interface relay has 6.7 mA input current.
What is the rise time of this relay?
Solid state relays has fast response time of 6 ms.
Is it suitable for harsh environments?
While solid state relays offer good resistance to shock, vibration, and humidity, ensure environmental conditions align with specified operating parameters for optimal performance and longevity.
Attribute | Value |
|---|---|
| Maximum Control Voltage | 110 V ac |
| Maximum Load Current | 3 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 26.4 Vdc |
| Minimum Control Voltage | 88 V |
| Control Voltage Range | 88 - 121 V |
| Switching Type | High-Speed |
| Contact Configuration | SPDT |
| Load Voltage Range | 3 - 26.4V |
| Minimum Load Voltage | 3 Vdc |
| Terminal Type | Push In |
| Number of Poles | 1 |
| Input Current | 6.7mA |
| Series | G3RV-ST |
| Length | 88mm |
| Height | 90mm |
| Minimum Load Current | 0.1 mA |
| Rise Time | 6ms |
| Width | 6.2mm |
| Output Device | MOSFET |
| Depth | 87.1mm |
| Minimum Operating Temperature | -30°C |
| Dimensions | 88 x 90 x 6.2mm |
| Maximum Operating Temperature | +55°C |
| Range | G3RV |
| Package Style | Carton Box |
| Maximum Turn On Time | 6 ms |
| Off State Leakage Current | 5 mA |
| Isolation Voltage | 2500V |
| Standards Met | CSA C22.2 No.14, EN 62314, IEC 60529, UL |
| Special Features | 60% Space Saving, Easy Maintenance |
| Operating Temperature Range | -30 → 55°C |
| Manufacturer Part No. | G3RV-ST500-D AC110 |
