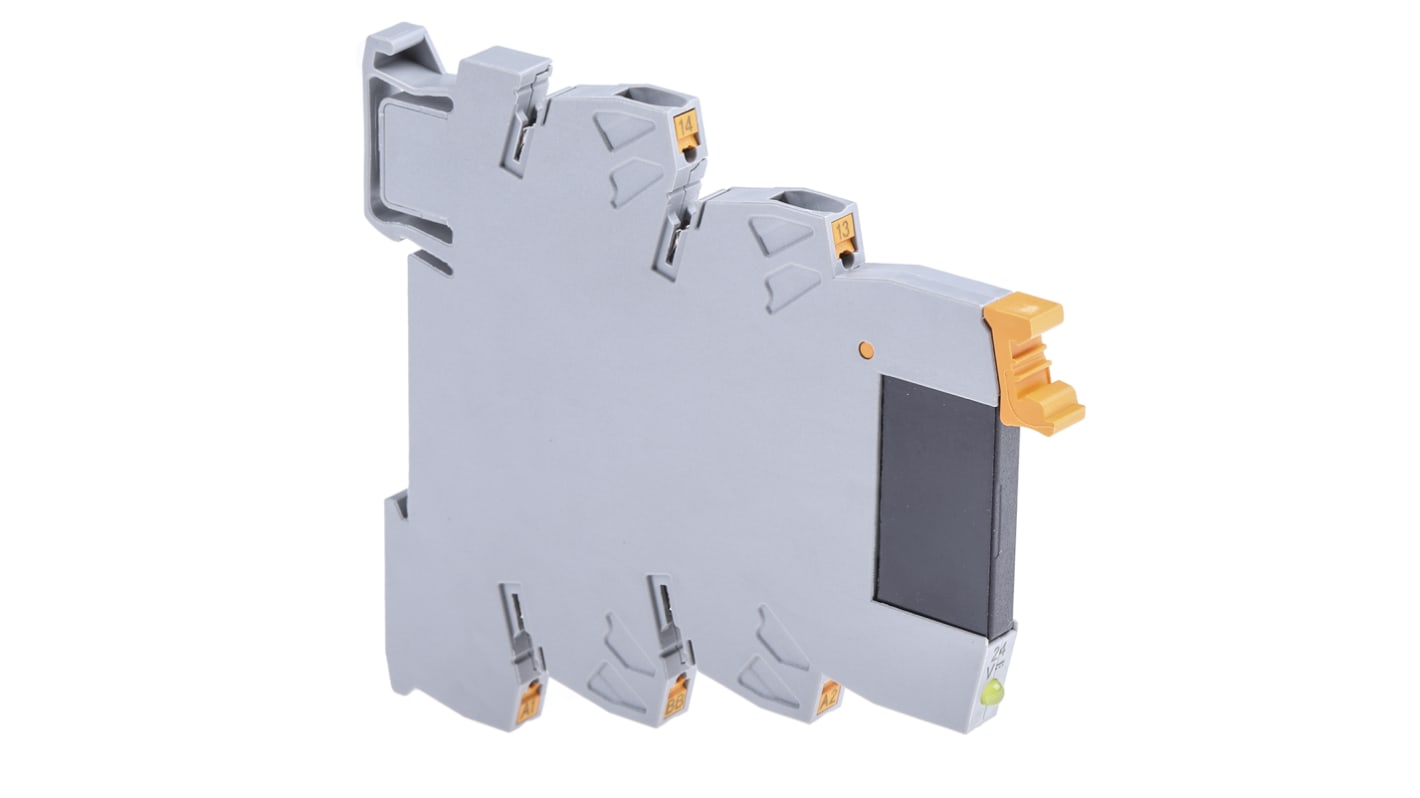

Phoenix Contact PLC-OPT- 24DC/ 48DC/100/SEN Series Solid State Interface Relay, DIN Rail Mount

RS庫存編號:: 711-4768
製造零件編號:: 2900358
製造商:: Phoenix Contact

Phoenix Contact PLC-OPT- 24DC/ 48DC/100/SEN Series Solid State Interface Relay, DIN Rail Mount

小計（1 件）*

HK$223.40

訂單超過 HK$250.00 免費送貨

有庫存

64 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$223.40

* 參考價格

RS庫存編號:: 711-4768
製造零件編號:: 2900358
製造商:: Phoenix Contact

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Phoenix Contact
	Mounting Type	DIN Rail
	Contact Configuration	SPST
	Terminal Type	Push In
	Number of Poles	1
	Input Current	8.5mA
	Height	80mm
	Length	94mm
	Depth	6.2mm
	Series	PLC-OPT- 24DC/ 48DC/100/SEN
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+60°C
	Dimensions	94 x 6.2 x 80mm
	Operating Temperature Range	-25 → +60°C
	Manufacturer Part No.	2900358

	選取全部
	品牌 Phoenix Contact
	Mounting Type DIN Rail
	Contact Configuration SPST
	Terminal Type Push In
	Number of Poles 1
	Input Current 8.5mA
	Height 80mm
	Length 94mm
	Depth 6.2mm
	Series PLC-OPT- 24DC/ 48DC/100/SEN
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +60°C
	Dimensions 94 x 6.2 x 80mm
	Operating Temperature Range -25 → +60°C
	Manufacturer Part No. 2900358

登入下載 CAD 模型

COO (Country of Origin):: DE

PLC-PT Universal Interface Relays with Push-In Terminal (PIT)

Universal Series can be used as either an input or an output device. Connection of sensors/actuators is via modular terminal blocks. Feather-light direct connection of conductors starting from 0.34 mm² without tools. The connection of small cross sections from 0.14 mm² is done using all common screwdrivers and the actuation lever. The gas-tight conductor contacting also fulfills special criteria, such as the vibration test in acc. with the railway standard EN 50155.

Features and Benefits:

Fast plug-in connection of the PLC and other peripherals
Gold-plated AgSnO terminals available
Solid State versions available

Applications:

PLC-OPT relay units are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.

Complete Line:

The PLC-OPT series is a part of Phoenix Contacts vast and comprehensive portfolio. Complete line is a solution from Phoenix Contact that gives you a full range of products that all go hand-in-hand to make a perfect control cabinet. It covers all bases from connections, switching and measuring all the way to controlling, supplying and automation. Choosing complete line products makes it far more efficient to get a cabinet working.
