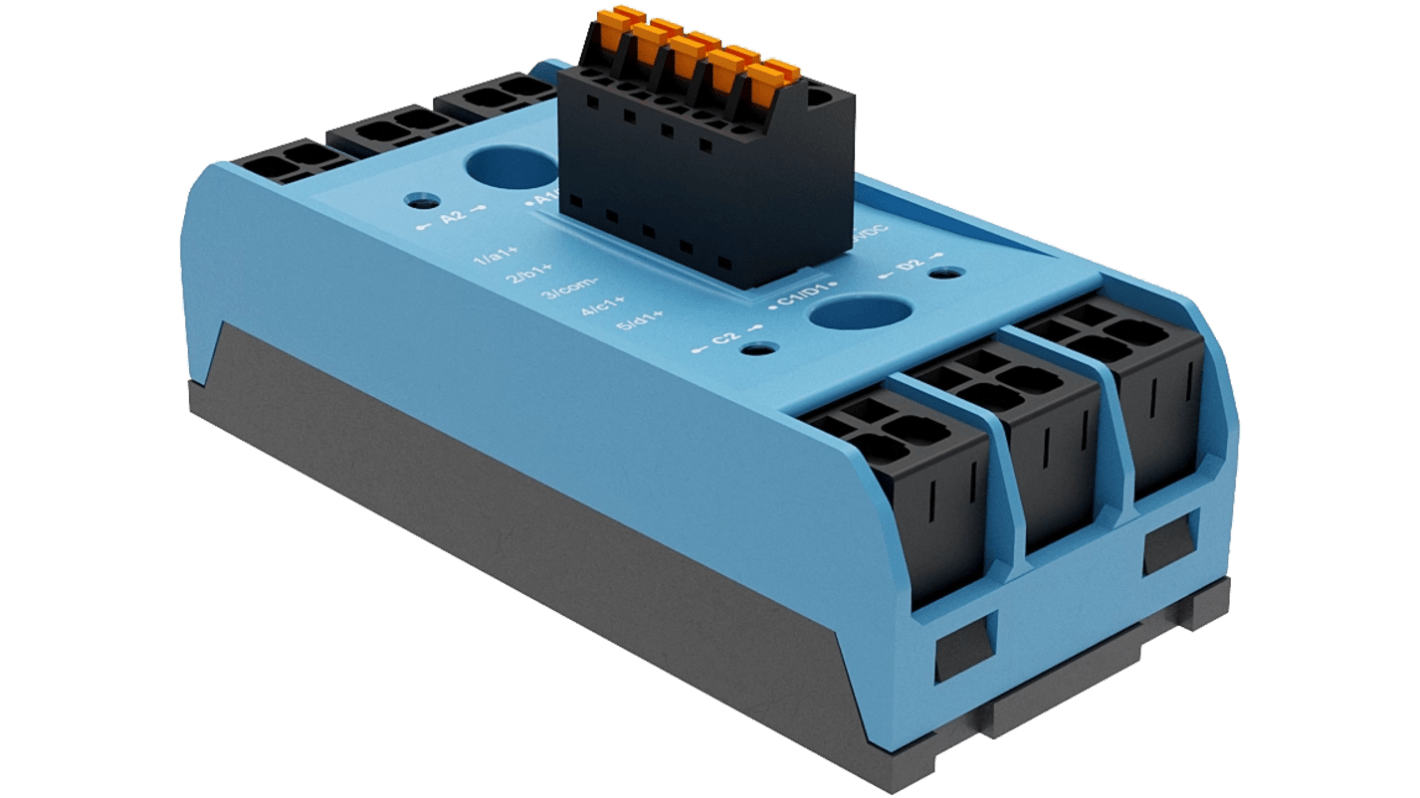

Celduc SMQR9 Series Solid State Relay, 25 A Load, Chassis Mount, 660 V ac Load, 30V dc Control
- RS庫存編號:
- 309-845
- 製造零件編號:
- SMQR9623410
- 製造商:
- Celduc
小計（1 件）*
HK$1,580.00
訂單超過 HK$250.00 免費送貨
有庫存
- 8 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$1,580.00 |
* 參考價格
- RS庫存編號:
- 309-845
- 製造零件編號:
- SMQR9623410
- 製造商:
- Celduc
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Celduc | |
| Maximum Load Current | 25A | |
| Product Type | Solid State Relay | |
| Mount Type | Chassis | |
| Maximum Load Voltage | 660V ac | |
| Minimum Load Voltage | 24V ac | |
| Maximum Control Voltage | 30V dc | |
| Minimum Control Voltage | 10V dc | |
| Series | SMQR9 | |
| Terminal Type | Push-in | |
| IP Rating | IP20 | |
| On State Resistance | 20mΩ | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | Zero Cross | |
| Maximum Operating Temperature | 80°C | |
| Width | 45mm | |
| Length | 48.1mm | |
| Height | 27.7mm | |
| Standards/Approvals | UKCA, IEC/EN60947-4-3, IEC62314, IEC60335-1/VDE0700-1, cRUus, CE | |
| Off State Leakage Current | 1mA | |
| 選取全部 | ||
|---|---|---|
品牌 Celduc | ||
Maximum Load Current 25A | ||
Product Type Solid State Relay | ||
Mount Type Chassis | ||
Maximum Load Voltage 660V ac | ||
Minimum Load Voltage 24V ac | ||
Maximum Control Voltage 30V dc | ||
Minimum Control Voltage 10V dc | ||
Series SMQR9 | ||
Terminal Type Push-in | ||
IP Rating IP20 | ||
On State Resistance 20mΩ | ||
Minimum Operating Temperature -40°C | ||
Switching Function Zero Cross | ||
Maximum Operating Temperature 80°C | ||
Width 45mm | ||
Length 48.1mm | ||
Height 27.7mm | ||
Standards/Approvals UKCA, IEC/EN60947-4-3, IEC62314, IEC60335-1/VDE0700-1, cRUus, CE | ||
Off State Leakage Current 1mA | ||
- COO (Country of Origin):
- FR
The IWIS Solid State Contactor utilizes advanced semiconductor technology to switch AC circuits, offering a seamless, maintenance-free alternative to traditional mechanical contactors. It is specifically engineered for resistive loads in AC applications, where precise and efficient switching is crucial.
Zero Cross Switching
Green LED Visualization
