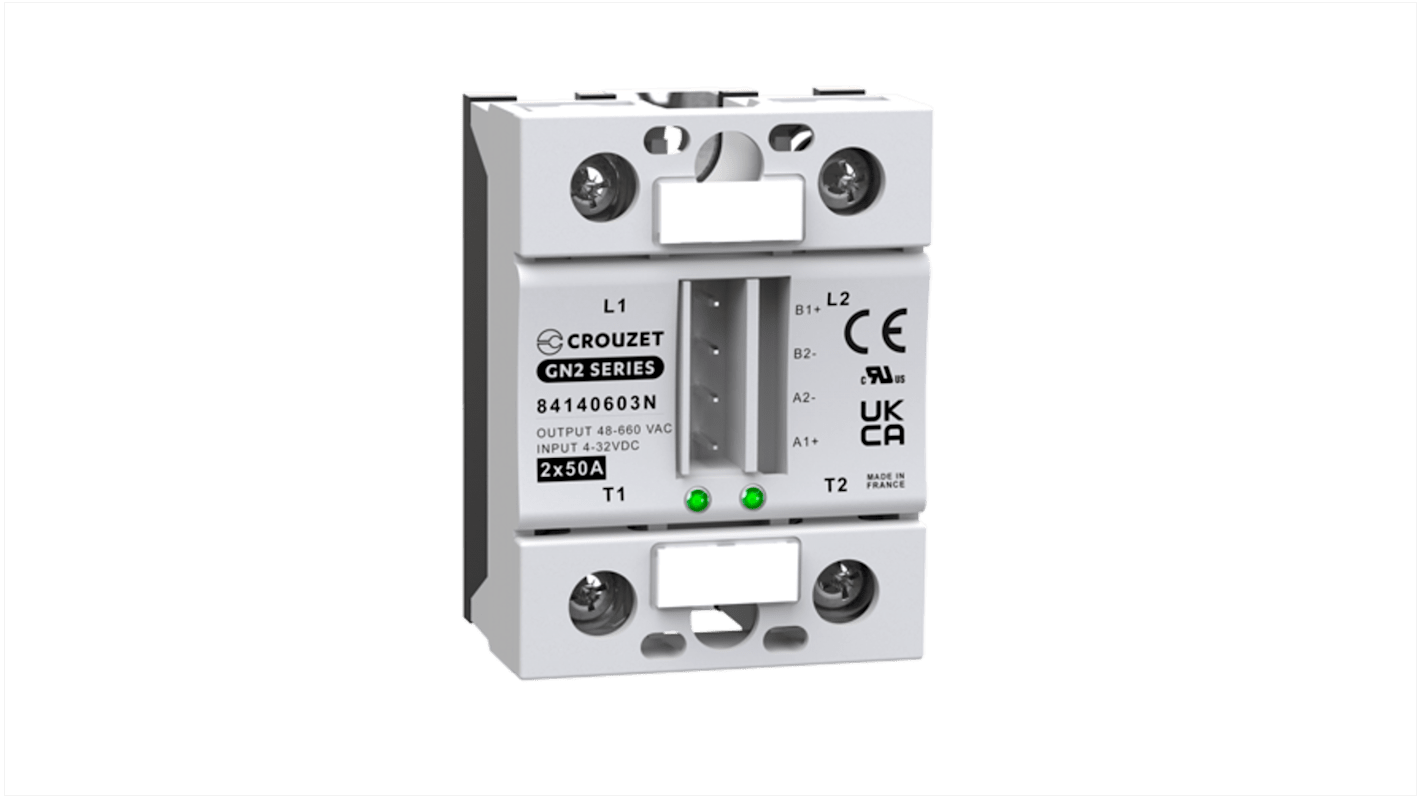

Crouzet GN2 Series Solid State Relay, 50 A Load, Panel Mount, 660 Vrms Load, 32V Control
- RS庫存編號:
- 233-2483
- Distrelec 貨號:
- 302-36-878
- 製造零件編號:
- 84140603N
- 製造商:
- Crouzet
小計（1 盒，共 1 件）*
HK$838.80
訂單超過 HK$250.00 免費送貨
有庫存
- 7 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
箱 | 每盒 |
|---|---|
| 1 + | HK$838.80 |
* 參考價格
- RS庫存編號:
- 233-2483
- Distrelec 貨號:
- 302-36-878
- 製造零件編號:
- 84140603N
- 製造商:
- Crouzet
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Crouzet | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 50A | |
| Mount Type | Panel | |
| Maximum Load Voltage | 660Vrms | |
| Minimum Load Voltage | 48Vrms | |
| Maximum Control Voltage | 32V | |
| Minimum Control Voltage | 4V | |
| Series | GN2 | |
| Terminal Type | Screw | |
| IP Rating | IP00, IP20 | |
| Contact Configuration | SPST-NO | |
| Switching Function | AC Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | RoHS, UKCA, CE, cURus | |
| Length | 59.4mm | |
| Height | 29.1mm | |
| Width | 44.8 mm | |
| Output Type | Triac | |
| Off State Leakage Current | 1mA | |
| 選取全部 | ||
|---|---|---|
品牌 Crouzet | ||
Product Type Solid State Relay | ||
Maximum Load Current 50A | ||
Mount Type Panel | ||
Maximum Load Voltage 660Vrms | ||
Minimum Load Voltage 48Vrms | ||
Maximum Control Voltage 32V | ||
Minimum Control Voltage 4V | ||
Series GN2 | ||
Terminal Type Screw | ||
IP Rating IP00, IP20 | ||
Contact Configuration SPST-NO | ||
Switching Function AC Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals RoHS, UKCA, CE, cURus | ||
Length 59.4mm | ||
Height 29.1mm | ||
Width 44.8 mm | ||
Output Type Triac | ||
Off State Leakage Current 1mA | ||
- COO (Country of Origin):
- FR
The Crouzet consists of GN2 series panel mount Dual channel Classic solid state relays. These Crouzet solid state relays are designed to be used in almost any application, offering very long life expectancy and are easy to install, easy to use, robust and multipurpose.
cRUus, CE and UKCA recognized
Operating temperature range is -40 to +80 °C
LED green input status indicator
