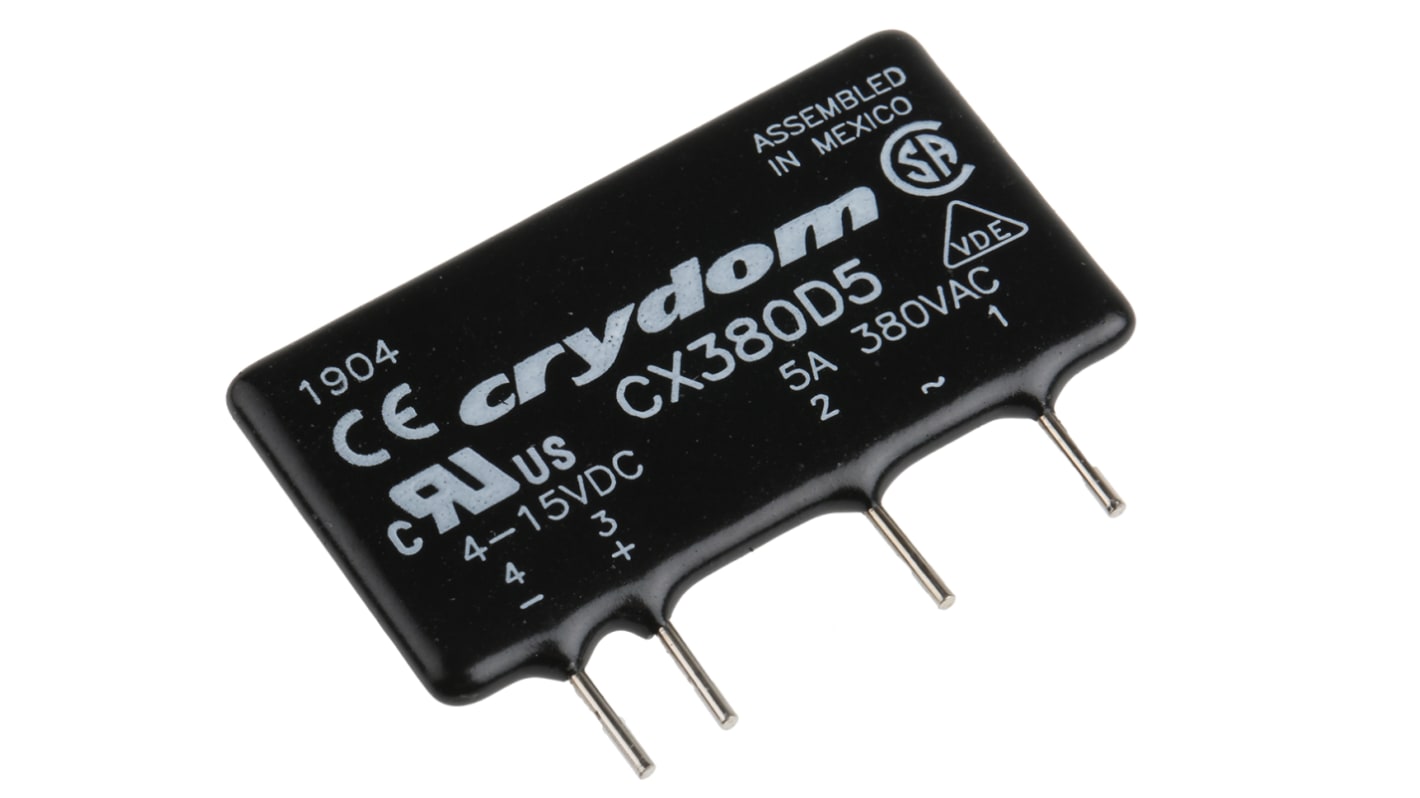

Sensata Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 530 V ac Load, 15 V dc Control

RS庫存編號:: 291-2387
Distrelec 貨號:: 137-41-204
製造零件編號:: CX380D5
製造商:: Sensata / Crydom

Sensata Crydom CX Series Solid State Relay, 5 A Load, PCB Mount, 530 V ac Load, 15 V dc Control

查看所有Solid State Relays

可享批量折扣

小計（1 件）*

HK$203.40

訂單超過 HK$250.00 免費送貨

有庫存

22 件準備從其他地點送貨
加上 120 件從 2025年12月23日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$203.40
10 - 99	HK$199.80
100 +	HK$194.80

* 參考價格

RS庫存編號:: 291-2387
Distrelec 貨號:: 137-41-204
製造零件編號:: CX380D5
製造商:: Sensata / Crydom

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Sensata / Crydom
	Maximum Load Current	5 A
	Mounting Type	PCB Mount
	Maximum Load Voltage	530 V ac
	Minimum Load Voltage	48 V ac
	Minimum Control Voltage	4 V dc
	Maximum Control Voltage	15 V dc
	Switching Type	Zero Cross
	Control Voltage Range	4 → 15 V dc
	Range	Crydom
	Minimum Load Current	0.06 A
	Terminal Type	PCB Pin
	Output Device	SCR
	Relay Type	Solid State Relay
	Series	CX
	Load Voltage Range	48 → 530V ac
	Maximum Turn On Time	1/2 Cycle
	Dimensions	43.1 x 7.6 x 25.4mm
	Capacitance	10pF
	Off State Leakage Current	0.1 mArms
	Length	43.1mm
	Operating Temperature Range	-30 → +80°C
	Depth	7.6mm
	Standards Met	CE, CSA, RoHS Compliant
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-30°C
	Height	25.4mm

	選取全部
	品牌 Sensata / Crydom
	Maximum Load Current 5 A
	Mounting Type PCB Mount
	Maximum Load Voltage 530 V ac
	Minimum Load Voltage 48 V ac
	Minimum Control Voltage 4 V dc
	Maximum Control Voltage 15 V dc
	Switching Type Zero Cross
	Control Voltage Range 4 → 15 V dc
	Range Crydom
	Minimum Load Current 0.06 A
	Terminal Type PCB Pin
	Output Device SCR
	Relay Type Solid State Relay
	Series CX
	Load Voltage Range 48 → 530V ac
	Maximum Turn On Time 1/2 Cycle
	Dimensions 43.1 x 7.6 x 25.4mm
	Capacitance 10pF
	Off State Leakage Current 0.1 mArms
	Length 43.1mm
	Operating Temperature Range -30 → +80°C
	Depth 7.6mm
	Standards Met CE, CSA, RoHS Compliant
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -30°C
	Height 25.4mm

登入下載 CAD 模型

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 4000Vrms Dielectric Strength, 10pF I/O Capacitance - CX Series - CX380D5

Looking for a device to control electrical loads in your industrial machinery? Turn to this solid-state relay from Sensata | Crydom. As it doesn't have any moving parts, there's minimal chance of wear, giving you long-lasting performance. A dielectric strength of 4000Vrms means this component is insulated against high voltages for peace of mind. As you can solder its pins firmly into place on your PCB, you can rest assured it stands strong in the face of heavy vibrations. SSRs like this are found in furnaces and medical equipment.

Features & Benefits

• Safe for use in challenging settings, thanks to a broad operating temperature range between -10°C and +80°C
• Wide operating voltage range between 48 and 530V AC for use in low and medium-power applications
• Light weight of 11g to place minimal strain on your equipment
• Zero-cross switching means it turns on when the voltage in near 0V to minimise electrical noise

What kind of encapsulation does this component have?

The component has a thermally conductive epoxy encapsulation that helps to dissipate heat, so the relay keeps its cool in harsh conditions.

Approvals

UL; CSA; VDE
