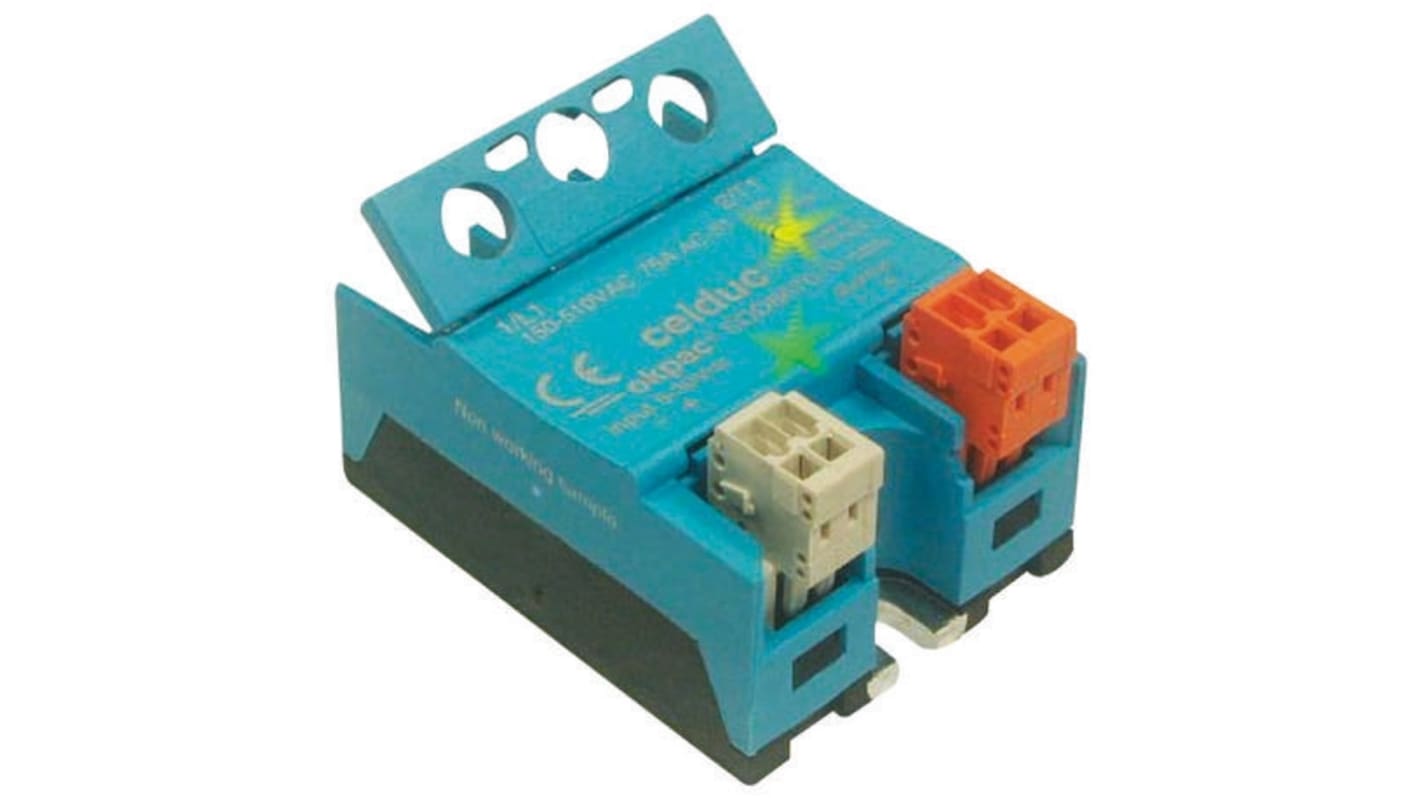

Celduc Solid State Relay, 50 A Load, DIN Rail Mount, 275 V Load, 30V Control
- RS庫存編號:
- 499-0806
- 製造零件編號:
- SOD845180
- 製造商:
- Celduc
此圖片僅供參考，請參閲產品詳細資訊及規格
可享批量折扣
查看批量定價選項小計（1 件）*
HK$796.00
訂單超過 HK$250.00 免費送貨
有庫存
- 21 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 4 | HK$796.00 |
| 5 - 9 | HK$771.50 |
| 10 + | HK$738.20 |
* 參考價格
- RS庫存編號:
- 499-0806
- 製造零件編號:
- SOD845180
- 製造商:
- Celduc
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Celduc | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 50A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 275V | |
| Minimum Load Voltage | 50V ac | |
| Maximum Control Voltage | 30V | |
| Minimum Control Voltage | 3V | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Contact Configuration | SPST | |
| On State Resistance | 16mΩ | |
| Minimum Operating Temperature | -55°C | |
| Switching Function | Zero Cross Switching | |
| Maximum Operating Temperature | 100°C | |
| Length | 59.4mm | |
| Width | 44.8mm | |
| Height | 30mm | |
| Standards/Approvals | VDE, UKCA, RoHS, EAC, cURus, CSA, CE | |
| Output Type | Triac | |
| Off State Leakage Current | 1mA | |
| 選取全部 | ||
|---|---|---|
品牌 Celduc | ||
Product Type Solid State Relay | ||
Maximum Load Current 50A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 275V | ||
Minimum Load Voltage 50V ac | ||
Maximum Control Voltage 30V | ||
Minimum Control Voltage 3V | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Contact Configuration SPST | ||
On State Resistance 16mΩ | ||
Minimum Operating Temperature -55°C | ||
Switching Function Zero Cross Switching | ||
Maximum Operating Temperature 100°C | ||
Length 59.4mm | ||
Width 44.8mm | ||
Height 30mm | ||
Standards/Approvals VDE, UKCA, RoHS, EAC, cURus, CSA, CE | ||
Output Type Triac | ||
Off State Leakage Current 1mA | ||
- COO (Country of Origin):
- FR
Solid state relay with diagnostic output
Solid state power relay with charge, network and relay output diagnostics.
TMS2 technology thyristor output ensures longevity.
Input 7 → 30 Vdc with green LED control indicator.
N/C static state contact
Very low synchronism level.
Spring-technology pull-out input connectors.
Solid state relays must be mounted on a heatsink.
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Standards
EN60947-4-3
