製造零件編號

Keithley 2601B Series Source Meter, 100 mV → 40 V, 1-Channel, 100 nA - 10 A, 40.4 W Output

RS庫存編號:: 201-7019
製造零件編號:: 2601B-Pulse
製造商:: Keithley

Keithley 2601B Series Source Meter, 100 mV → 40 V, 1-Channel, 100 nA - 10 A, 40.4 W Output

小計（1 件）*

HK$220,473.40

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年2月04日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$220,473.40

* 參考價格

RS庫存編號:: 201-7019
製造零件編號:: 2601B-Pulse
製造商:: Keithley

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Keithley
	Series	2601B
	Source Meter Function	Pulser, Source Measure Unit
	Number of Channels	1
	Source Voltage Range	100 mV → 40 V
	Source Current Range	100 nA - 10 A
	Output Power	40.4 W
	Resistance Measurement Range	0.5 Ω → 100 Ω, SMU : 1 kΩ

	選取全部
	品牌 Keithley
	Series 2601B
	Source Meter Function Pulser, Source Measure Unit
	Number of Channels 1
	Source Voltage Range 100 mV → 40 V
	Source Current Range 100 nA - 10 A
	Output Power 40.4 W
	Resistance Measurement Range 0.5 Ω → 100 Ω, SMU : 1 kΩ

Datasheet - 2601B-Pulse

COO (Country of Origin):: CN

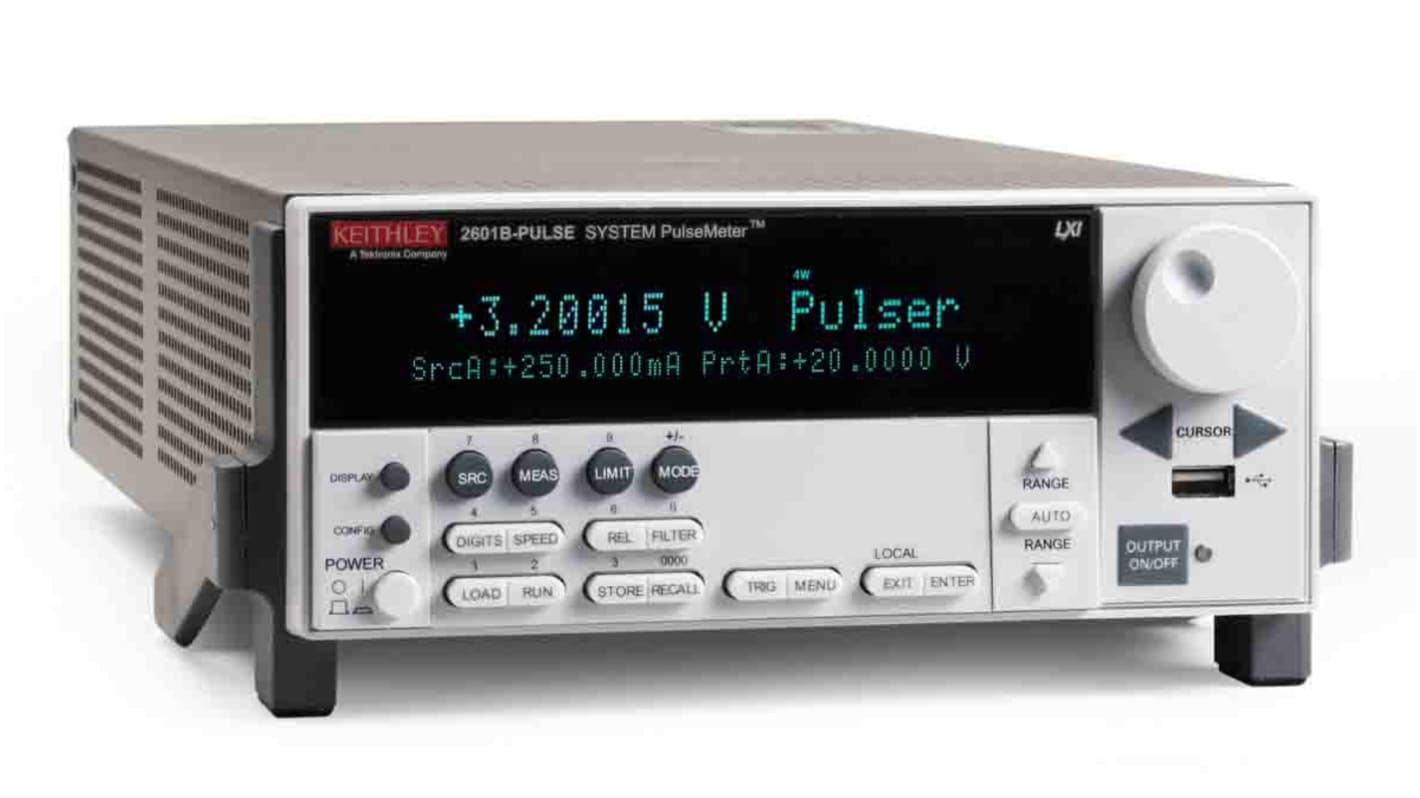

The Keithley instrument 10 μsec Pulsar or can be called as a source measure unit (SMU) instrument is a high current/high speed pulsar with measure and also the full functionality of a traditional SMU. It offers leading 10 A current pulse output at 10 V with a pulse width minimum of 10 μs. It has built-in dual 1 Mega sample/second (MS/s), 18-bit digitizers which obtains both pulse current and voltage waveforms simultaneously without using any separate instrument.

For inductive loads up to 3 μH tuning is not necessary
It has TSP (Test Script Processing) technology which embeds complete test programs inside the instrument
Self-heating of the instrument is minimum also it minimizes the effect of burned probe tips
