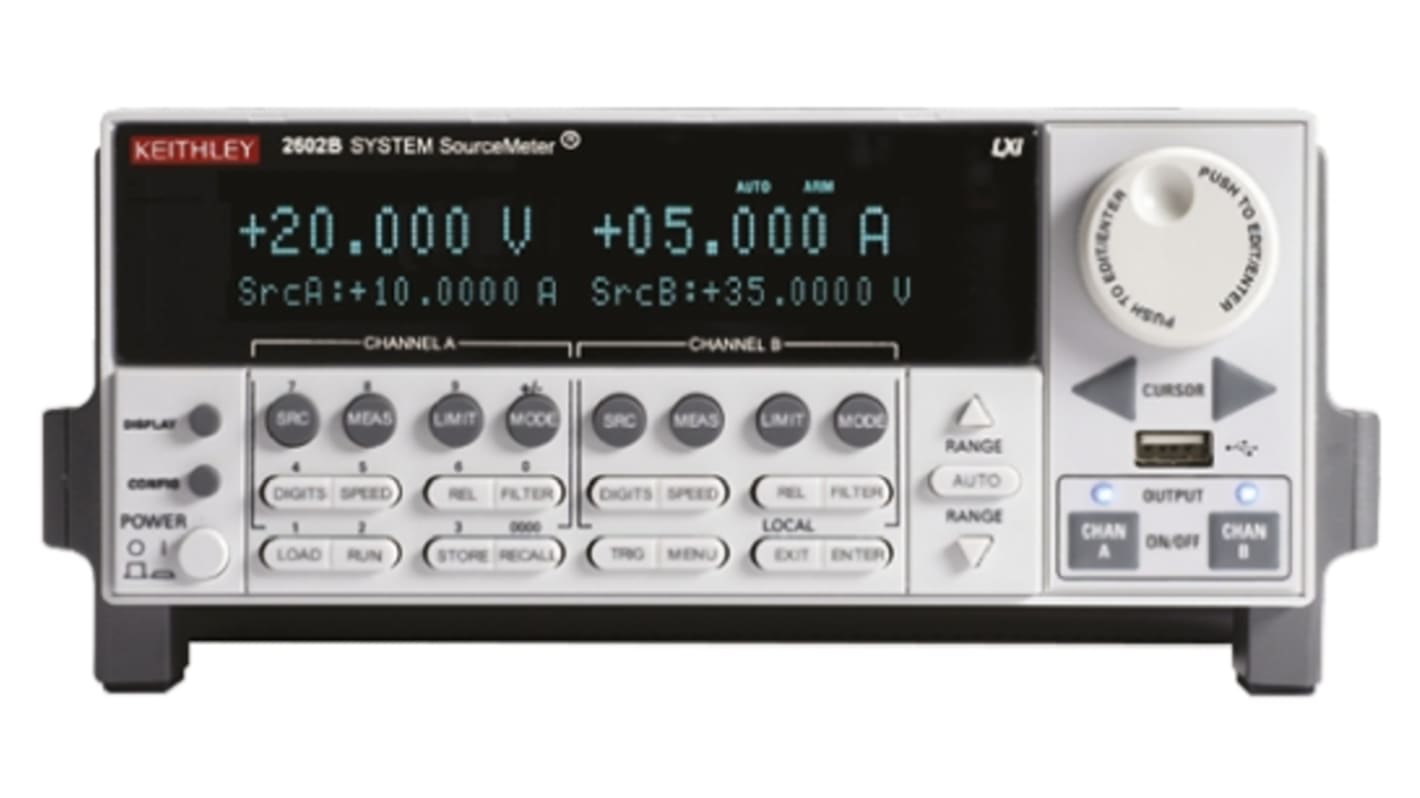

2602B | Keithley 2600 Series Source Meter, ±100 mV → ±40 V, 2-Channel, ±100 nA → ±10 A, 80 W Output | RS

Keithley 2600 Series Source Meter, ±100 mV → ±40 V, 2-Channel, ±100 nA → ±10 A, 80 W Output

RS庫存編號:: 768-3419
製造零件編號:: 2602B
製造商:: Keithley

Keithley 2600 Series Source Meter, ±100 mV → ±40 V, 2-Channel, ±100 nA → ±10 A, 80 W Output

此圖片僅供參考，請參閲產品詳細資訊及規格

Price 个**

HK$171,682.00

3 現貨庫存，可於3工作日發貨。*

* 交貨日期可能會根據您選擇的數量和交貨地址而變更。

訂單金額滿 HK$250.00 即可享受免費送貨服務

即時庫存查詢

單位	每單位
1 +	HK$171,682.00

** 參考價格

RS庫存編號:: 768-3419
製造零件編號:: 2602B
製造商:: Keithley

Keithley Source Meter Series 2600B

Series 2600B Source Meter current/voltage source and measurement instruments are built from Keithley's 3rd generation SMU technology. Each tightly integrated instrument offers the capabilities of a precision power supply, true current source, 6 digit DMM, arbitrary waveform generator, pulse generator and electronic load. Series 2600B Source Meter models feature built-in Java-based test software which enables true plug & play I/V characterisation through any browser, on any computer, from anywhere in the world. Series 2600B is a family of powerful instruments with unique capabilities in testing components and devices across many applications including R&D, production test, education and QA/FA.

Features and Benefits:

• 4-quadrant voltage/current source and measure with 6 digit resolution (2-line VFD display)
• Choose model from series offering exceptional dynamic range, 10A pulse to 0.1fA and 200V to 100nV
• Built-in Java-based test software
• Test Script Processing (TSP) technology embeds complete test programs for best-in-class system-level throughput
• TSP-Link expansion technology for multi-channel parallel test without a mainframe
• USB 2.0, LXI-C, GPIB, RS-232 and digital I/O interfaces
• Software drivers and development/debug tools supplied
• Model choice includes lower specification (2604B, 2614B, 2634B) instruments

Typical Applications:

• Semiconductor Structures
- Wafers / Thin films
• Nanomaterials and Devices
- Graphene / Carbon Nanotubes/ Nanowires /Low Power nanostructures
• Discrete and Passive Components
- Resistors / diodes / Zener Diodes / LEDs, disk drive heads, sensors
- small signal bipolar junction transistors (BJT’s), Field Effective Transistors
(FET’s)
• Organic Materials and Devices
- E-links / Printable Electronics
• Material Characterization
- Resistivity / Hall Effect

Supplied with

Operator and programming manuals, low noise triax cable 2m (6.6ft) with alligator clip, mating screw terminal connectors with strain relief and covers, TSP-Link/Ethernet cable (2 per unit), TSP Express software tool (embedded), Test Script Builder software (on CD), LabVIEW driver

Keithley Power Supplies

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Keithley
	Series	2600
	Source Meter Function	Current Resistance Voltage Measure, Current Voltage Source
	Number of Channels	2
	Source Voltage Range	±100 mV → ±40 V
	Source Current Range	±100 nA → ±10 A
	Output Power	80 W
	Resistance Measurement Range	500 nΩ → 40 TΩ

	選取全部
	品牌 Keithley
	Series 2600
	Source Meter Function Current Resistance Voltage Measure, Current Voltage Source
	Number of Channels 2
	Source Voltage Range ±100 mV → ±40 V
	Source Current Range ±100 nA → ±10 A
	Output Power 80 W
	Resistance Measurement Range 500 nΩ → 40 TΩ
