Jumo 601540 Screw Controller 1 Input, 1 Output 230V Controller
- RS庫存編號:
- 278-737
- 製造零件編號:
- 601540/045-048-13-01-150-15/000
- 製造商:
- Jumo
小計（1 件）*
HK$3,824.50
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年4月06日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$3,824.50 |
* 參考價格
- RS庫存編號:
- 278-737
- 製造零件編號:
- 601540/045-048-13-01-150-15/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Controller | |
| Number of Inputs | 1 | |
| Number of Outputs | 1 | |
| Maximum Current | 12A | |
| Minimum Operating Temperature | -50°C | |
| Control Type | Controller | |
| Terminal Type | Sealed Cable | |
| Maximum Supply Voltage | 230V | |
| Maximum Voltage | 230V | |
| Standards/Approvals | DIN 16257, DIN EN 60529 | |
| Length | 150mm | |
| IP Rating | IP54 | |
| Mount Type | Screw | |
| Input Type | Temperature Sensor | |
| Series | 601540 | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Controller | ||
Number of Inputs 1 | ||
Number of Outputs 1 | ||
Maximum Current 12A | ||
Minimum Operating Temperature -50°C | ||
Control Type Controller | ||
Terminal Type Sealed Cable | ||
Maximum Supply Voltage 230V | ||
Maximum Voltage 230V | ||
Standards/Approvals DIN 16257, DIN EN 60529 | ||
Length 150mm | ||
IP Rating IP54 | ||
Mount Type Screw | ||
Input Type Temperature Sensor | ||
Series 601540 | ||
- COO (Country of Origin):
- DE

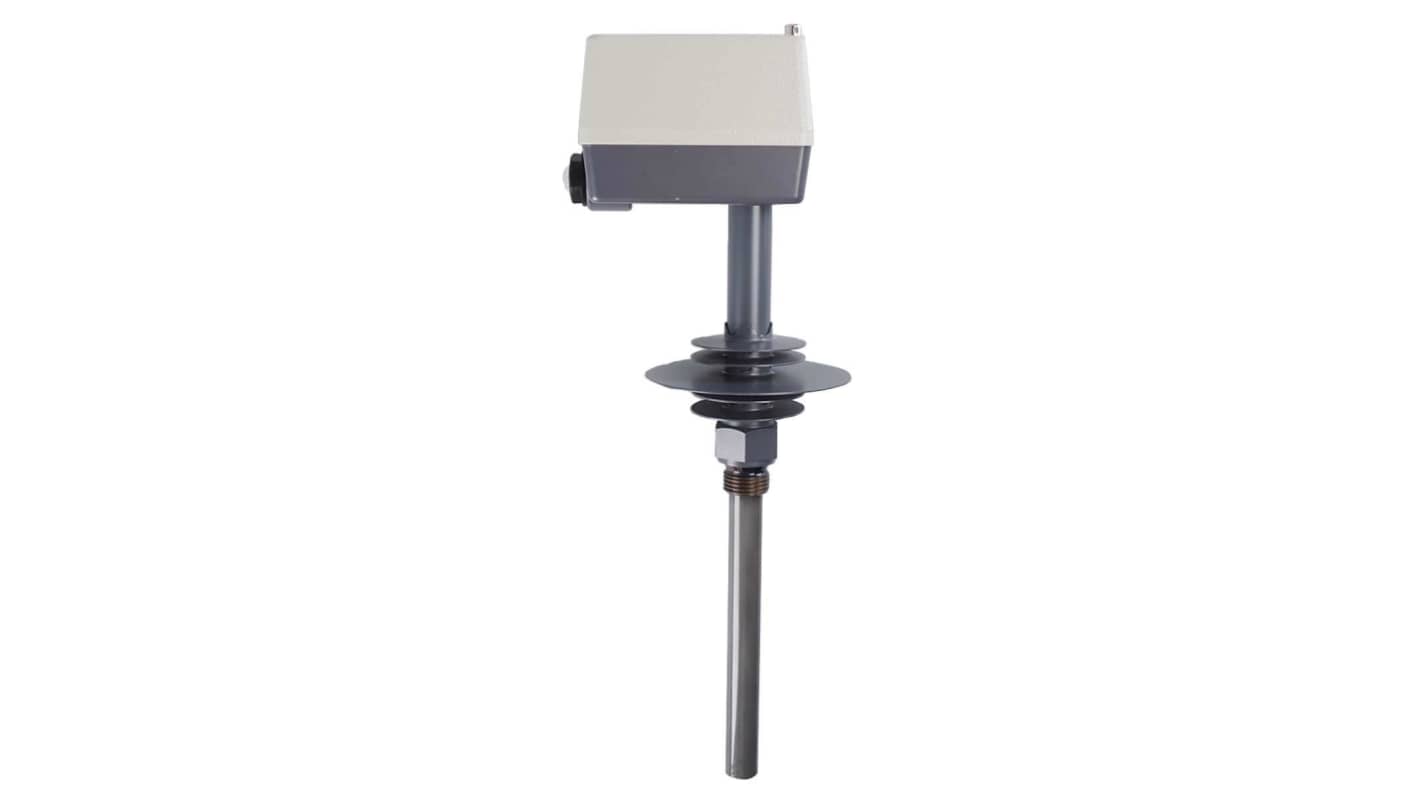

The Jumo Exhaust gas temperature monitor features a robust die-cast aluminium case as well as the 150 mm long, stable steel protection tube guarantee operation even in rough conditions. Due to the used rod expansion principle the exhaust gas temperature monitor can be used up to a maximum sensor temperature of 700 °C. The maximum permissible ambient temperature at the case (protection class IP54) is between -50 °C and +80 °C. The electrical connection is made directly with screw terminals on the installed microswitch, which can directly switch a maximum permissible switching capacity of AC 230V/10A. At the set limit value, the system switches from one circuit to the other. The thermostat has a switching differential (hysteresis) of 10 to 22 K and automatically switches back to the original state after the temperature falls below the switch off temperature by this value. Furthermore it is used to block ventilation systems causing vacuum in connection with tile stoves and fireplaces.
Integrated micro switch
Contact reliability
Fast reaction time of 45 seconds in flue gas and is authorized according to DIN EN 14597
Can be installed directly in the flue gas duct by the screw connection with G 1/2 inch thread
No additional auxiliary energy is necessary for temperature measurement
Monitor the flue gas temperature of solid fuel boilers during bivalent operation with oil heating boilers
