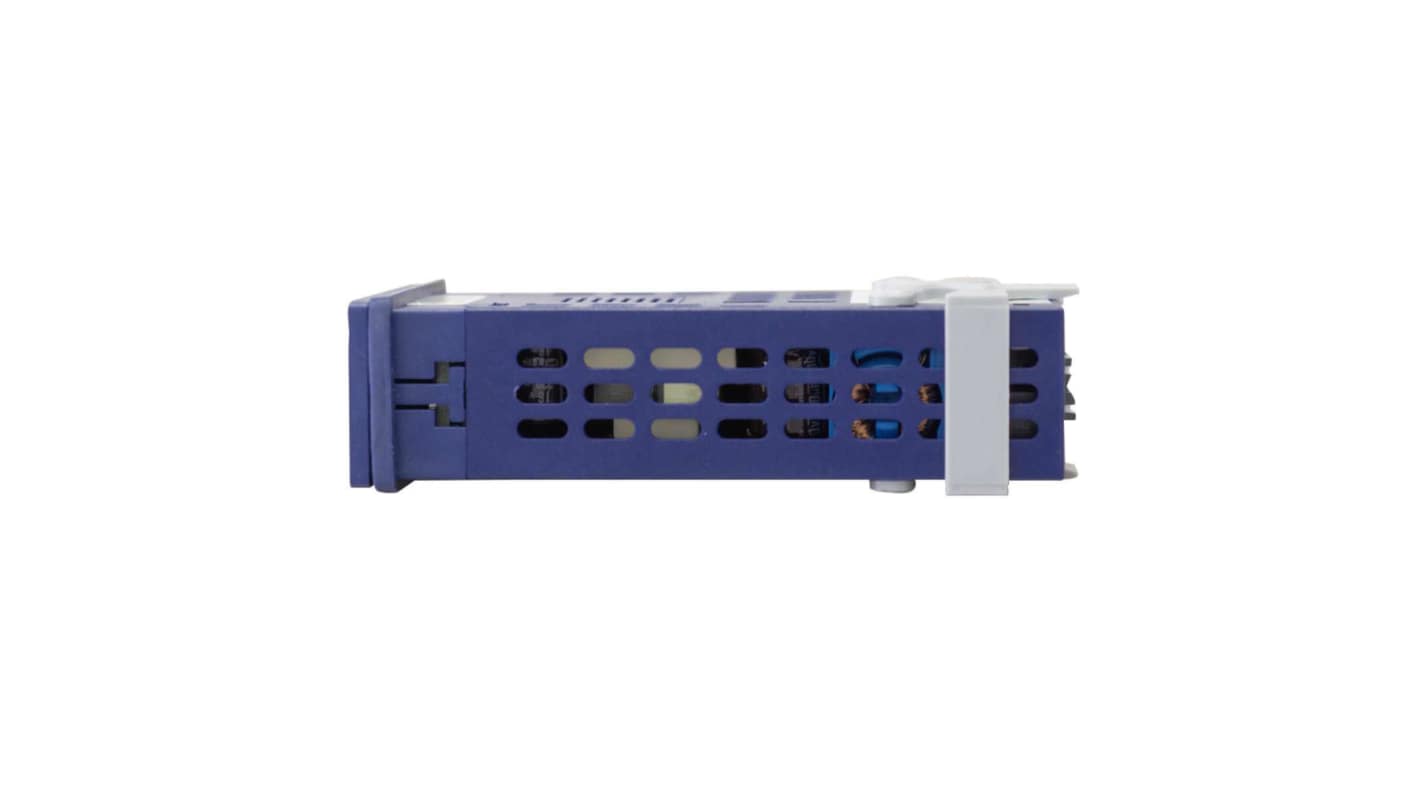

Jumo 701510 Panel Mount Digital Indicator 3 Input Relay 30V dc Controller
- RS庫存編號:
- 278-794
- 製造零件編號:
- 701510/8-0000-25/000
- 製造商:
- Jumo
小計（1 件）*
HK$2,296.81
訂單超過 HK$250.00 免費送貨
正在逐步停售
- 最終 3 個，準備發貨
單位 | 每單位 |
|---|---|
| 1 + | HK$2,296.81 |
* 參考價格
- RS庫存編號:
- 278-794
- 製造零件編號:
- 701510/8-0000-25/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Digital Indicator | |
| Output Type | Relay | |
| Number of Inputs | 3 | |
| Maximum Current | 20mA | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Control Type | Controller | |
| Terminal Type | Spring Cage Terminal | |
| Maximum Supply Voltage | 30V dc | |
| Auxiliary Power Supply | 110 to 240 VAC | |
| Digital Comms | Modbus RTU/ASCII via TCP, RS485 Modbus RTU Slave, Ethernet/Modbus TCP | |
| Display Type | 701513 Digit, 18 Segment LCD, LCD, 701514 | |
| Maximum Voltage | 230V | |
| Length | 89mm | |
| IP Rating | IP65, IP20 | |
| Standards/Approvals | Bureau Veritas, DIN EN 60529, UL 61010-1, EN 61326-1, CAN/CSA-22.2 No. 61010-1, EN 61010, DNV GL | |
| Width | 48 mm | |
| Input Type | Potentiometer, Thermocouple, Current, Digital, Voltage, Analogue | |
| Mount Type | Panel Mount | |
| Series | 701510 | |
| Panel Depth | 24mm | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Digital Indicator | ||
Output Type Relay | ||
Number of Inputs 3 | ||
Maximum Current 20mA | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Control Type Controller | ||
Terminal Type Spring Cage Terminal | ||
Maximum Supply Voltage 30V dc | ||
Auxiliary Power Supply 110 to 240 VAC | ||
Digital Comms Modbus RTU/ASCII via TCP, RS485 Modbus RTU Slave, Ethernet/Modbus TCP | ||
Display Type 701513 Digit, 18 Segment LCD, LCD, 701514 | ||
Maximum Voltage 230V | ||
Length 89mm | ||
IP Rating IP65, IP20 | ||
Standards/Approvals Bureau Veritas, DIN EN 60529, UL 61010-1, EN 61326-1, CAN/CSA-22.2 No. 61010-1, EN 61010, DNV GL | ||
Width 48 mm | ||
Input Type Potentiometer, Thermocouple, Current, Digital, Voltage, Analogue | ||
Mount Type Panel Mount | ||
Series 701510 | ||
Panel Depth 24mm | ||
- COO (Country of Origin):
- DE
The Jumo Universal Applicable Digital Indicator in the small DIN landscape format is suitable for the front installation to display temperature, pressure and other process variables. The version has individual display elements for the switch position of the outputs and also for manual mode, ramp function and timer. The display is operated by a membrane keyboard with four keys and can be used at rough environmental influences because of the high protection type IP65. The digital indicator has a min-max-value-display function, hold-function, tare function, limit value monitoring function, digital control signal, wide timer function an a service counter. The configuration is about the USB interface it does not need a separate voltage supply (USB powered). In the hardware is also a universal input, two relay outputs (normally open contact), a digital input and a digital in- and output included. The voltage supply range is AC/DC 20 to 30 V, 48 to 63 Hz.
Characterized by easy and clearly structured with text-supported operation
Process value and parameters shown on two 18-segment LCD displays
Configured via computer using the setup program and including program editor and ST editor
