Jumo TYA-202 Panel Mount Controller 2 Input Relay 400V ac Controller
- RS庫存編號:
- 279-116
- 製造零件編號:
- 709062/8-01-100-001-400-00/252
- 製造商:
- Jumo
小計（1 件）*
HK$22,094.20
訂單超過 HK$250.00 免費送貨
製造商存貨
- 準備從 2026年4月27日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$22,094.20 |
* 參考價格
- RS庫存編號:
- 279-116
- 製造零件編號:
- 709062/8-01-100-001-400-00/252
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Controller | |
| Output Type | Relay | |
| Number of Inputs | 2 | |
| Maximum Current | 250A | |
| Maximum Operating Temperature | 45°C | |
| Minimum Operating Temperature | 0°C | |
| Control Type | Controller | |
| Maximum Supply Voltage | 400V ac | |
| Auxiliary Power Supply | 400 V ac | |
| Diagnostics | Yes | |
| Firing Mode | Burst Fire | |
| Controlled Phases | 3 | |
| Maximum Voltage | 500V | |
| Display Type | LCD | |
| Standards/Approvals | DIN 61326-1, EN 60 529, EN 50178, UL 508, C22.2 NO. 14-10 | |
| IP Rating | IP20 | |
| Width | 9mm | |
| Length | 155mm | |
| Input Type | Analogue | |
| Mount Type | Panel Mount | |
| Series | TYA-202 | |
| Panel Depth | 144mm | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Controller | ||
Output Type Relay | ||
Number of Inputs 2 | ||
Maximum Current 250A | ||
Maximum Operating Temperature 45°C | ||
Minimum Operating Temperature 0°C | ||
Control Type Controller | ||
Maximum Supply Voltage 400V ac | ||
Auxiliary Power Supply 400 V ac | ||
Diagnostics Yes | ||
Firing Mode Burst Fire | ||
Controlled Phases 3 | ||
Maximum Voltage 500V | ||
Display Type LCD | ||
Standards/Approvals DIN 61326-1, EN 60 529, EN 50178, UL 508, C22.2 NO. 14-10 | ||
IP Rating IP20 | ||
Width 9mm | ||
Length 155mm | ||
Input Type Analogue | ||
Mount Type Panel Mount | ||
Series TYA-202 | ||
Panel Depth 144mm | ||
- COO (Country of Origin):
- DE

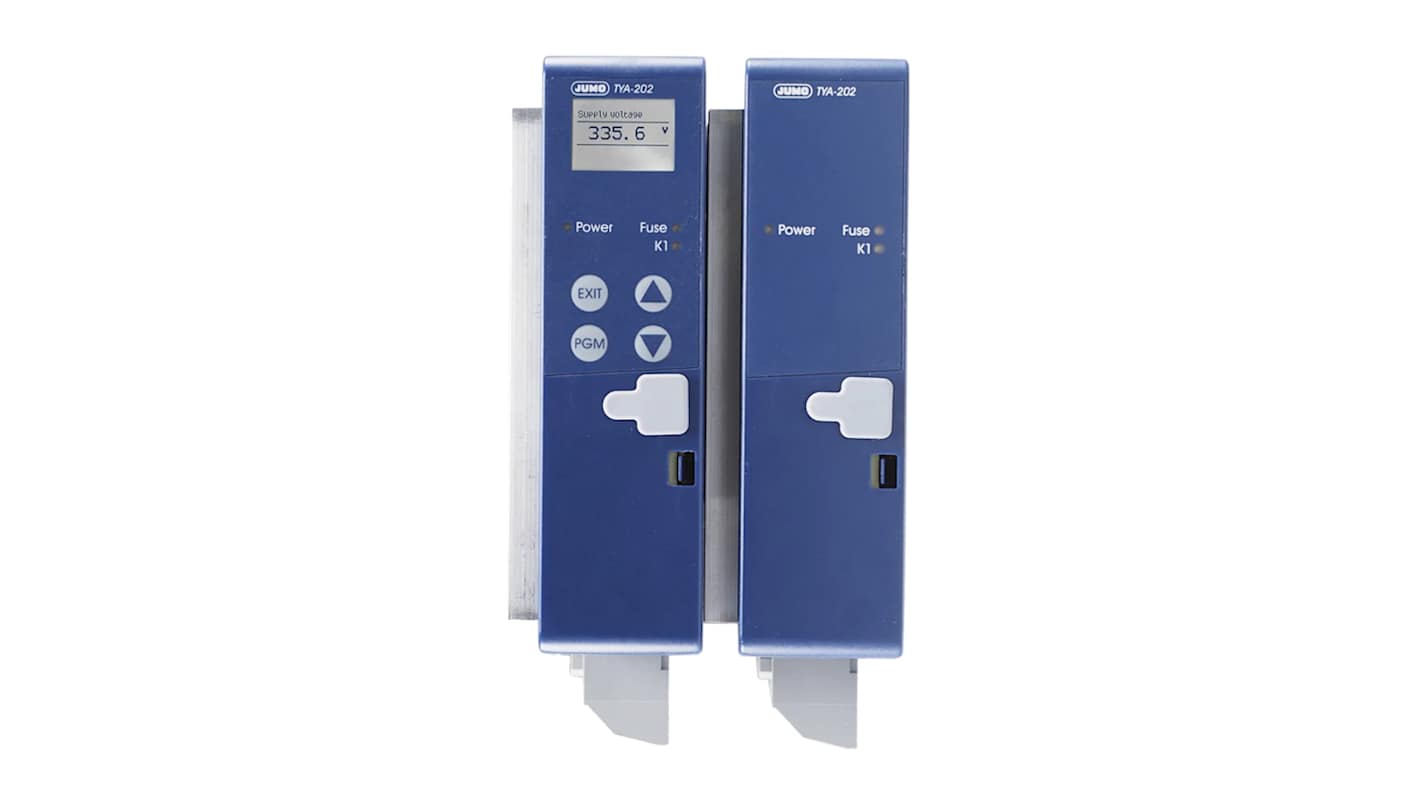

The Jumo Three-phase thyristor power controller in economy mode operates in burst-firing mode with subordinate P-control with configurable partial load break monitoring. The device shows all process and configuration parameters clearly on an LC display and is easy to operate via 4 front keys.
Process errors are signalled by a fault signal relay
Process values can be output to an analog output
Applications are everywhere where larger ohmic and inductive loads have to be switched
