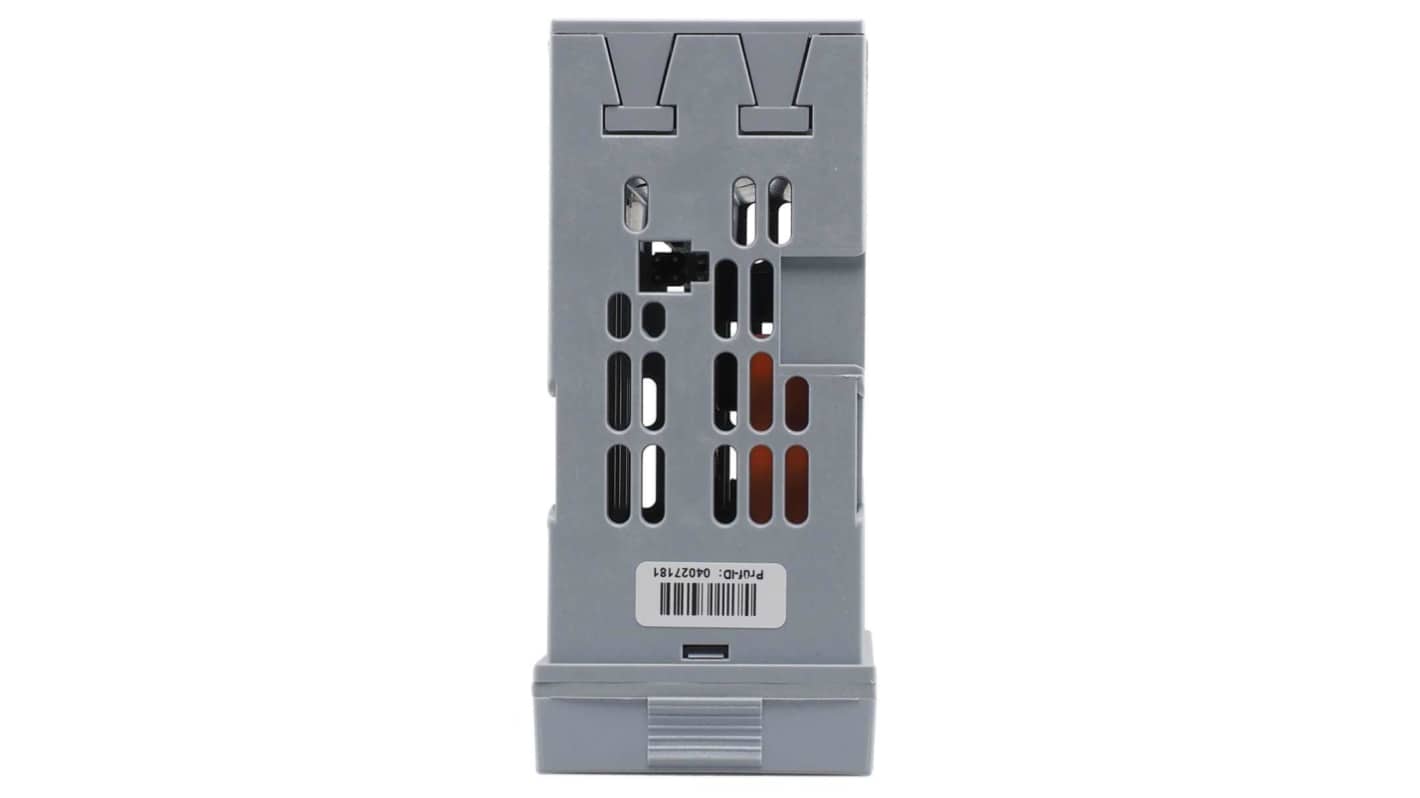

Jumo 703042 Panel Mount Controller 3 Input Relay, 20 → 30 V ac/dc Supply Voltage Controller
- RS庫存編號:
- 279-227
- 製造零件編號:
- 703042/181-000-25/000
- 製造商:
- Jumo
小計（1 件）*
HK$8,106.30
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2025年12月29日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$8,106.30 |
* 參考價格
- RS庫存編號:
- 279-227
- 製造零件編號:
- 703042/181-000-25/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Output Type | Relay | |
| Supply Voltage | 20 → 30 V ac/dc | |
| Number of Inputs | 3 | |
| Control Type | Controller | |
| Mounting Type | Panel Mount | |
| Series | 703042 | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Output Type Relay | ||
Supply Voltage 20 → 30 V ac/dc | ||
Number of Inputs 3 | ||
Control Type Controller | ||
Mounting Type Panel Mount | ||
Series 703042 | ||
- COO (Country of Origin):
- DE
The Jumo PID controller for panel mounting got a universal input, two relay outputs (changeover contact), two binary inputs and outputs and a voltage supply for two wire transmitter. The voltage supply range is AC/DC 20 to 30 V, 48 to 63 Hz. As a temperature controller TR according to DIN EN 14 597, the device can be used in heat-generating systems for regulating and controlling the temperature of liquid and gaseous media. The high contrast, multi coloured LCD display is for actual value, setpoint value and operator guidance. It is consists of two four digit 7 segment displays. Four keys allow easy operation. The compact controller can be configurated as a 2 state controller, a 3 state controller, a three step controller or a continuous controller.
Standard probe linearizations saved and customer specific linearization programmable
Configuration via setup program on the computer
Electrical connection via screw terminals on the reverse
Approved by cULus and GOST
Configuration via setup program on the computer
Electrical connection via screw terminals on the reverse
Approved by cULus and GOST
