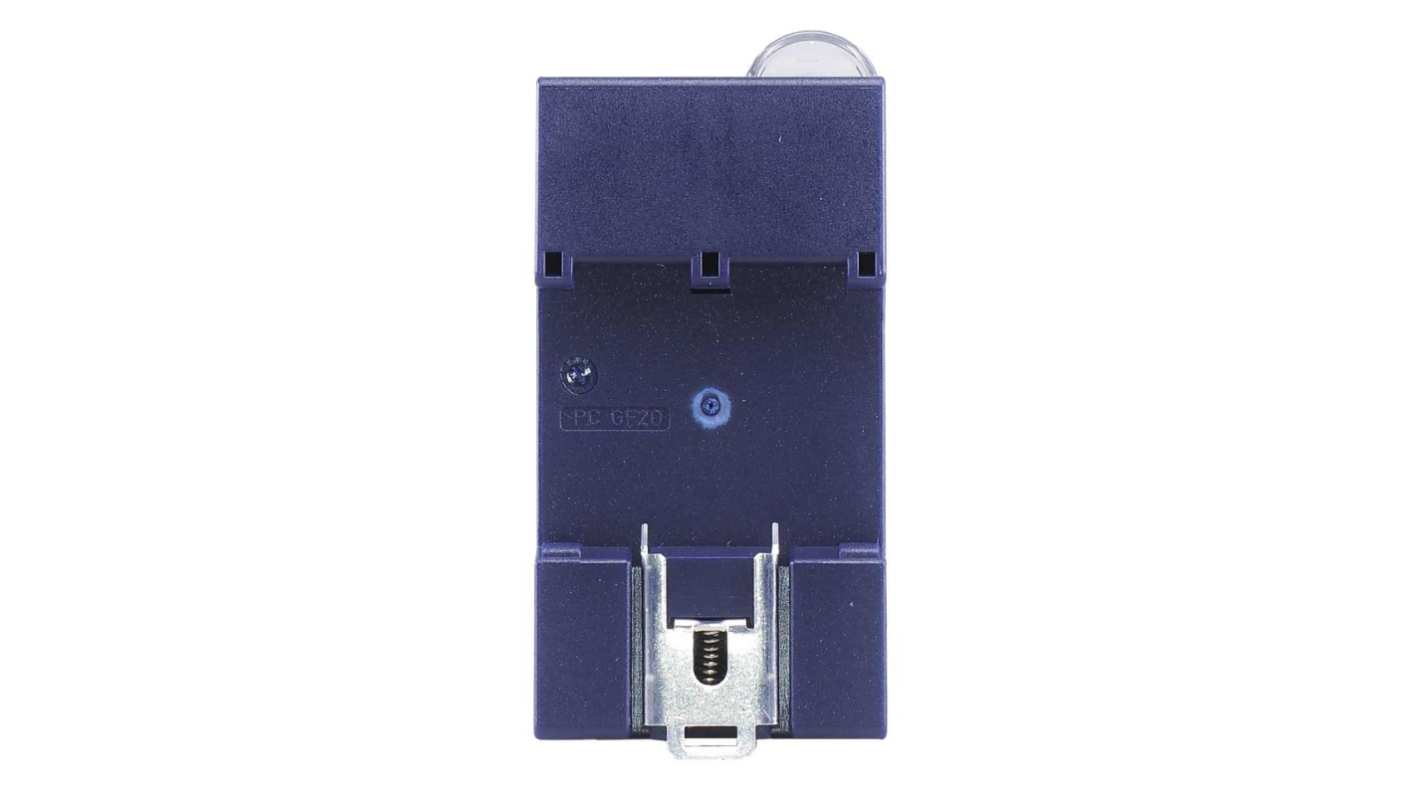

Jumo 701155 DIN Rail Controller 2 Input, 4 Output Analogue 30V ac/dc Controller

查看所有Temperature Controllers

小計（1 件）*

HK$9,660.50

Add to Basket
選擇或輸入數量
暫時缺貨
  • 從 2026年4月03日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$9,660.50

* 參考價格

RS庫存編號:
279-257
製造零件編號:
701155/8-01-0253-2001-25-044-005/059,000
製造商:
Jumo
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Jumo

Output Type

Analogue

Product Type

Controller

Number of Inputs

2

Number of Outputs

4

Maximum Current

3A

Maximum Operating Temperature

55°C

Minimum Operating Temperature

0°C

Control Type

Controller

Terminal Type

Screw

Maximum Supply Voltage

30V ac/dc

Diagnostics

Yes

Digital Comms

USB Interface

Auxiliary Power Supply

110/240 V ac

Display Type

LCD Backlight

Maximum Voltage

250V

Standards/Approvals

IECEX, UKCA, SIL 3, PL e, ATEX, DIN EN 13849, DIN EN 14597, DIN EN 50495, DIN EN 61508, DIN EN ISO 80079-37, EAC Ex, DNV

Length

104.8mm

Width

45 mm

IP Rating

IP20

Mount Type

DIN Rail

Input Type

Analogue

Series

701155

Panel Depth

85mm

COO (Country of Origin):
DE
The Jumo Ex Safety temperature limiter and monitor according to DIN EN 14597 has a power supply range of AC/DC 20 to 30 V, 48 to 63 Hz. The compact and user configurable JUMO safetyM STB/STW Ex can now also enable early and reliable detection of risks in Ex-areas which could potentially result in personal injuries, environmental damage, or destruction of the production plant and production materials. The devices are available in 2 versions. 1-sensor version Ex II (1) (2) (3) G (b1) [Ex ia Ga] [e pz] IIC , Ex II (1) (2) (3) D (b1) [Ex ia Da] [p Dc] IIIC. 2-sensor version Ex II (1) (1) (2) G (b2) [Ex ia Ga] [e py] IIC, Ex II (1) (1) (2) D (b2) [Ex ia Da] [p Db] IIIC. The primary task of safety temperature limiters is to reliably monitor thermal processes and to switch plants to a safe operating status in the event of malfunctions. Along with the existing approvals according to DIN 14597, SIL 3, PL e and GL.

Inputs are intrinsically safe allowing direct connection of relevant probes without barriers

Certified to DIN EN 50495 and DIN EN 13463-6 as an ignition source monitoring device

Meets DIN EN 61508 and DIN EN 13849 requirements for safety applications

1oo2D structure ensures fault detection and compliance with Machinery Directive 2006/42/EC

Backlit display with plain text for quick and easy configuration and clear menu structure

Displays all safety relevant process values with simple pictograms

Two universal analogue inputs and one digital input

Two relay outputs and one universal analogue output

Approval according to ATEX and can therefore also be used for measurements in Ex areas
