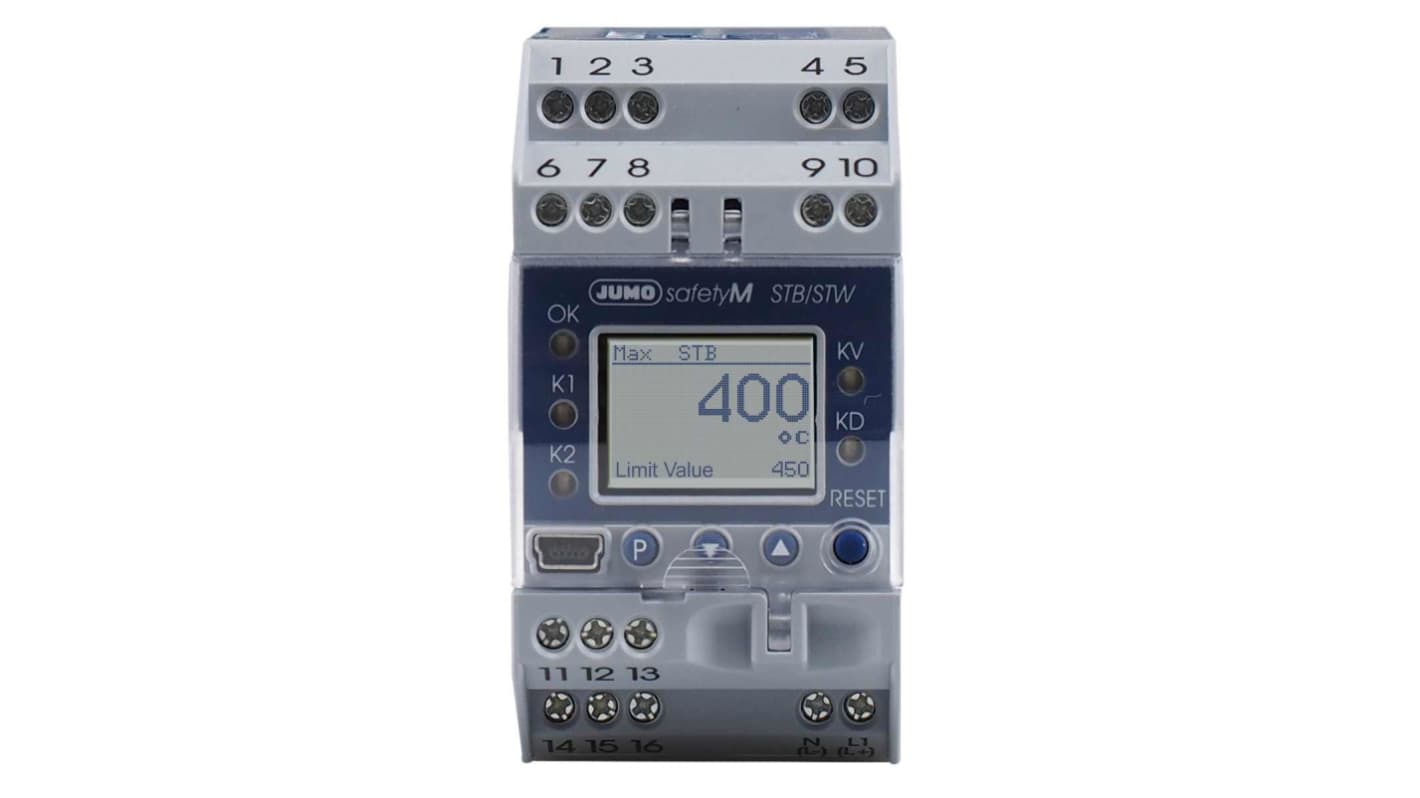

Jumo 701150 DIN Rail Controller 2 Input, 4 Output Analogue 30V ac/dc Controller

查看所有Temperature Controllers

小計（1 件）*

HK$7,110.20

Add to Basket
選擇或輸入數量
有庫存
  • 1 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$7,110.20

* 參考價格

RS庫存編號:
278-983
製造零件編號:
701150/8-01-0253-2001-25/005,058
製造商:
Jumo
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Jumo

Output Type

Analogue

Product Type

Controller

Number of Inputs

2

Number of Outputs

4

Maximum Current

3A

Maximum Operating Temperature

55°C

Minimum Operating Temperature

0°C

Control Type

Controller

Terminal Type

Screw

Maximum Supply Voltage

30V ac/dc

Auxiliary Power Supply

110/240 V ac

Digital Comms

USB Interface

Diagnostics

Yes

Maximum Voltage

240V

Display Type

LCD Backlight

Standards/Approvals

DNV GL rules for classification, CAN/CSA-E60730-1, UL 60730-2-9, UL 60730-1, TP TC 020/2011, EAC TP TC 004/2011, DIN EN ISO 13849, DIN EN 61508, DIN EN 14597, CAN/CSA-E60730-2-9

Width

45 mm

IP Rating

IP20

Length

104.8mm

Mount Type

DIN Rail

Input Type

Analogue

Series

701150

Panel Depth

89.4mm

COO (Country of Origin):
DE
The Jumo Configurable safety temperature limiter/ monitor according to DIN EN 14597 with 1oo2D architecture and SIL and PL approval is equipped with two universal analogue inputs and two relay outputs (pre- and limit value alarm) as well as a universal analogue output. The switching capacity of the relay contacts is AC 250 V, 3 A, 50 Hz (resistive load). The pre alarm is adjustable as absolute or as distance from the limit value. This occurs after the sensor temperature has fallen below the set limit value by the amount of the switching difference (setting: max-alarm). The automatic resetting is carried out with setting Min-Alarm after the sensor temperature has risen above the set limit value by the amount of the switching difference. When used as a safety temperature limiter STB (protection temperature limiter for heat generating plants), the reset is performed manually or with a tool. The power supply range is from AC/DC 20 to 30 V, 48 to 63 Hz.

Front side features an LC display with backlighting and plain text

Safety temperature limiter and monitor detect and prevent hazards early

Monitors thermotechnical processes and restores safe operation in case of faults

Analog input supports various sensors or standard signals

Limit exceedance is indicated by LEDs and relay output switches to a safe state

Meets DIN EN 61508 DIN EN 13849 and Machinery Directive 2006/42/EC

STW operates with automatic reset for heat-generating systems
