Jumo 202560 Surface Mount Controller 2 Input, 1 Output Analogue 30V ac/dc Controller
- RS庫存編號:
- 279-507
- 製造零件編號:
- 202560/20-888-000-000-000-25/000
- 製造商:
- Jumo
小計（1 件）*
HK$9,253.70
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年4月03日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$9,253.70 |
* 參考價格
- RS庫存編號:
- 279-507
- 製造零件編號:
- 202560/20-888-000-000-000-25/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Controller | |
| Output Type | Analogue | |
| Number of Inputs | 2 | |
| Number of Outputs | 1 | |
| Maximum Current | 3A | |
| Maximum Operating Temperature | 65°C | |
| Minimum Operating Temperature | -15°C | |
| Terminal Type | Screw | |
| Control Type | Controller | |
| Maximum Supply Voltage | 30V ac/dc | |
| Diagnostics | Yes | |
| Auxiliary Power Supply | 110/240 V ac | |
| Display Type | LCD | |
| Maximum Voltage | 250V | |
| IP Rating | IP20, IP65, IP67 | |
| Length | 140mm | |
| Standards/Approvals | cULus (UL 61010-1), EN 60529, EN 61010-1 | |
| Width | 12 mm | |
| Input Type | Analogue | |
| Mount Type | Surface Mount | |
| Series | 202560 | |
| Panel Depth | 77mm | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Controller | ||
Output Type Analogue | ||
Number of Inputs 2 | ||
Number of Outputs 1 | ||
Maximum Current 3A | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature -15°C | ||
Terminal Type Screw | ||
Control Type Controller | ||
Maximum Supply Voltage 30V ac/dc | ||
Diagnostics Yes | ||
Auxiliary Power Supply 110/240 V ac | ||
Display Type LCD | ||
Maximum Voltage 250V | ||
IP Rating IP20, IP65, IP67 | ||
Length 140mm | ||
Standards/Approvals cULus (UL 61010-1), EN 60529, EN 61010-1 | ||
Width 12 mm | ||
Input Type Analogue | ||
Mount Type Surface Mount | ||
Series 202560 | ||
Panel Depth 77mm | ||
- COO (Country of Origin):
- DE

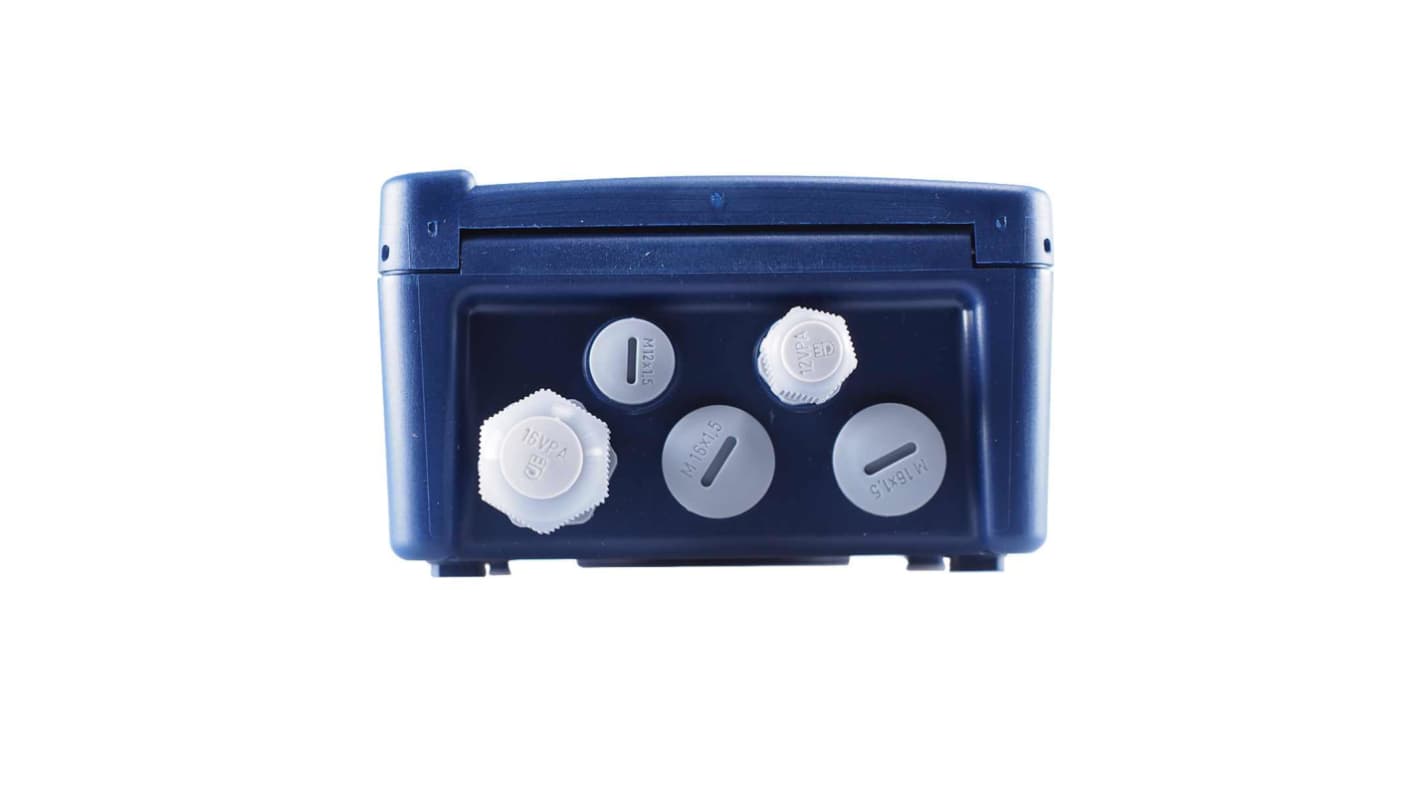

The Jumo Transmitter/controller for pH value, redox voltage, NH3 concentration and temperature in a surface mounted housing IP 67 has an illuminated LC display with plain text operation. The operating language is adjustable. It offers an analogue output. The power supply is provided by a switching power supply device AC/DC 20 to 30 V 48 to 63 Hz. A setup interface, a power supply for ISFET sensor and a binary input are available to the user.
Calibration logbook
Impedance measurement can be activated for pH measurement
Symmetrical and asymmetrical connection of pH sensors
Automatic temperature compensation
