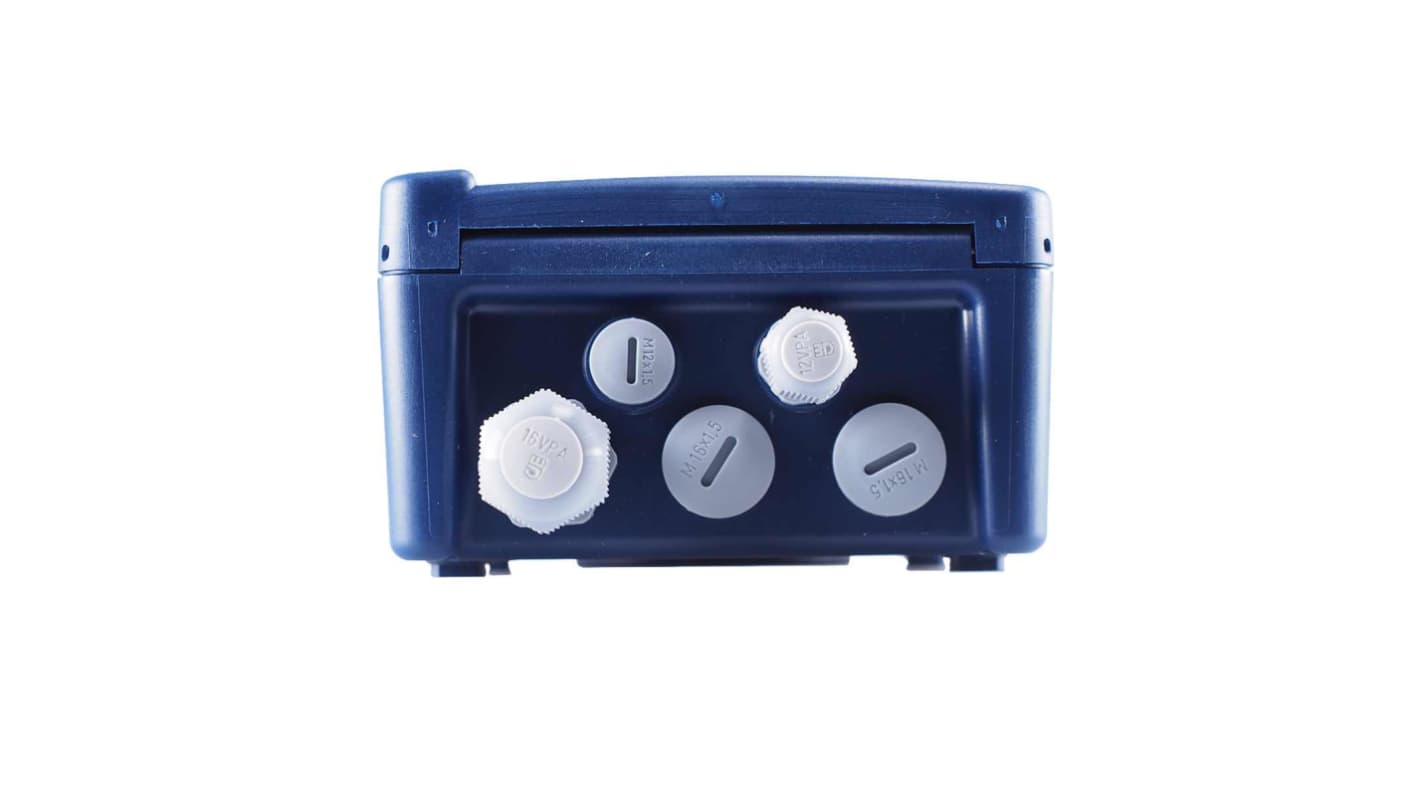

Jumo 202560 Surface Mount Controller 2 Input, 4 Output Analogue 240V ac Controller
- RS庫存編號:
- 279-514
- 製造零件編號:
- 202560/20-888-888-310-310-23/000
- 製造商:
- Jumo
小計（1 件）*
HK$13,502.90
訂單超過 HK$250.00 免費送貨
暫時缺貨
- 從 2026年3月25日 發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$13,502.90 |
* 參考價格
- RS庫存編號:
- 279-514
- 製造零件編號:
- 202560/20-888-888-310-310-23/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Product Type | Controller | |
| Output Type | Analogue | |
| Number of Inputs | 2 | |
| Number of Outputs | 4 | |
| Maximum Current | 3A | |
| Maximum Operating Temperature | 65°C | |
| Minimum Operating Temperature | -15°C | |
| Terminal Type | Screw | |
| Control Type | Controller | |
| Maximum Supply Voltage | 240V ac | |
| Auxiliary Power Supply | 110/240 V ac | |
| Diagnostics | Yes | |
| Display Type | LCD | |
| Maximum Voltage | 250V | |
| IP Rating | IP20, IP65, IP67 | |
| Length | 140mm | |
| Standards/Approvals | cULus (UL 61010-1), EN 61010-1, EN 60529 | |
| Width | 12 mm | |
| Mount Type | Surface Mount | |
| Series | 202560 | |
| Input Type | Analogue | |
| Panel Depth | 77mm | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Product Type Controller | ||
Output Type Analogue | ||
Number of Inputs 2 | ||
Number of Outputs 4 | ||
Maximum Current 3A | ||
Maximum Operating Temperature 65°C | ||
Minimum Operating Temperature -15°C | ||
Terminal Type Screw | ||
Control Type Controller | ||
Maximum Supply Voltage 240V ac | ||
Auxiliary Power Supply 110/240 V ac | ||
Diagnostics Yes | ||
Display Type LCD | ||
Maximum Voltage 250V | ||
IP Rating IP20, IP65, IP67 | ||
Length 140mm | ||
Standards/Approvals cULus (UL 61010-1), EN 61010-1, EN 60529 | ||
Width 12 mm | ||
Mount Type Surface Mount | ||
Series 202560 | ||
Input Type Analogue | ||
Panel Depth 77mm | ||
- COO (Country of Origin):
- DE
The Jumo Transmitter/controller for pH value, redox voltage, NH3 concentration and temperature in a surface mounted housing IP 67 has an illuminated LC display with plain text operation. The operating language is adjustable. It offers two analogue output and two relays (changeover contact). The power supply is provided by a switching power supply device AC 110 to 240 V +10 / -15 %, 48 to 63 Hz. A setup interface, a power supply for ISFET sensor and a binary input are available to the user.
Calibration logbook
Impedance measurement can be activated for pH measurement
Symmetrical and asymmetrical connection of pH sensors
Automatic temperature compensation
