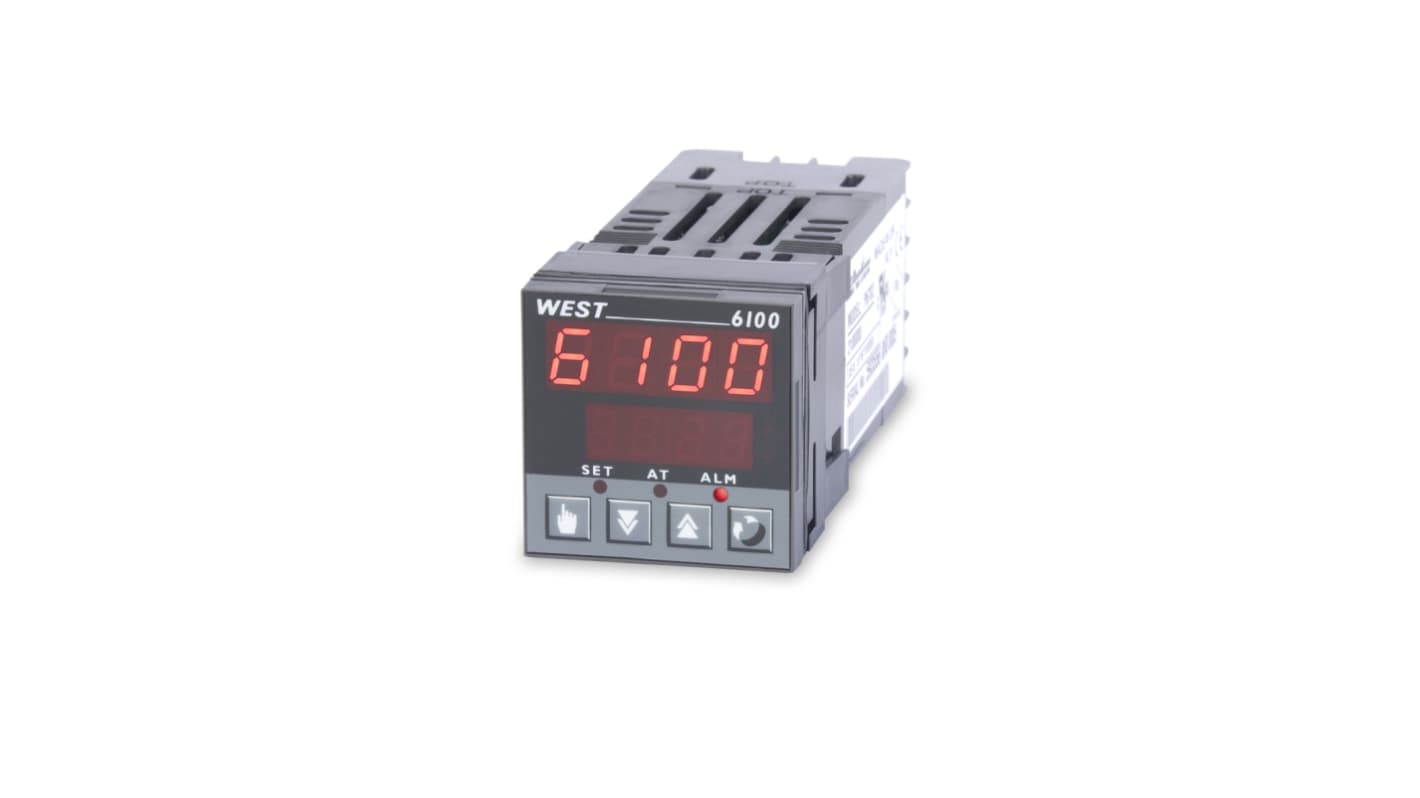

West Instruments P6100 Temperature Control Module, 48 x 48 x 110mm, 3 Output Linear, 24 → 48 V Supply Voltage

The West Instruments Temperature And Process Controller offers versatile control types, including Full PID with Pre-tune, Self-tune, manual tuning, or On-Off control. It supports heat only or heat and cool applications. The controller features Auto/Manual selection, which can be chosen from the front panel or via digital input, with bumpless transfer for smooth operation. It provides up to 3 output configurations, which can be used for control, alarm, 24VDC transmitter power supply, or retransmission of process values or setpoints. The controller offers high accuracy of ±0.1% of the input range and ±1 LSD, with T/C CJC accuracy better than 1°C.

Jumperless configuration
Auto detected hardware
Process and loop alarms
Modbus and ASCII protocol
IP66 rated for front panel protection
CE and UL recognised
