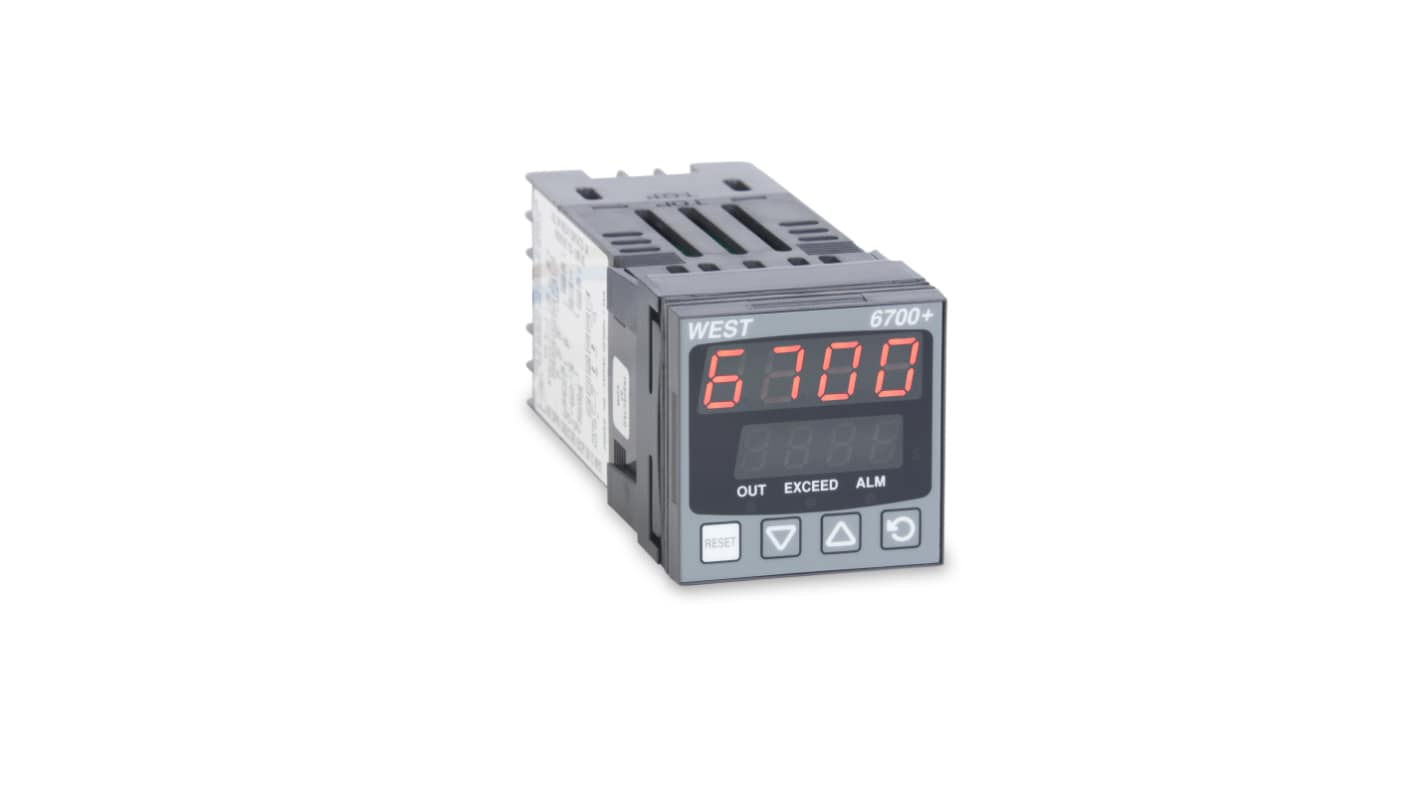

West Instruments West 6700 Controller 1 Input, 3 Output Linear 240V Limit Controller
- RS庫存編號:
- 328-811
- 製造零件編號:
- P6700-2110020
- 製造商:
- West Instruments
小計（1 件）*
HK$4,599.70
訂單超過 HK$250.00 免費送貨
有庫存
- 2 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$4,599.70 |
* 參考價格
- RS庫存編號:
- 328-811
- 製造零件編號:
- P6700-2110020
- 製造商:
- West Instruments
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | West Instruments | |
| Product Type | Controller | |
| Output Type | Linear | |
| Number of Inputs | 1 | |
| Number of Outputs | 3 | |
| Maximum Current | 5A | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Control Type | Limit Controller | |
| Maximum Supply Voltage | 240V | |
| Digital Comms | RS485, 1200 to 19200 Baud | |
| Maximum Voltage | 240V | |
| Display Type | 4 digit LED | |
| Width | 48 mm | |
| IP Rating | IP20, IP66 | |
| Standards/Approvals | UL & ULC recognised, FM, CE | |
| Length | 110mm | |
| Series | West 6700 | |
| Input Type | J Type Thermocouple, PT100, V Type Thermocouple | |
| Panel Depth | 48mm | |
| 選取全部 | ||
|---|---|---|
品牌 West Instruments | ||
Product Type Controller | ||
Output Type Linear | ||
Number of Inputs 1 | ||
Number of Outputs 3 | ||
Maximum Current 5A | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Control Type Limit Controller | ||
Maximum Supply Voltage 240V | ||
Digital Comms RS485, 1200 to 19200 Baud | ||
Maximum Voltage 240V | ||
Display Type 4 digit LED | ||
Width 48 mm | ||
IP Rating IP20, IP66 | ||
Standards/Approvals UL & ULC recognised, FM, CE | ||
Length 110mm | ||
Series West 6700 | ||
Input Type J Type Thermocouple, PT100, V Type Thermocouple | ||
Panel Depth 48mm | ||
- COO (Country of Origin):
- GB
The West Instruments Limit Alarm Unit is a programmable safety cut-out designed to protect your process by triggering optional outputs for annunciators and alarms. It features a latched relay that cuts power to the process if safe values are exceeded, ensuring safety. The unit must be reset before the process can resume. It incorporates the improved Plus Series hardware and an intuitive user interface for optimal ease of use.
Jumperless configuration
Auto detected hardware
5 Amp latching limit relay
Modbus and ASCII protocol
Remote reset option
