Jumo 703054 DIN Rail Temperature Controller 2 Input, 2 Output Digital 240V Controller
- RS庫存編號:
- 467-013
- 製造零件編號:
- 703054/8-00-00-00-00-00-00-42/000
- 製造商:
- Jumo
小計（1 件）*
HK$5,542.77
訂單超過 HK$250.00 免費送貨
有庫存
- 4 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 + | HK$5,542.77 |
* 參考價格
- RS庫存編號:
- 467-013
- 製造零件編號:
- 703054/8-00-00-00-00-00-00-42/000
- 製造商:
- Jumo
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Jumo | |
| Output Type | Digital | |
| Product Type | Temperature Controller | |
| Number of Inputs | 2 | |
| Number of Outputs | 2 | |
| Maximum Current | 8A | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -30°C | |
| Control Type | Controller | |
| Terminal Type | Spring Cage Terminal | |
| Maximum Supply Voltage | 240V | |
| Diagnostics | Yes | |
| Digital Comms | Ethernet/Modbus TCP, Profinet Interface, RS485 Modbus RTU | |
| Display Type | 18 Segment LCD, LCD - Dot Matrix | |
| Maximum Voltage | 230V | |
| IP Rating | IP65 | |
| Width | 48 mm | |
| Length | 114.9mm | |
| Standards/Approvals | IEC 60751:2008, ASTM E1751M-15, DIN 43710, DIN EN 60584-1:2014, DIN EN 60751:2009, GOST 6651-2009, GOST R 8.585-2001, IEC 60584-1:2013 | |
| Series | 703054 | |
| Mount Type | DIN Rail | |
| Input Type | Analogue | |
| 選取全部 | ||
|---|---|---|
品牌 Jumo | ||
Output Type Digital | ||
Product Type Temperature Controller | ||
Number of Inputs 2 | ||
Number of Outputs 2 | ||
Maximum Current 8A | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -30°C | ||
Control Type Controller | ||
Terminal Type Spring Cage Terminal | ||
Maximum Supply Voltage 240V | ||
Diagnostics Yes | ||
Digital Comms Ethernet/Modbus TCP, Profinet Interface, RS485 Modbus RTU | ||
Display Type 18 Segment LCD, LCD - Dot Matrix | ||
Maximum Voltage 230V | ||
IP Rating IP65 | ||
Width 48 mm | ||
Length 114.9mm | ||
Standards/Approvals IEC 60751:2008, ASTM E1751M-15, DIN 43710, DIN EN 60584-1:2014, DIN EN 60751:2009, GOST 6651-2009, GOST R 8.585-2001, IEC 60584-1:2013 | ||
Series 703054 | ||
Mount Type DIN Rail | ||
Input Type Analogue | ||
- COO (Country of Origin):
- DE

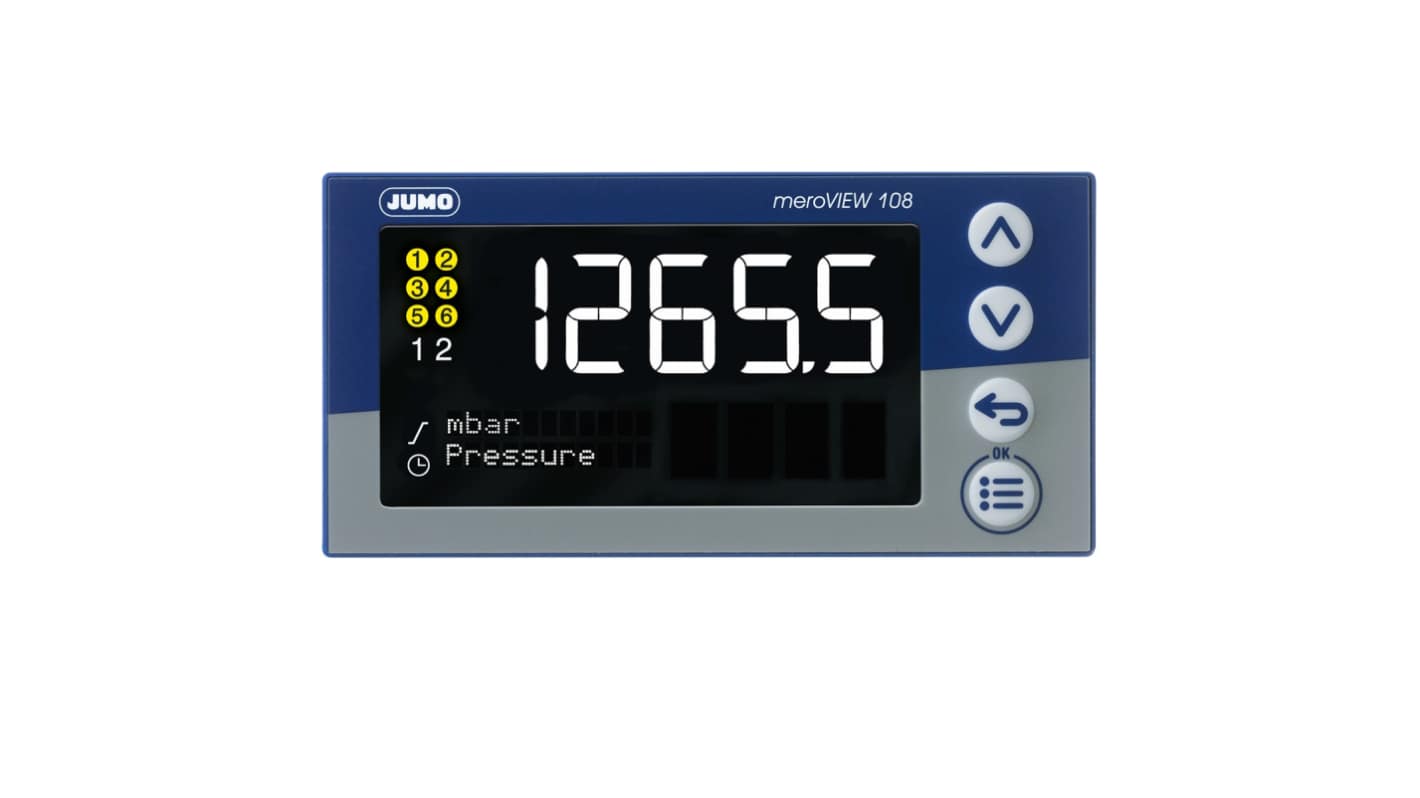

The Jumo meroVIEW Pannelmeter digital indicator is a versatile display device designed for monitoring temperature, pressure, and other process variables in industrial applications. It features clear and structured operation supported by two 18-segment LCD displays, with an optional pixel matrix LCD for enhanced text visualization. Equipped with Ethernet, PROFINET, and RS485 interfaces, as well as multiple input/output options including relay and logic outputs.
Customizable menu structure
IP65 protection
USB host interface
Data logger
