Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 2-Contact, 0.05 s

RS庫存編號:: 328-364
Distrelec 貨號:: 304-11-363
製造零件編號:: H3CR-A8 AC24-48/DC12-48
製造商:: Omron

Omron H3CR Series DIN Rail, Panel Mount Timer Relay, 12 → 48 V dc, 24 → 48V ac, 2-Contact, 0.05 s

可享批量折扣

小計（1 件）*

HK$1,065.20

訂單超過 HK$250.00 免費送貨

有庫存

68 件準備從其他地點送貨
加上 80 件從 2025年12月24日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 24	HK$1,065.20
25 - 49	HK$1,027.90
50 +	HK$989.60

* 參考價格

RS庫存編號:: 328-364
Distrelec 貨號:: 304-11-363
製造零件編號:: H3CR-A8 AC24-48/DC12-48
製造商:: Omron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Supply Voltage	12 → 48 V dc, 24 → 48V ac
	Mounting Type	DIN Rail, Panel Mount
	Mode of Operation	Flicker ON Start, Interval, ON Delay, One Shot
	Time Range	0.05 s → 300h
	Number of Contacts	2
	Number of Timer Functions	Multi Function
	Contact Configuration	DPDT
	Time Increment	Hours, Seconds
	Maximum Current	5A
	Maximum Voltage	125 V dc, 250V ac
	Switch Configuration	DPDT
	Terminal Type	8-Pin Connector
	Minimum Voltage	12 V dc, 24 V ac
	Power Supply	External
	Width	48mm
	Maximum Operating Temperature	+55°C
	Length	48mm
	Series	H3CR
	Depth	81.6mm
	Time Delay	0.1s
	Contact Material	Ag Alloy
	Minimum Operating Temperature	-10°C

	選取全部
	品牌 Omron
	Supply Voltage 12 → 48 V dc, 24 → 48V ac
	Mounting Type DIN Rail, Panel Mount
	Mode of Operation Flicker ON Start, Interval, ON Delay, One Shot
	Time Range 0.05 s → 300h
	Number of Contacts 2
	Number of Timer Functions Multi Function
	Contact Configuration DPDT
	Time Increment Hours, Seconds
	Maximum Current 5A
	Maximum Voltage 125 V dc, 250V ac
	Switch Configuration DPDT
	Terminal Type 8-Pin Connector
	Minimum Voltage 12 V dc, 24 V ac
	Power Supply External
	Width 48mm
	Maximum Operating Temperature +55°C
	Length 48mm
	Series H3CR
	Depth 81.6mm
	Time Delay 0.1s
	Contact Material Ag Alloy
	Minimum Operating Temperature -10°C

登入下載 CAD 模型

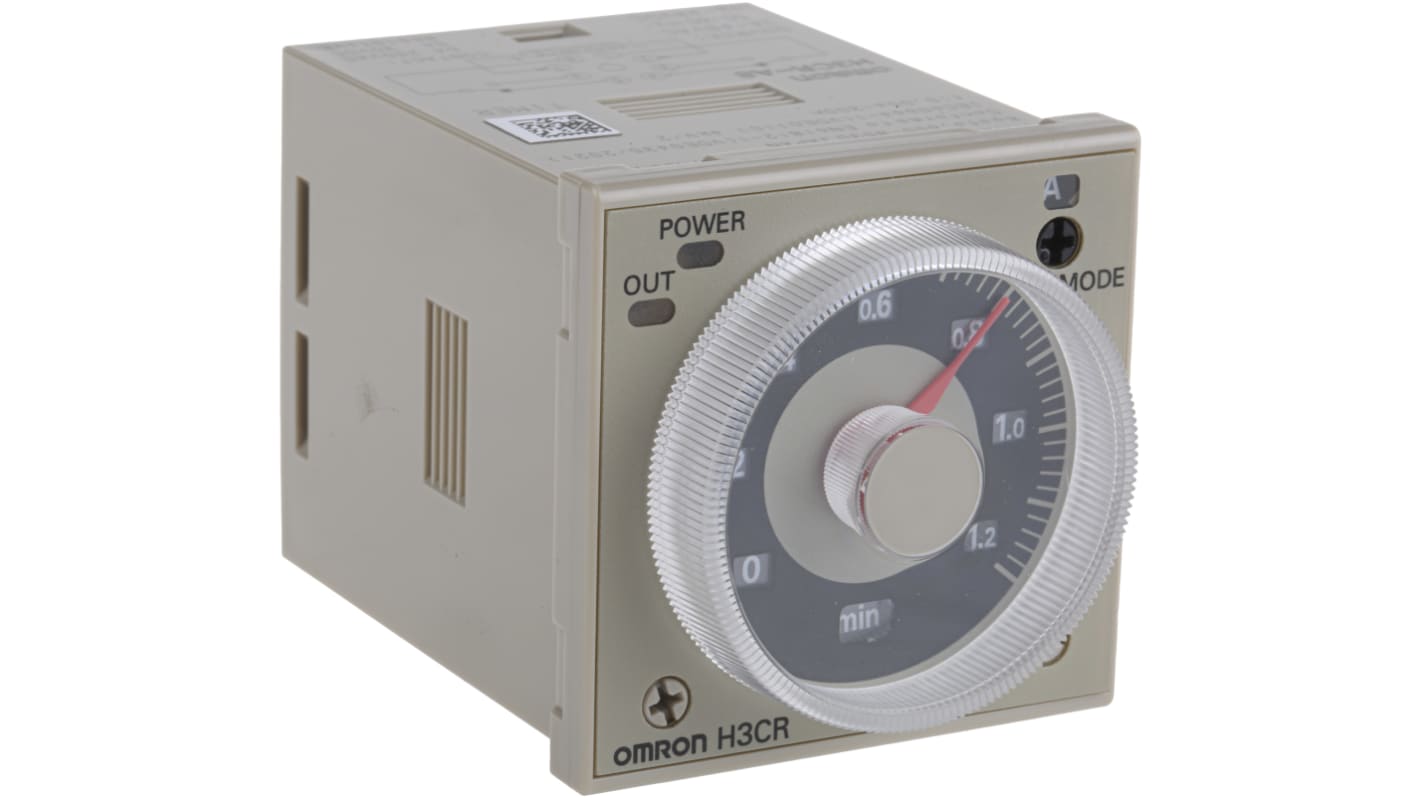

OMRON Timer Relay, 125V DC/250V AC Voltage Rating, 5A Current Rating - H3CR Series - H3CR-A8 AC24-48/DC12-48

Want to pace your control processes and boost efficiency? Grab this timer relay from OMRON. It accurately times when applications like assembly conveyors, lighting installations and medical equipment start, stop or pause. For versatility, this multi-function unit performs different tasks, including flicker on/off starts, intervals and signal on/off delays. Thanks to a wide timing range between 0.05 seconds and 300 hours, it's a cinch to customise settings for your operation. You can install the device on a panel or simply clip it onto a DIN rail in a snap.

Features & Benefits

• Intuitive programming makes it easy to use
• LED indicator shows power and contact status, making troubleshooting easy
• Time ring helps with accurate settings to keep operations on point

Applications

• Manufacturing lines
• Medical imaging systems
• HVAC installations
• Industrial kitchens

How much installation space does this timer relay need?

With dimensions of 48 (L) x 48 (W) x 81.6mm (D), it's a space-saver that fits into compact setups.

Can I use this timer relay with heavy-duty applications?

Yes, it holds up against vibrations and shocks to reduce accidental disconnections and service interruptions.
